MDR-RF830
Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or
less are not indicated except for electrolytics and tantalums.
• All resistors are in Ω and
1
/
4
W or less unless otherwise specified.
•
¢
: internal component.
• U : B+ Line.
• H : adjustment for repair.
• Power voltage is dc 3 V and fed with regulated dc power supply
from battery terminal.
• Voltages are dc with respect to ground under no-signal conditions.
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal production toler-
ances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production toler-
ances.
• Circled numbers refer to waveforms.
• Signal path.
F
— 9 — — 10 —
r
WAVEFORM
1
IC301 @¡
VOLT/DIV : 2m V AC
TIME/DIV : 20 µsec
10mVp-p
20.4
µ
sec

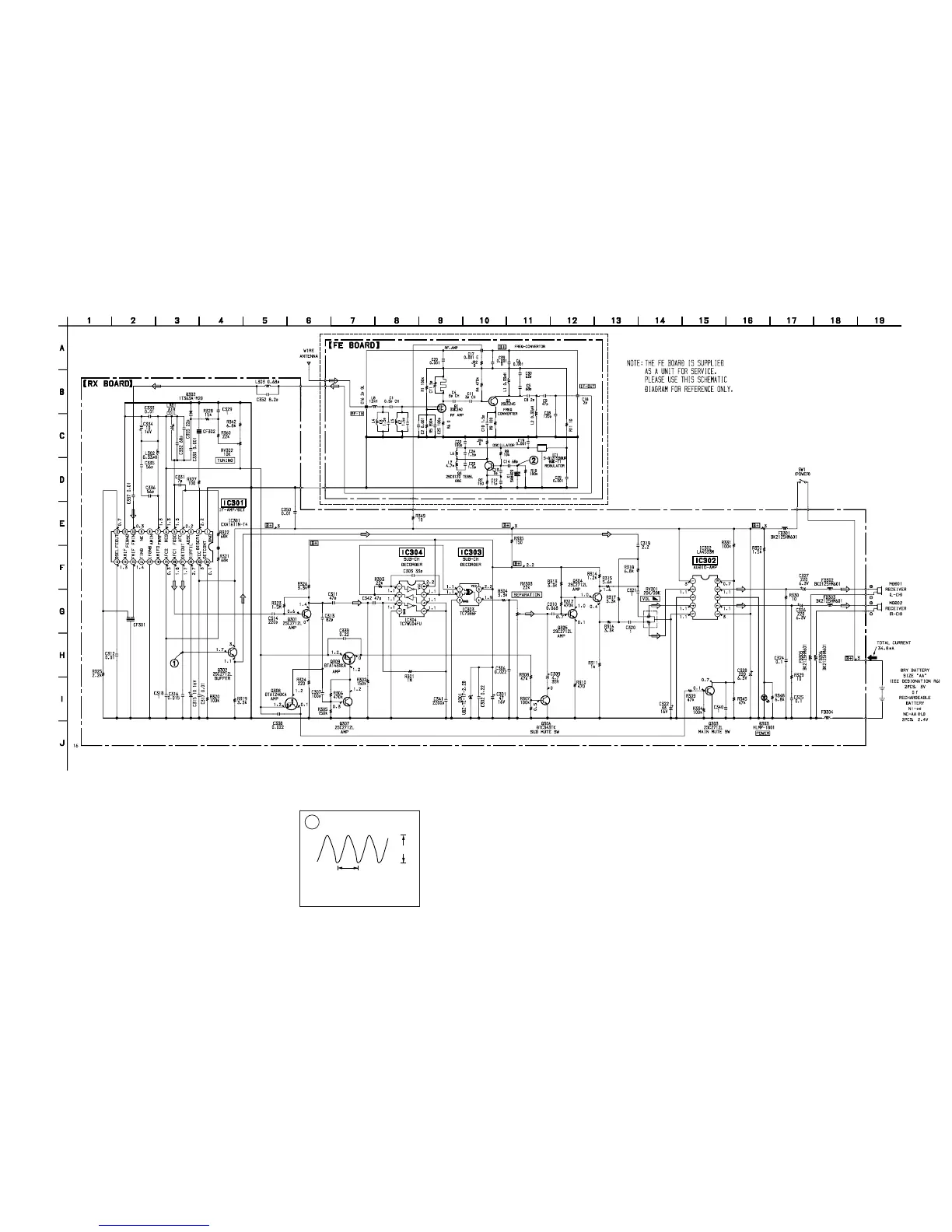

3.2 SCHEMATIC DIAGRAM • Refer tp page 6 IC Block Diagrams.
To Next Page
