Sony MEX-BT3950U Service Manual

MEX-BT39UW/BT3900U/BT3950U
13

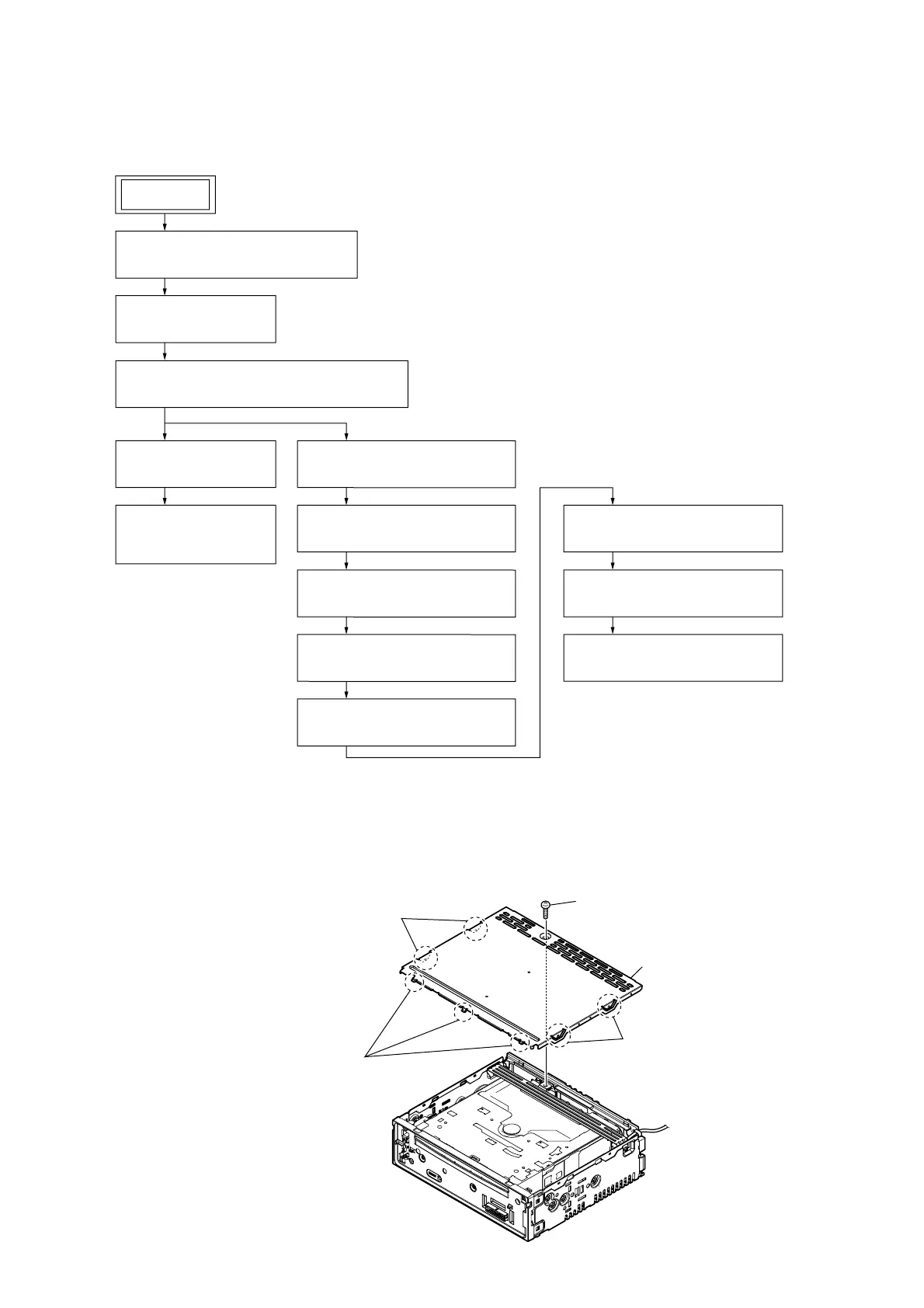

SECTION 3
DISASSEMBLY
• This set can be disassembled in the order shown below.
3-1. DISASSEMBLY FLOW
Note: Follow the disassembly procedure in the numerical order given.
3-2. COVER
3-2. COVER
(Page 13)
3-3. CD MECHANISM DECK (MG-101P-188//Q)
(Page 14)
3-4. ANTENNA BOARD
(Page 14)
3-5. MAIN BOARD
(WITH BT BOARD)
(Page 15)
SET
3-6. SERVO BOARD
(Page 15)
3-7. CHASSIS (T) SUB ASSY
(Page 16)
3-8. ROLLER ARM ASSY
(Page 16)
3-9. CHASSIS (OP) ASSY
(Page 17)
3-11. SLED MOTOR ASSY
(Page 18)
3-12. OPTICAL PICK-UP SECTION
(Page 19)
3-13. OPTICAL PICK-UP
(Page 19)
3-10. CHUCKING ARM SUB ASSY
(Page 17)
FRONT PANEL SECTION
Note:
Illustration of disassembly is omitted.
1 screw
(PTT2.6 u 6)
2 two bosses
3 three claws
2 two bosses
4 cover

Sony MEX-BT3950U Specifications

General

Brand	Sony
Model	MEX-BT3950U
Type	Car Receiver
Bluetooth	Yes
Bluetooth Functions	Hands-free calling, Audio streaming
USB Port	Yes
Auxiliary Input	Yes
Audio Formats Supported	MP3, WMA, AAC
Tuner	Yes
Tuner Bands	AM/FM
Display Type	LCD
Equalizer	Yes
Panel Type	Detachable Faceplate
CD Player	Yes
Maximum Output Power / Channel Qty	52 Watts x 4 Channels
RMS Power Output	17W
Media Type	USB
Steering Wheel Control	Yes
Display	Single-line
