Sony MEX-BT3950U Service Manual

MEX-BT39UW/BT3900U/BT3950U
18

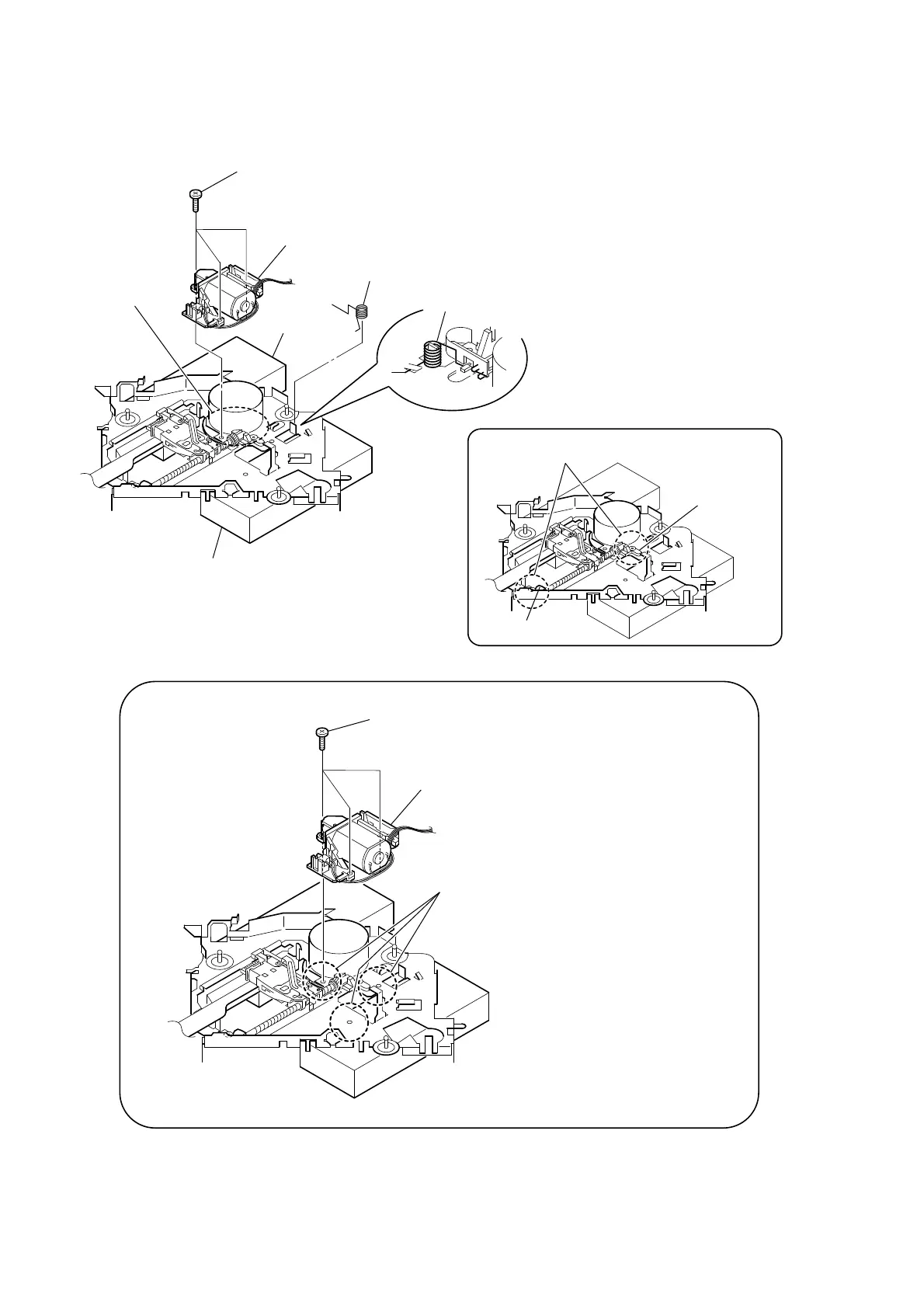

3-11. SLED MOTOR ASSY
3 sled motor assy
sled motor assy
1 spring
spring
stand
stand
turn table
2 three serration screws
(M 2 u 3)
three serration screws
(M 2 u 3)
bearing (F)
bearing (R)
Note 1:
Place the stand with care not to touch the turn table.
Note 2:
Never remove these parts since they were adjusted.
Note 3:
Take care to prevent the chassis from being bent
when tightening the three machine screws.
1RWHIRU$VVHPEO\
–ERWWRPVLGHYLHZ–
–ERWWRPVLGHYLHZ–
–ERWWRPVLGHYLHZ–
