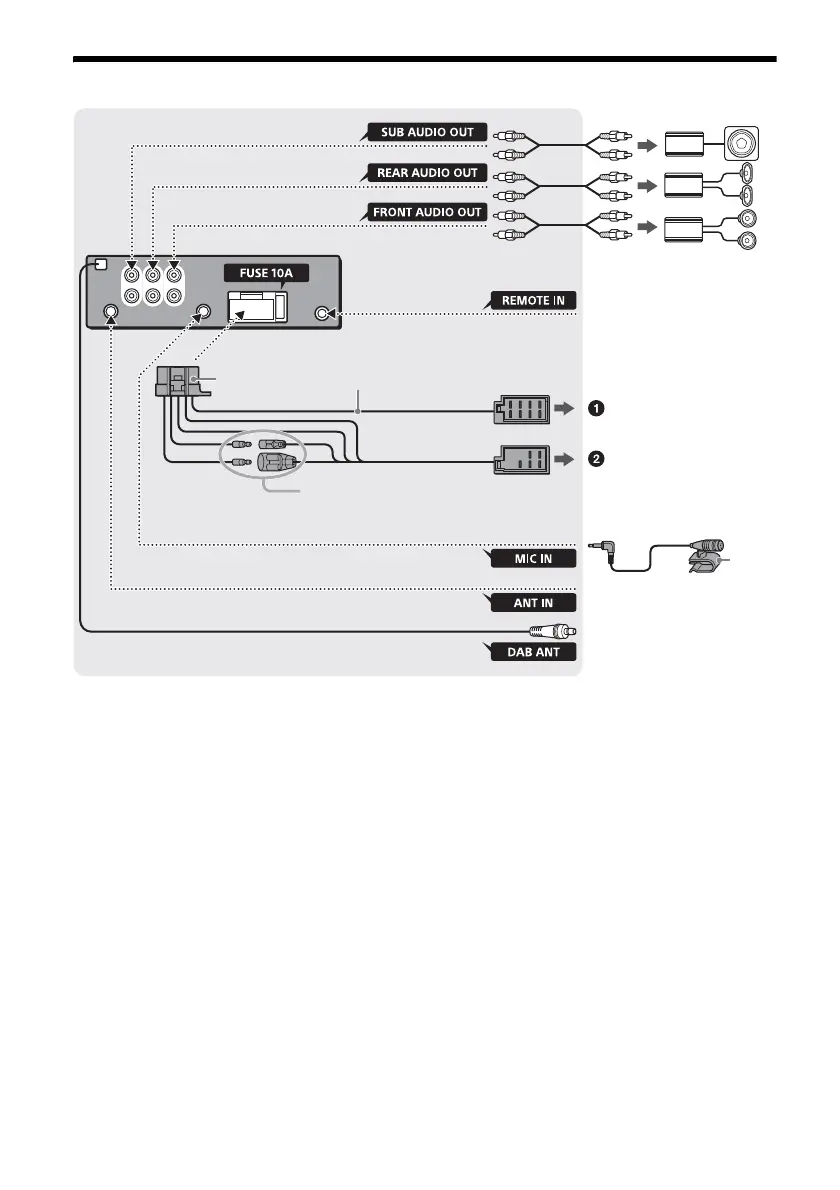

Connection
*1 Not supplied
*2 Speaker impedance: 4 – 8 × 4
*3 RCA pin cord (not supplied)
*4 Depending on the type of car, use an adaptor for a
wired remote control (not supplied).
For details on using the wired remote control, see
“Using the wired remote control” (page 33).
*5 Depending on the type of car, use an adaptor (not
supplied) if the antenna (aerial) connector does not
fit.
*6 Whether in use or not, route the microphone input
cord such that it does not interfere with driving
operations. Secure the cord with a clamp, etc., if it is
installed around your feet.
For details on installing the microphone, see
“Installing the microphone” (page 33).
*7 Set [SET ANT-PWR] to [ON] (default) or [OFF]
depending on the type of DAB antenna (aerial)
(page 19).
Max. supply current 0.1 A
*
6
from a wired remote control
(not supplied)*
4
from a car antenna (aerial)*
5
*
3
*
3
*
3
Subwoofer*
1
Power amplifier*
1
For details, see “Making
connections” (page 32).
*
2
from DAB antenna (aerial)
(not supplied)*
7
See “Power connection diagram”
(page 32) for details.
