Sony MHC-D7 User Manual

MICROFILM

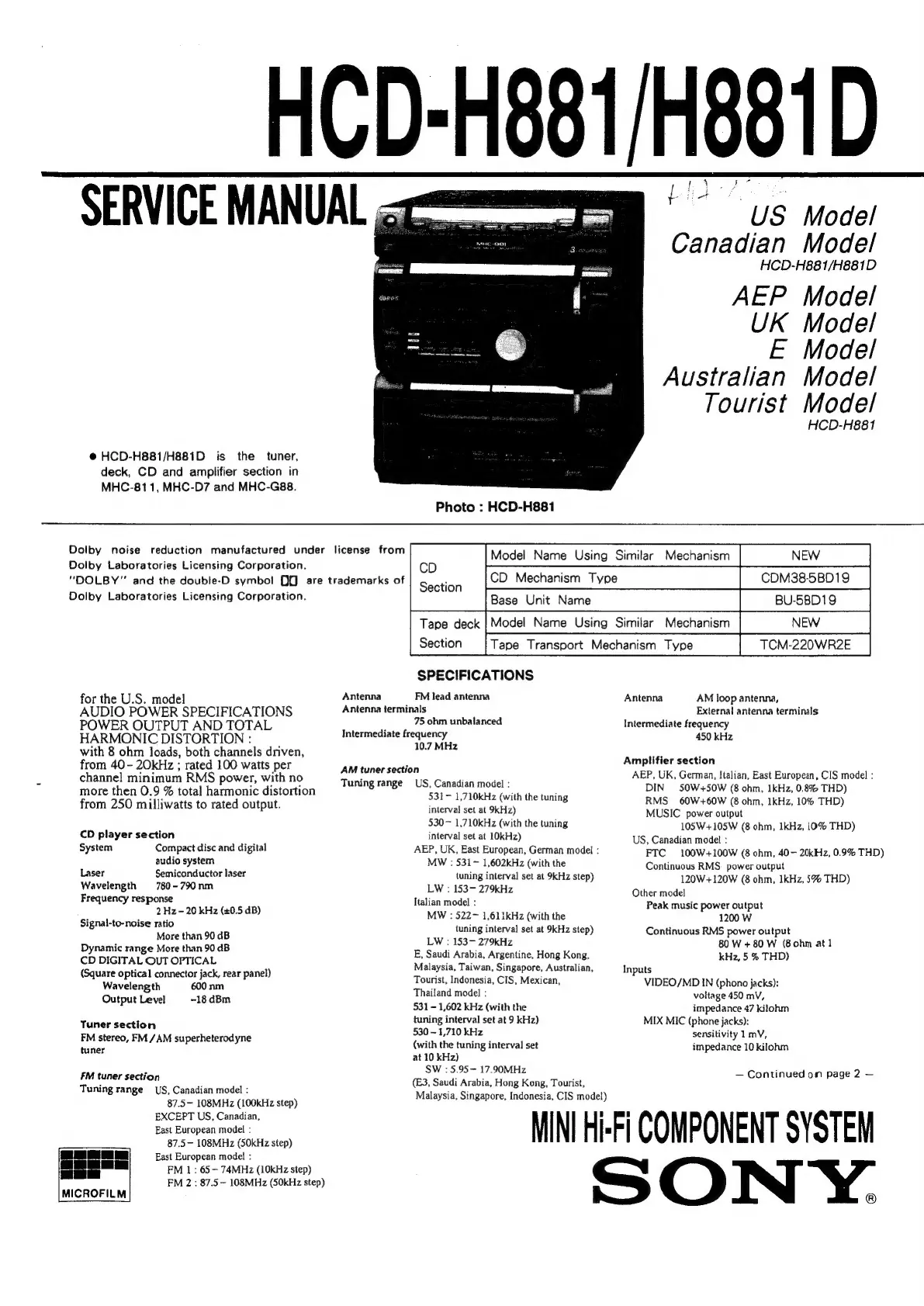

HCD-H881/H881D
RVC
ANA
—
@ HCD-H881/H881D is the tuner,
deck, CD and amplifier section in
MHC-81 1, MHC-D7 and MHC-G8s.
Dolby noise
Dolby Laboratories Licensing Corporation.
“DOLBY” and the double-D symbol 0) are trademarks of
Dolby Laboratories Licensing Corporation.
for the U.S. model
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION :
with 8 ohm loads, both channels driven,
from 40 - 20kHz ; rated 100 watts per
channel minimum RMS power, with no
more then 0.9 % total harmonic distortion
from 250 milliwatts to rated output.
CD player section
System Compact disc and digital
audio system
Laser Semiconductor laser
Wavelength 780-790 nm
Frequency response
2Hz- 20 kHz (+0.5 dB)
Signal-to-noise ratio
More than 90 dB
Dynamic range More than 90 dB
CD DIGITAL OUT OPTICAL
(Square optical connector jack, rear panel)
Wavelength 600 nm
Output Level -18 dBm
Tuner section
FM stereo, FM /AM superheterodyne
tuner
FM tuner section
Tuning range US, Canadian model :
87.5- 108MHz (100kHz step)
EXCEPT US, Canadian,
East European model :
87.5- 108MHz (50kHz step)
East European model :
FM 1 : 65— 74MHz (10kHz step)
FM 2: 87.5~ 108MHz (50kHz step)
reduction manufactured under license from
MHe-881
Photo : HCD-H881
Tape deck
Section
SPECIFICATIONS
Antenna FM lead antenna
Antenna terminals
75 ohm unbalanced
Intermediate frequency
10.7 MHz
AM tuner section
Tuning range US, Canadian model :
531- 1,710kHz (with the tuning
interval set at 9kHz)
530- 1,710kHz (with the tuning
interval set at 10kHz)
AEP, UK, East European, German model :
MW : 53i- 1,602kHz (with the
tuning interval set at 9kHz step)
LW : 153- 279kHz
Italian model :
MW : 522~ 1,611kHz (with the
tuning interval set at 9kHz step)
LW : 153- 279kHz
E, Saudi Arabia, Argentine, Hong Kong,
Malaysia, Taiwan, Singapore, Australian,
Tourist, Indonesia, CIS, Mexican,
Thailand model :
531 - 1,602 kHz (with the
tuning interval set at 9 kHz)
530 - 1,710 kHz
(with the tuning interval set
at 10 kHz)
SW :5.95- 17.90MHz
(E3, Saudi Arabia, Hong Kong, Tourist,
Malaysia, Singapore, Indonesia, CIS model)
an Model Name Using Similar Mechanism
, CD Mechanism Type CDM38-5BD19
Section
ausaDI9
Model Name Using Similar Mechanism
Tape Transport Mechanism Type TCM-220WR2E
hear Ae
US Model
Canadian Model
HCD-H881/H881D
AEP Model
UK Model
E Model
Australian Model
Tourist Model
HCD-H881
Antenna AM loop antenna,
External antenna terminals
Intermediate frequency
450 kHz
Amplifier section
AEP, UK, German, Italian, East European, CIS model :
DIN 50W+50W (8 ohm, 1kHz, 0.8% THD)
RMS 60W+60W (8 ohm, 1kHz, 10% THD)
MUSIC power output
105W+105W (8 ohm, 1kHz, 10% THD)
US, Canadian model :
FTC 100W+100W (8 ohm, 40- 20kHz, 0.9% THD)
Continuous RMS _ power output
120W+120W (8 ohm, 1kHz, 5% THD)
Other model
Peak music power output
1200 W
Continuous RMS power output
80 W + 80 W (8 ohm atl
kHz, 5 % THD)
Inputs
VIDEO/MD IN (phono jacks):
voltage 450 mV,
impedance 47 kilohm
MIX MIC (phone jacks):
sensitivity 1 mV,
impedance 10 kilohm
— Continued on page 2 —
MINI HiFi COMPONENT SYSTEM
SONTY.

Sony MHC-D7 Specifications

General

Brand	Sony
Model	MHC-D7
Category	Stereo System
Language	English
