Sony MHC-RV6/RV5 - Connecting Speakers and Antennas

Getting Started
7
GB
AM loop antenna
Extend the FM lead antenna
horizontally

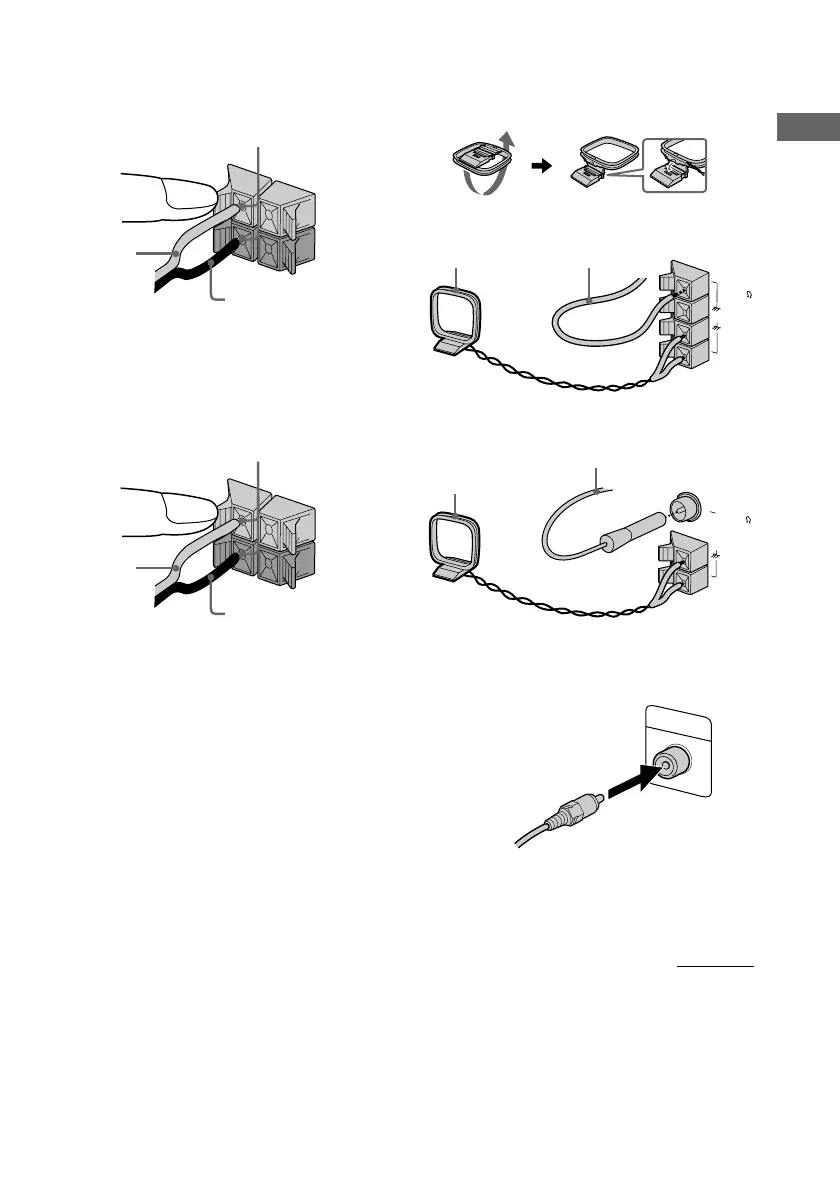

1 Connect the speakers.
Connect the speaker cords to the SPEAKER
jacks as shown below.
R
+
L
+
–
Insert only the stripped portion
Red/Solid
(3)
Black/Stripe (#)
3 Connect the FM/AM antennas.
Set up the AM loop antenna, then connect
it.
Jack type A
F
M
7
5
A
M
2 For MHC-RV6
Connect the surround speakers.
Connect the speaker cords to the
SURROUND SPEAKER jacks as shown
below.
Insert only the stripped portion
R
+
L
+
–
Red/Solid
(3)
Black/Stripe (#)
For MHC-RV5
Go to the procedure 3.
AM loop antenna
Extend the FM lead antenna
horizontally
Jack type B
AM
FM75
COAXIAL
4 Connect the video input jack of your TV
to the VIDEO OUT jack with the
supplied video cable.
VIDEO OUT
When using a TV
Turn on the TV and select the video input so
that you can view the pictures from this system.
continued
