ICP-X7000
2-23 (E)

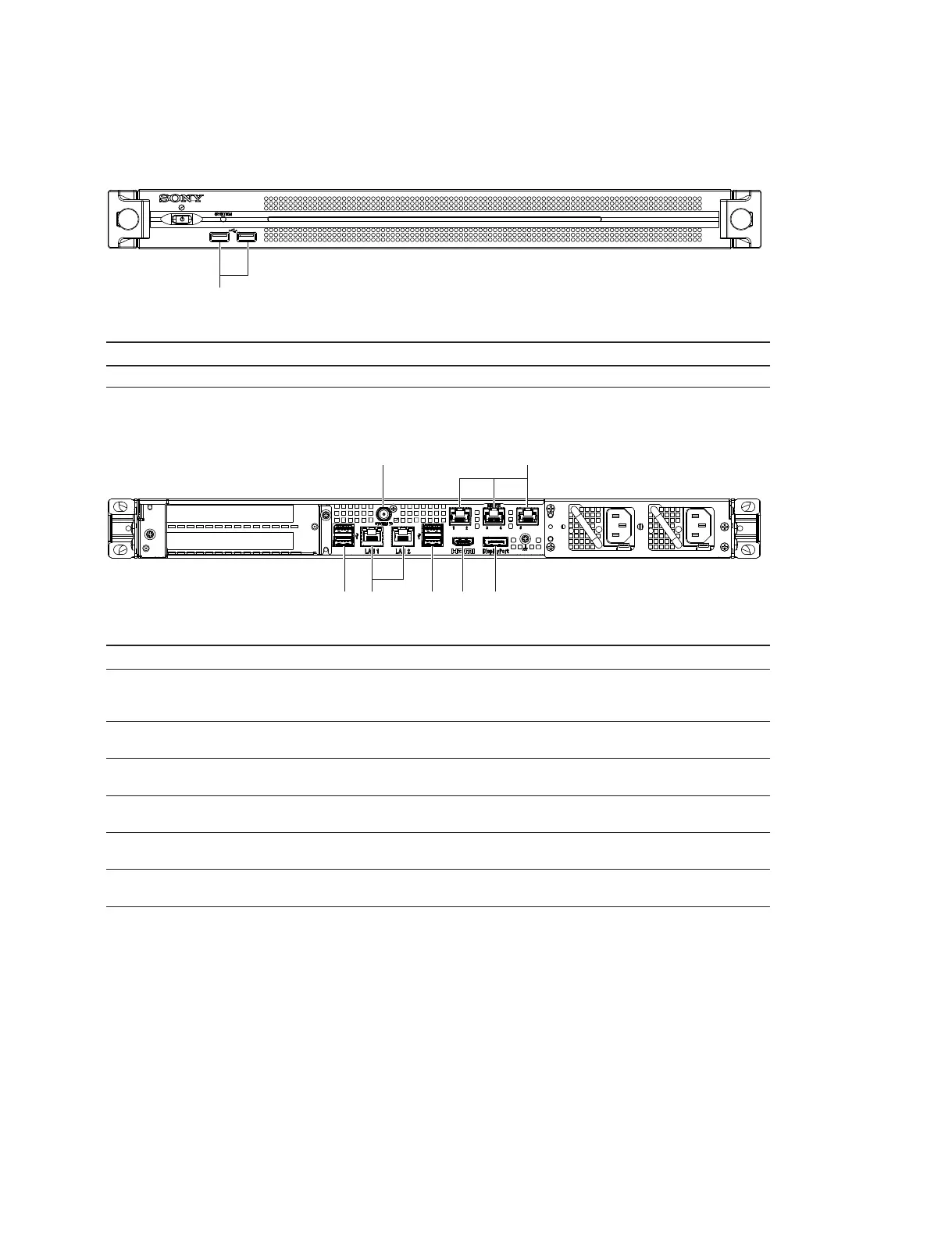

2-4-4. Connector Input/Output Signals
Front panel
1
No. Name Remarks
1
USB Super Speed USB (USB 3.0) Type A x 2 Power delivery supported
Rear panel
23 54
67
2
No. Name Remarks
2
USB Super Speed USB (USB 3.0) Type A (4)
Among four, right lower connector supports to the power supply. (900 mA) Others
do not support to the power supply.
3
LAN1/2 RJ-45 8-pin (2)
1000BASE-T, 100BASE-TX
4
HDMI Type A (1)
HDMI Ver. 1.4a, 1920 x 1200 maximum resolution, 60 Hz
5
DisplayPort DisplayPort (1)
Not used
6
Remote 1/2, 3/4, 5 RJ-45 (3)
Not used
7
SYSTEM TC BNC (1)
Not used
