Sony MKS-X7700 Installation Manual

ICP-X7000
1-36 (E)
1-14. Description of On-board Switches and LEDs
n
The number shown in the parentheses ( ) indicated the address on the circuit board.
1-14-1. MKS-X2700/MKS-X7700
CA-90 board
<LED>
D201 (C-2): 12 V
+12 V power supply status indication.
Lit when the +12 V power is supplied.
If this LED does not light, the fuse may have blown.
D402 (C-2): 1.0 V-1
+1.0 V-1 power supply status indication.
Lit when the +1.0 V power is supplied.
D403 (C-2): 1.0 V-2
+1.0 V-2 power supply status indication.
Lit when the +1.0 V power is supplied.
D405 (C-2): 1.2 V
+1.2 V power supply status indication.
Lit when the +1.2 V power is supplied.
D407 (D-2): 1.5 V
+1.5 V power supply status indication.
Lit when the +1.5 V power is supplied.
D409 (D-2): 2.5 V
+2.5 V power supply status indication.
Lit when the +2.5 V power is supplied.

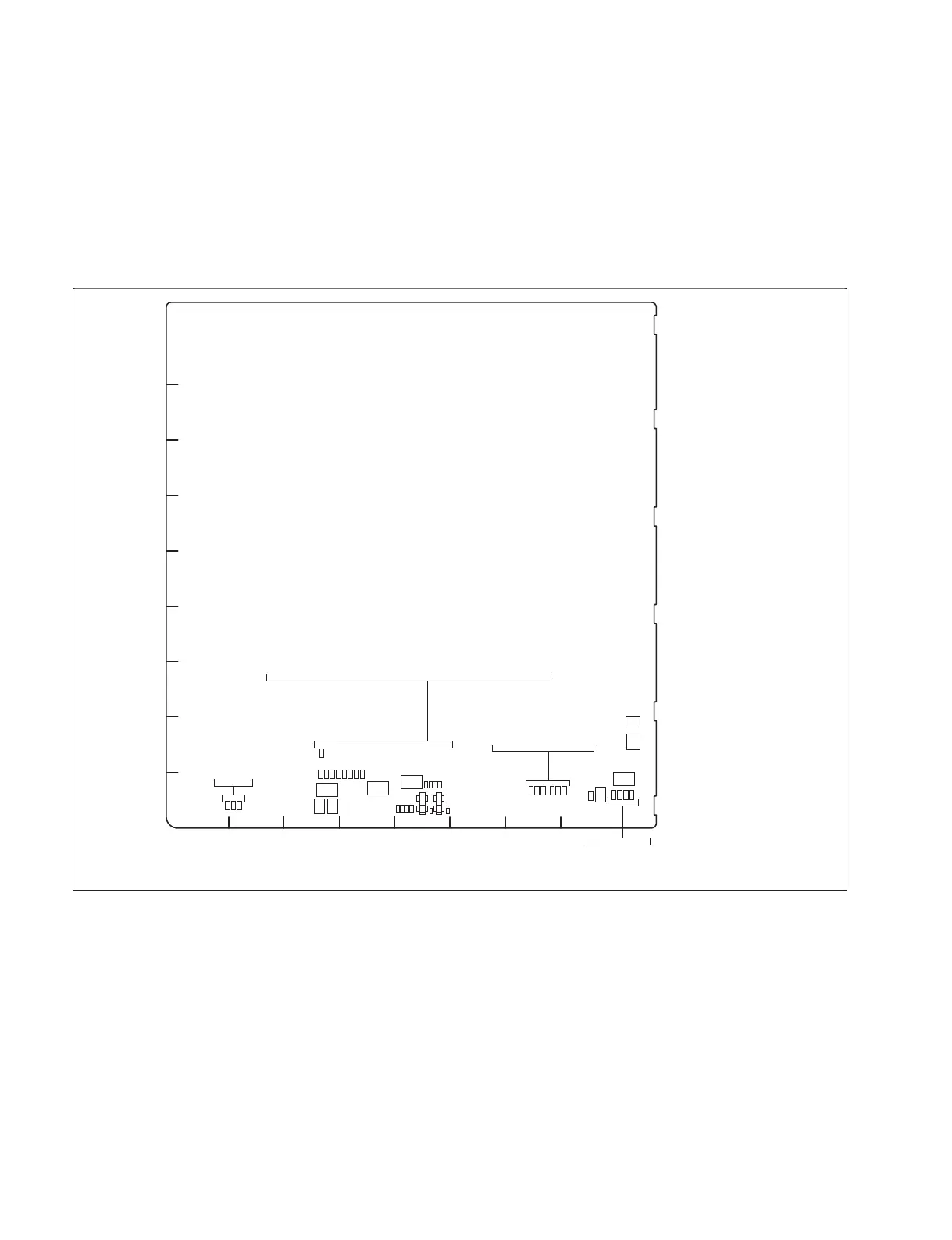

CA-90 board (Side A)
D201
D402 D403 D405 D407 D409 D410
D411
D412
D501
D1601
D1602 D1603 D1604 D1605
D1701 D1702 D1703 D3701
D3702 D3703 D3704 D3705
D3801 D3802 D3803 D3804
D3805
D3806
D3807
D3808
D3809
D3810
D3811
D3812
D3813
D3814
D3815
D3816
D3817
D3818
D3819
D3820
D3903
D4101 D4102 D4103
S502
S1301
S1601
S1602
S2602
S3501
S3701
S3801
S3802
1
2
3
4
5
6
7
8
9
ABCDEFG H
