14

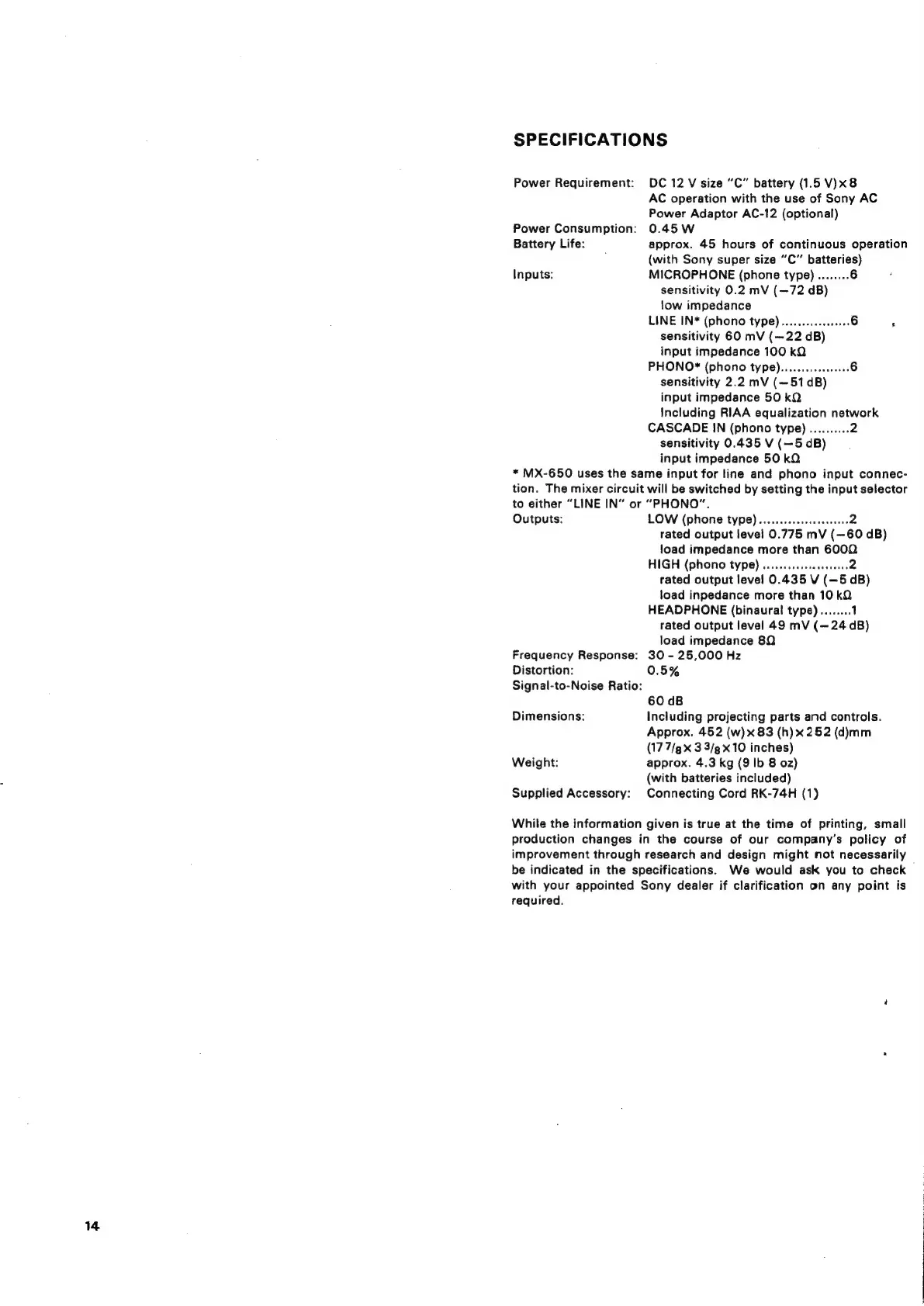

SPECIFICATIONS
Power Requirement: DC 12 V size “C” battery (1.5 V)x8
AC operation with the use of Sony AC
Power Adaptor AC-12 (optional)
Power Consumption: 0.45 W
Battery Life: approx. 45 hours of continuous operation
(with Sony super size “C” batteries)
Inputs: MICROPHONE (phone type)........ 6
sensitivity 0.2 mV (—72 dB)
low impedance
LINE IN* (phono type)............... 6 F
sensitivity 60 mV (—22 dB)
input impedance 100 kQ
PHONO* (phono type)..............05 6
sensitivity 2.2 mV (~—51dB)
input impedance 50 kQ
Including RIAA equalization network
CASCADE IN (phono type).......... 2
sensitivity 0.435 V (—5 dB)
input impedance 50 kQ
* MX-650 uses the same input for line and phono input connec-
tion. The mixer circuit will be switched by setting the input selector
to either “LINE IN” or “PHONO”.
Outputs: LOW (phone type)............:scesereee 2
rated output level 0.775 mV (~—60 dB)
load impedance more than 6000.
HIGH (phono type) ...........eccceene 2
rated output level 0.435 V (—5 dB)
load inpedance more than 10 kQ
HEADPHONE (binaural type)........ 1
rated output level 49 mV (— 24 dB)
load impedance 80
Frequency Response: 30 - 25,000 Hz
Distortion: 0.5%
Signal-to-Noise Ratio:
60 dB
Dimensions: Including projecting parts and controls.
Approx. 452 (w) x 83 (h)x 252 (d)mm
(17 7/g x 3 3/gx10 inches)
Weight: approx. 4.3 kg (9 lb 8 oz)
(with batteries included)
Supplied Accessory: Connecting Cord RK-74H (1)
While the information given is true at the time of printing, small
production changes in the course of our company’s policy of
improvement through research and design might not necessarily
be indicated in the specifications. We would ask you to check
with your appointed Sony dealer if clarification on any point is
required.
