MX-710

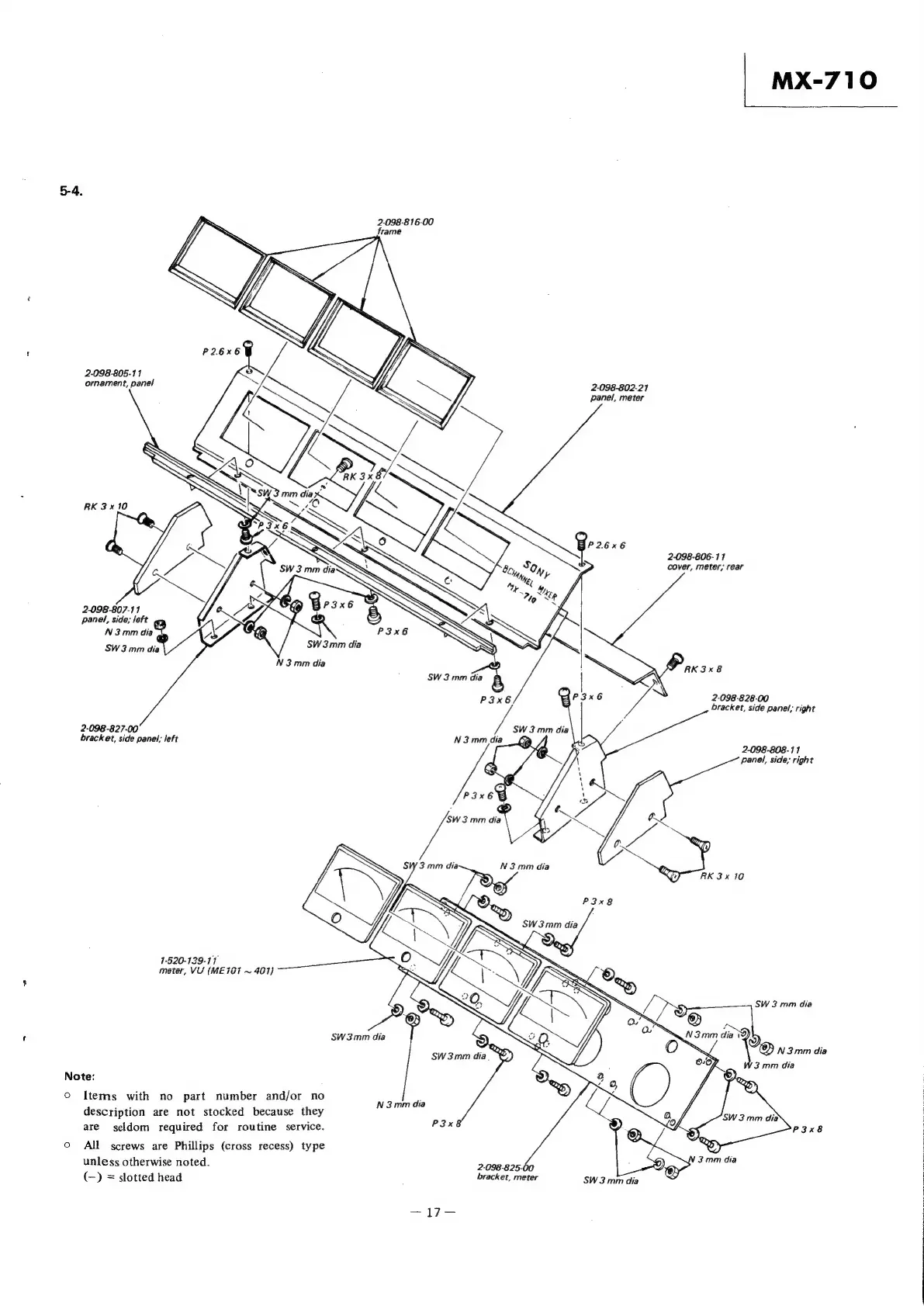

5-4.
2-098-816-00
2-098-805-11
ornament,
panel
2-098-802-21
panel, meter
RK 3x10
2-098-806- 11
cover, meter; rear
2-098-807-11
panel, side; left
N3mm dia Xe
SW3 mm dia
SW3mm dia
RK3x8
2-098-828-00
bracket, side panel, right
2-098-827-00
bracket,
side
panel;
left
2-098-808-11
panel, side; right
RK 3x 10
1-520-139-11
meter, VU (ME7GT ~ 407)
SW 3mm dia
SW3mm dia
Note:
© Items with no part number and/or no
description are not stocked because they
are seldom required for routine service.
N3mm dia
P3x8
© All screws are Phillips (cross recess) type
unless otherwise noted. 2.098-825-b0
(—) = slotted head bracket, meter SW 3mm dia
