MX-710 |

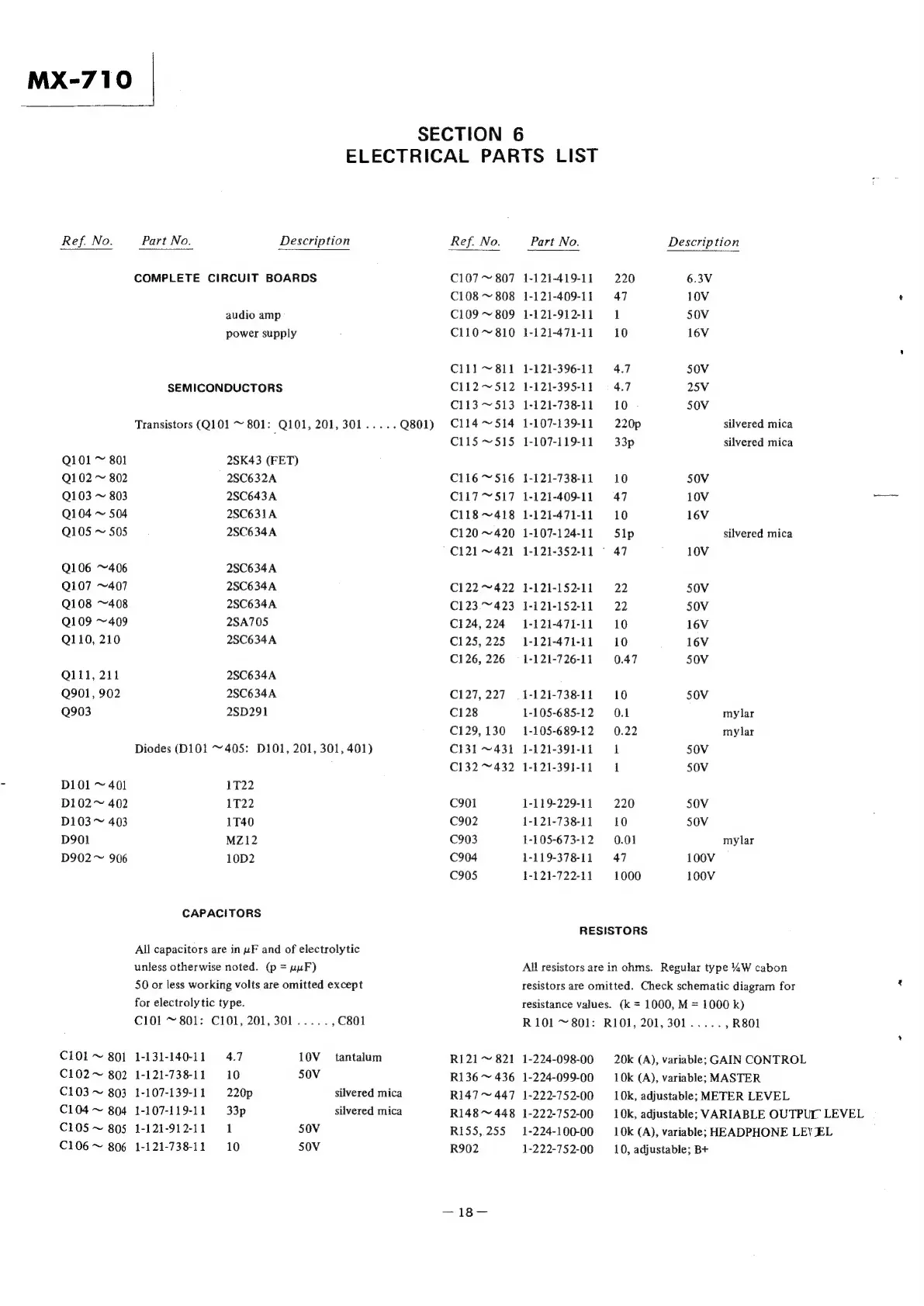

SECTION 6
ELECTRICAL PARTS LIST
Ref. No. Part No, Description
COMPLETE CIRCUIT BOARDS
audio amp
power supply
SEMICONDUCTORS
Transistors (Q101 ~ 801: (Q101, 201,301..... Q801)
Q101 ~ 801 2S8K43 (FET)
Q102 ~ 802 2SC632A
Q103 ~ 803 28C643A
Q104 ~ 504 2SC631A
Q105 ~ 505 28C634A
Q106 ~406 28C634A
Q107 ~407 28C634A
Q108 ~408 2S8C634A
Q109 ~409 2SA705
Q110, 210 2SC634A
Ql, 211 2SC634A
Q901, 902 2SC634A
Q903 28D291
Diodes (D101 ~ 405: D101, 201, 301, 401)
D101 ~ 401 1T22
D102~ 402 1T22
D103 ~ 403 1T40
D901 MZ12
D902 ~ 906 10D2
CAPACITORS
All capacitors are in wF and of electrolytic
unless otherwise noted. (p = puF)
50 or less working volts are omitted except
for electrolytic type.
C101 ~ 801: C101, 201, 301..... , C801
C101 ~ 801 1-131-140-11 4.7 10V_ tantalum
C102~ 802 1-121-738-11 10 50V
C103 ~ 803 1-107-139-11 220p silvered mica
C104~ 804 1-107-119-11 33p silvered mica
C1LOS ~ 805 1-121-912-11 1 SOV
C106 ~ 806 1-121-738-11 10 SOV
Ref. No. Part No. Description
C107 ~ 807 1-121-419-11 220 6.3V
C108 ~ 808 1-121-409-1147 10V
C109 ~ 809 1-121-912-11 1 50V
C110 ~ 810 1-121-471-1110 16V
C111 ~ 811 1-121-396-11 94.7 50V
C112 ~512 1-121-395-11 9 4.7 25V
C113 ~~ 513 1-121-738-11 10 SOV
C114 ~514 1-107-139-11 220p silvered mica
C115 ~515 1-107-119-11 33p silvered mica
C116 ™516 1-121-738-11 10 S0V
C117 ™~ S517 1-121-409-1147 10V
C118 ~418 1-121-471-1110 16V
C120 ~420 1-107-124-11 Sl1p silvered mica
C121 ~421 1-121-352-11 © 47 10V
C122 ~422 1-121-152-1122 S0V
C123. ~423 1-121-152-1122 50V
C124,224 1-121-471-1110 16V
C125,225 1-121-471-1110 16V
C126, 226 = -:1-121-726-11 0.47 50V
C127, 227 = 1-121-738-1110 50V
C128 1-105-685-12 0.1 mylar
C129,130 1-105-689-12 0.22 mylar
C131 ~431 1-121-391-1111 50V
C132 ~432 1-121-391-1111 50V
C901 1-119-229-11 220 50V
C902 1-121-738-1110 50V
C903 1-105-673-12 0.01 mylar
C904 1-119-378-1147 100V
C905 1-121-722-11 1000 100V
RESISTORS
All resistors are in ohms. Regular type 4W cabon
resistors are omitted. Check schematic diagram for
resistance values. (k = 1000, M = 1000 k)
R101 ~ 801: R101, 201, 301..... , R801
R121 ~ 821 1-224-098-00 20k (A), variable; GAIN CONTROL
R136 ~ 436 1-224-099-00 10k (A), variable; MASTER
R147 ~ 447 1-222-752-00 10k, adjustable; METER LEVEL
R148~ 448 1-222-752-00 10k, adjustable; VARIABLE OUTPUL LEVEL
R155,.255 1-224-100-00 —_—10k (A), variable; HEADPHONE LEY EL
R902 1-222-752-00 10, adjustable; B+
