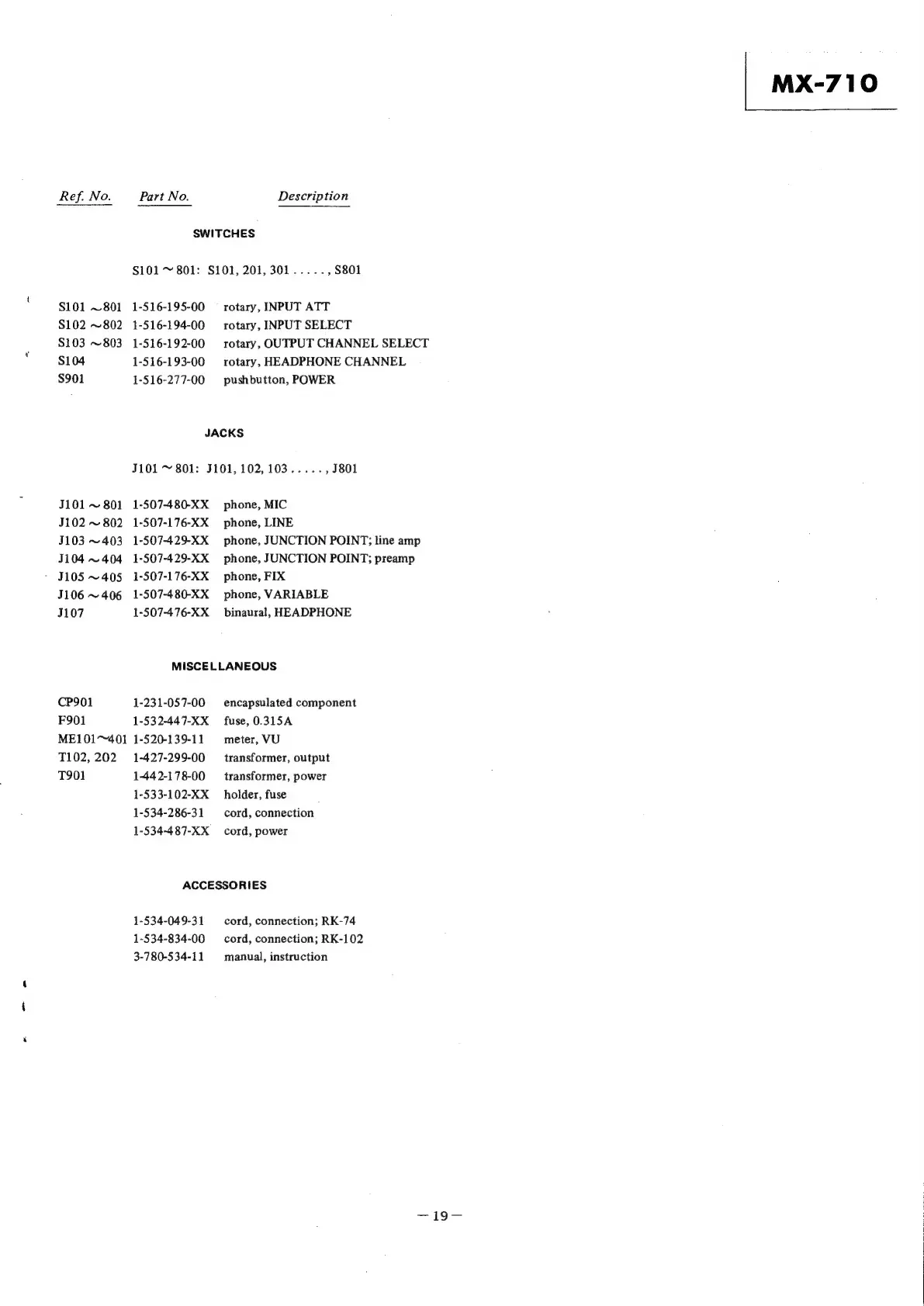

Sony MX-710 - Page 15

Ref. No.
$101 ~801
$102 ~802
S103 ~803
$104
$901
J101 ~ 801
J102 ~ 802
J103 ~403
J104 ~ 404
J105 ~405
J106 ~ 406
J107
CP901
F901
ME101™401
T102, 202
T901
Part No. Description
SWITCHES
$101 ~ 801: S101, 201, 301..... , 5801
1-516-195-00 = rotary, INPUT ATT
1-516-194-00 rotary, INPUT SELECT
1-516-192-00 rotary, OUTPUT CHANNEL SELECT
1-516-193-00 rotary, HEADPHONE CHANNEL
1-516-277-00 pushbutton, POWER
JACKS
J101 ~ 801: J101,102,103..... , J801
1-507-480-XX phone, MIC
1-507-176-XX phone, LINE
1-507-429-XX phone, JUNCTION POINT; line amp
1-507-429-XX phone, JUNCTION POINT; preamp
1-507-176-XX phone, FIX
1-507-480-XX phone, VARIABLE
1-507-476-XX binaural, HEADPHONE
MISCELLANEOUS
1-231-057-00 encapsulated component
1-532-447-XX fuse, 0.315A
1-520-139-11 meter, VU
1-427-299-00 transformer, output
1-442-178-00 transformer, power
1-533-102-XX holder, fuse
1-534-286-31 cord, connection
1-534-487-XX cord, power
ACCESSORIES
1-534-049-31 cord, connection; RK-74
1-534-834-00 cord, connection; RK-102
3-780-534-11 manual, instruction
MX-710
