NW-MS70D
SECTION 4
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.

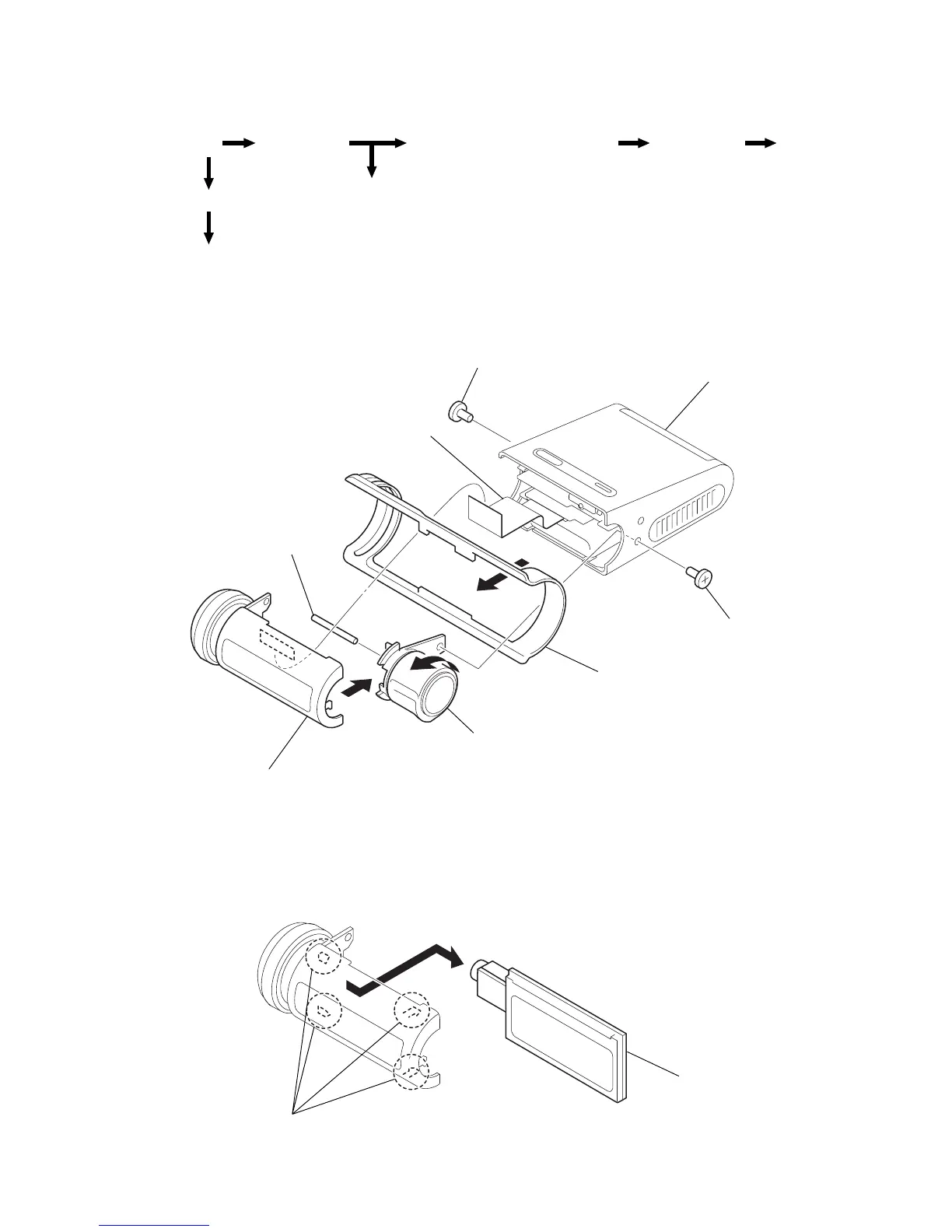

4-1. CASE (U) SUB ASSY, PLAY UNIT
z
The equipment can be removed using the following procedure.
Case (R) ASSY
Case (R) sub ASSY
Set Button (MS) ASSY, chassis (R) ASSY
Case (U) sub ASSY, play unit
MI-MH battery,
POWER board
NAND board,
MAIN board
LCD board
7
3
8
1 Screw (M1.4x3)
4 Cable, flexible flat (20 core)
0 Shaft (play)
6 Case (U) sub ASSY
9 Play unit
5 Hold bumper
2 Screw (M1.4x3
)
Case (R) ASSY
2
1 Screws
3 LCD boar
d
4-2. LCD BOARD
