How to Use Parts Differently.
This series of product uses the two different types of HDD (To type and Hi type).
When replacing the HDD, use the To type parts for the To type HDD, and use the Hi type parts
for the Hi type HDD.
Replace the peripheral parts of HDD with the same type in the same way.

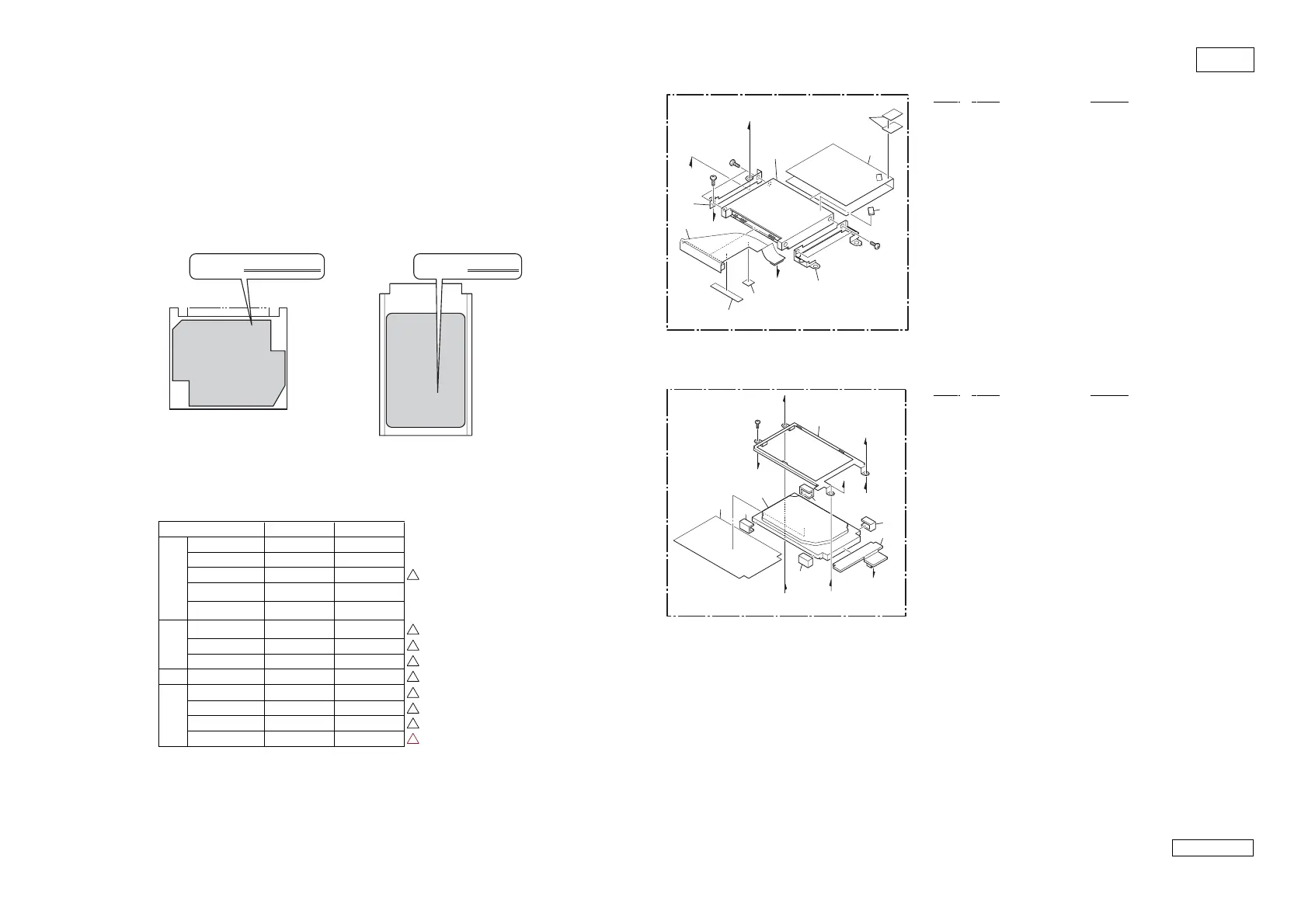

[ How to identify the To and Hi types of parts ]
MODEL NO. MK3004GAH
(Type To)(Type Hi)
MODEL NO. HTC424040F9AT00
123 4-658-789-02 TAPE (HARNESS)
401 A-8117-809-A $ # ASSY HDD 40GB (H, 40) (S)
402 1-689-155-11 PWB, FLEXIBLE PRINT (HDD_H) (Hi)
403 4-674-939-01 SHEET (HDD) (H) (Hi)
404 4-676-896-01 CUSHION HDD (H) (Hi)
* 406 4-673-629-01 BRACKET (HDD) (R) (H)
* 407 4-673-628-01 BRACKET (HDD) (L) (H)
408 4-676-894-01 TAPE HDD FPC L
409 4-676-895-01 TAPE HDD FPC S
B2 4-672-836-11 SCREW, M2 SPECIAL HEAD, EG GRIP (M2X4)
B7 4-679-325-01 PS SCREW M2.5
411 A-8130-165-A $ # ASSY HDD 40GB (T, 40) (S)
412 1-688-245-11 PWB, FLEXIBLE PRINT (HDD) (To)
413 4-674-940-02 SHEET (HDD) (T) (To)
414 4-677-703-01 CUSHION HDD (C) (To)
* 416 4-673-430-02 # BRACKET (HDD) (T)
B2 4-672-836-11 SCREW, M2 SPECIAL HEAD, EG GRIP (M2X4)
Ref. No. Part No. Description
Ref. No. Part No. Description
Type Hi Type To
TR3/B zz
TR3E/B zz
TR3/P zz
TR3/SP∗ zz
TR3/S∗ zz
TR3AP∗ zz
TR3A zz
TR3F zz
EU TR2MP zz
TR3 zz
TR3S z
TR3T z
TR3CN zz
