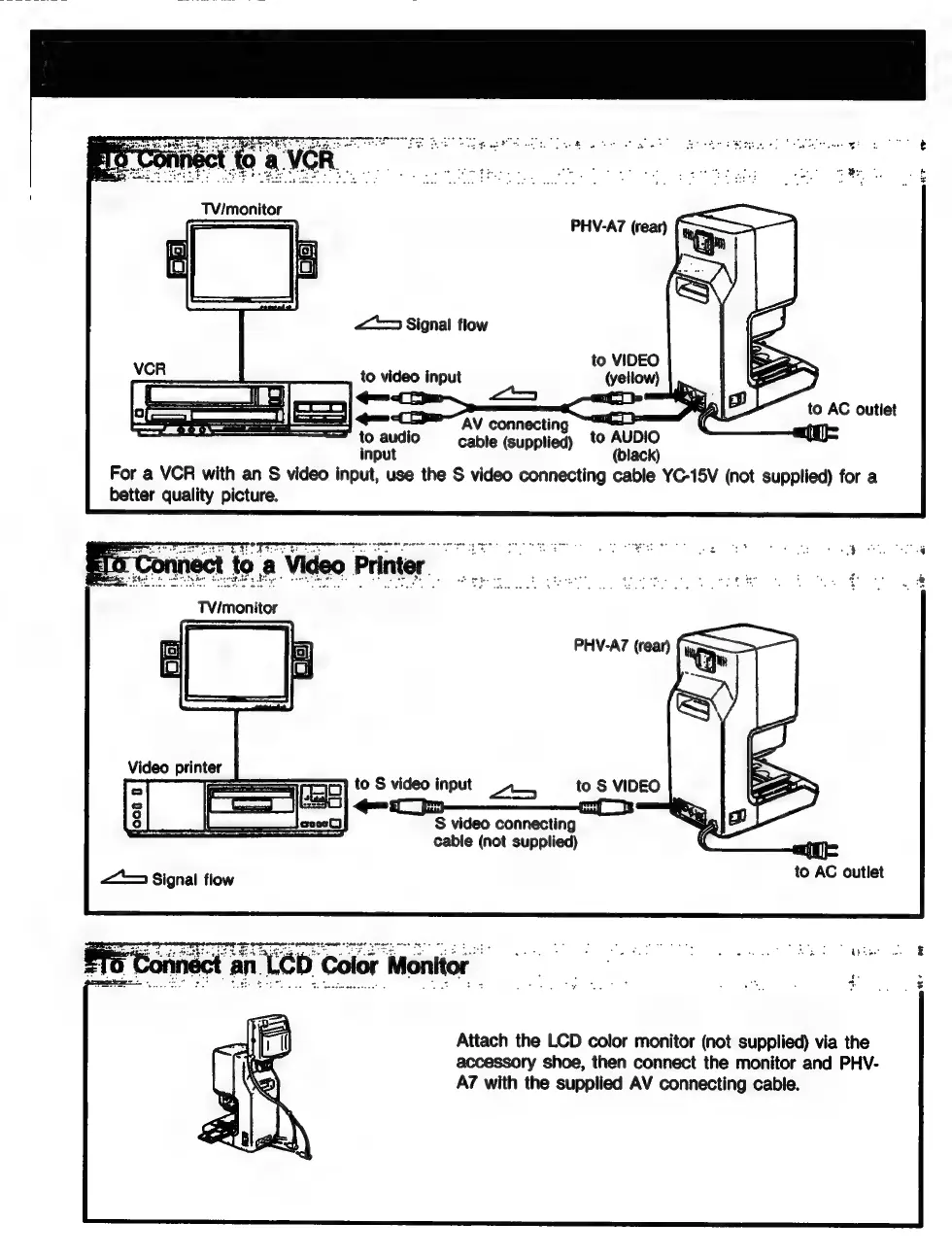

Sony PHV-A7 - Connecting to Video Devices; Connect to VCR for Recording; Connect to Video Printer; Connect External LCD Monitor

PHV-A7 (rear)
<*> Signal flow
to VIDEO
to video bias (yellow)
"AV connectin
input (black)
For a VCR with an S video input, use the S video connecting cable YC-15V (not supplied) for a
better quality picture.
to S video input a5 to S VIDEO
S video connecting
cable (not supplied)
Attach the LCD color monitor (not supplied) via the
accessory shoe, then connect the monitor and PHV-
A7 with the supplied AV connecting cable.
