Sony PMW-EX3 Service Manual

PMW-EX3
2-5

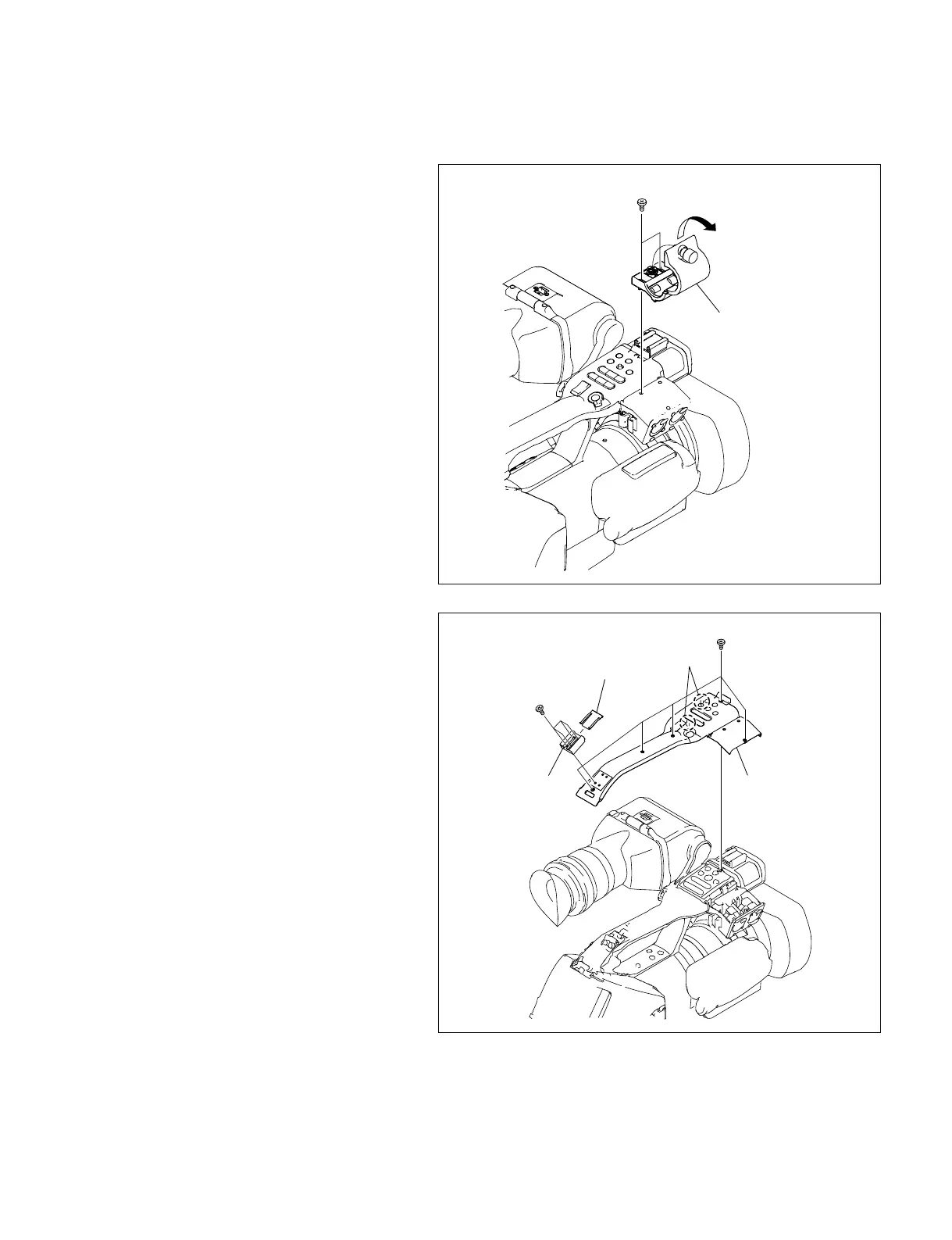

2-2-5. Handle Top Cover Assembly
1. Open the microphone holder assembly.
2. Remove the two screws, and remove the
microphone holder assembly.
Microphone holder
assembly
B2.6 x 6 (Black)
Spring
Claws
Accessory
shoe
M2 x 4 (Black)
M2 x 6
(Black)
Handle top
cover assembly
3. Remove the spring and the four screws (M2
x 6), and remove the accessory shoe.
4. Remove the five screws (M2 x 4). While
disengaging the two claws, remove the
handle top cover assembly.
5. Reinstall the removed parts by reversing the
steps of removal.

Sony PMW-EX3 Specifications

General

Digital zoom	0 x
Optical zoom	14 x
Image stabilizer	Yes
Focal length range	5.8 - 81.2 mm
Focal length (35mm film equivalent)	31.4 - 439 mm
Sensor type	CMOS
Total megapixels	0 MP
Optical sensor size	1/2 \
Display diagonal	3.5 \
Interface	USB
Resolution	1920 x 1080 pixels
Expansion slots	ExpressCard/34 (x 2)
Power requirements	DC 12V
Power consumption (typical)	13.5 W
Camera shutter speed	1/33 - 1/2000 s
Minimum illumination	0.14 lx
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Maximum memory card size	32 GB
Product color	Black
Battery type	BP-U30/BP-U60
Battery life (max)	- h
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Depth	400 mm
Width	250 mm
Height	210 mm
Weight	1900 g
