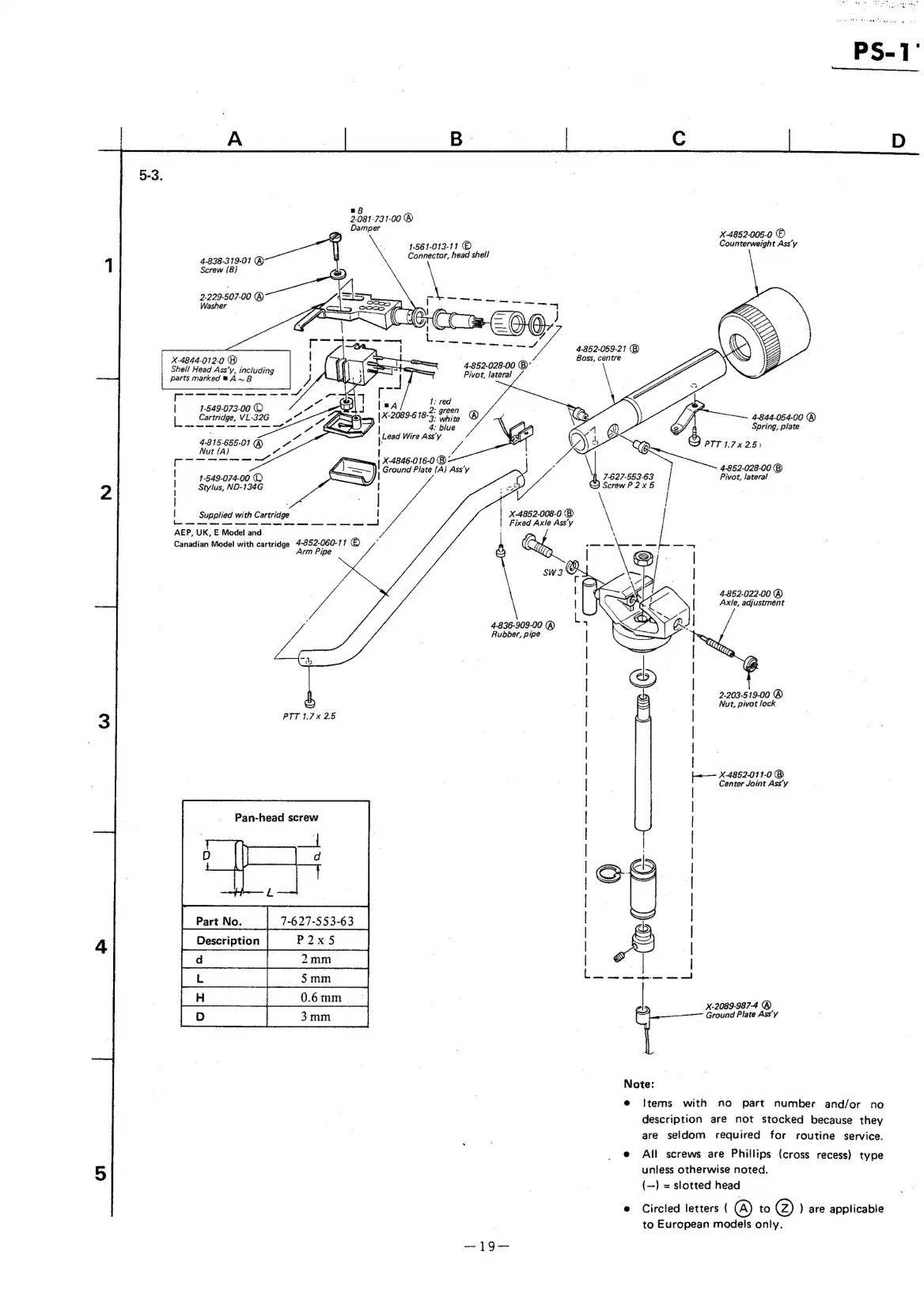

Sony PS-11 - Tonearm Assembly Exploded View

5-3.
a8
2.081-731-00 ®
Damper
4-838-319-01 @®
Screw (B)
2-229-507-00 @
Washer
X-4844-012-0 @
Shell Head Ass’y, including
parts marked © A~B
1-561-013-11 ©
Connector, head shell
a)
X-4852-005-0 ©
Counterweight Ass’y
—— ms
— ao,
— on
— —_
4-852-059-21 @
: Boss, centre
4-852-028-00 8)’
Pivot, lateral
1: red
1-549-073-00 © 2: green
L Cartridge, VL-32G | X-2089-6 78-5. aie: 4-844-054-00 ®)
rt a ati arc a 4: blue Spring, plate
: ead Wire Ass‘
4-815-655-01 ee 7 PTT 1.7x 25)
Nut {A} ! ;
lacancata -— | X-4846-016-0
Ground Plate {A} Ass‘y 4-852-028-00 ®)
1-549-074-00 ©
Stylus, ND-134G
Supplied with Cartridge
AEP, UK, E Modef and
Canadian Model with cartridge 4-852-060-71 ©
Arm Pipe
PTT 1.7x 2.5
Pan-head screw
5 7-627-553-63 Pivot, lateral
Screw P 2x5 .
X-4852-008-0.®)
Fixed Axle Ass’y
SWS
4-852-022-00 @®
Axle, adjustment
r
|.
L
4-836-909-00 ®
Rubber, pipe
2.203-519-00 ®
Nut, pivot lock
b--— X-4852-011-0 @
Center Joint Ass’y
eo er eer en oe re SC
iG
Itt (10-
X-2089-987-4 ®
Ground Plate Assy
Note:
@® {tems with no part number and/or no
description are not stocked because they
are seldom required for routine service.
e All screws are Phillips (cross recess) type
unless otherwise noted.
(—) = slotted head
e Circled letters ( (A) to 2) ) are applicable
to European models only.
