SECTION 2
DISASSEMBLY

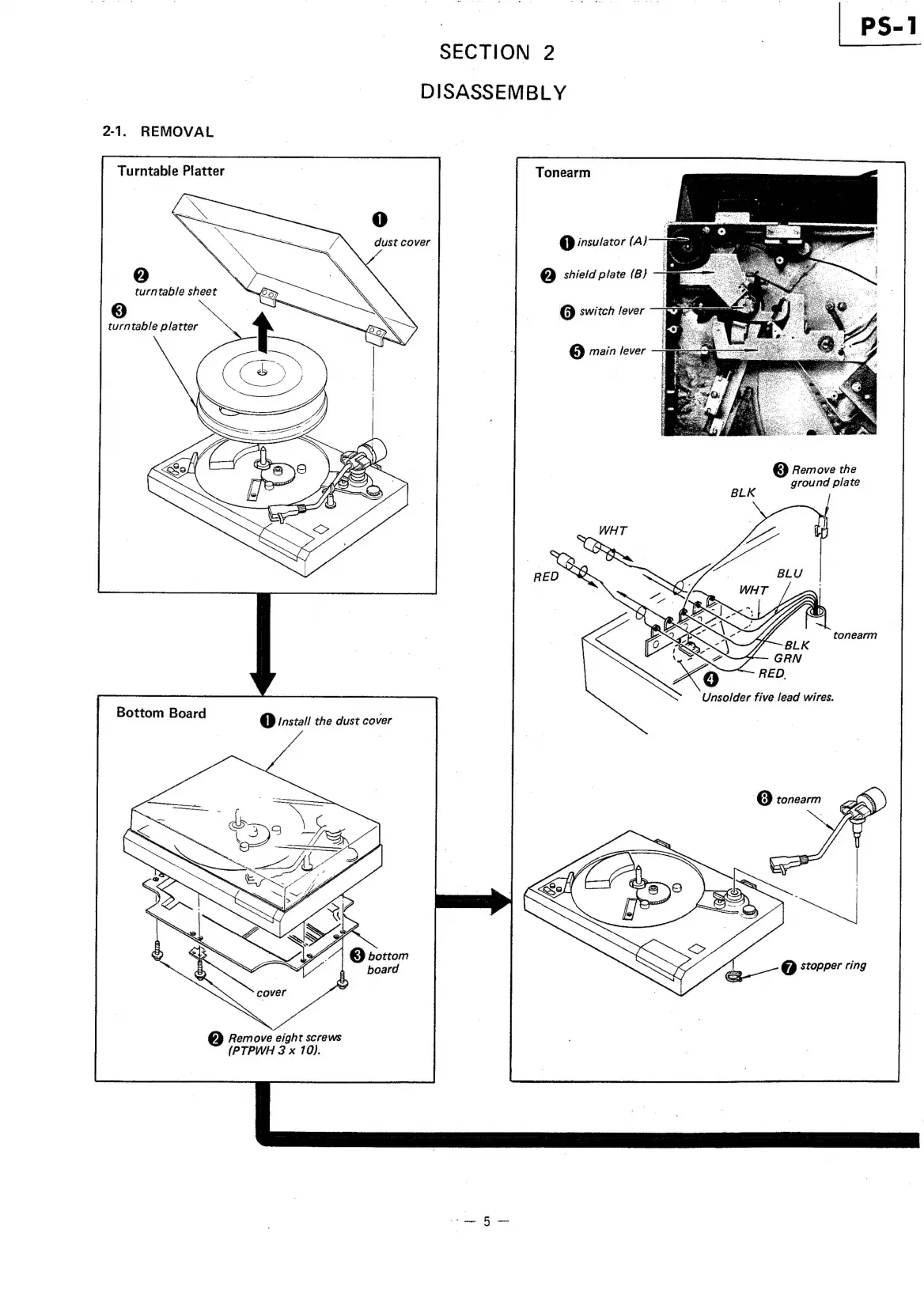

2-1. REMOVAL
Tonearm
Turntable Platter
dust cover
Oo insulator (A)
@ shield plate (B}
turntable sheet
6] switch lever
turntable platter
5) main lever
© Remove the
ground plate
rae
RED
; | WHT l
e ff
+ fo | Pee
* “a pie tonearm
VA ~GRN
RED.
Unsolder five lead wires.
Bottom Board
@ instal! the dust cover
Remove eight screws
({PTPWH 3 x 10).
