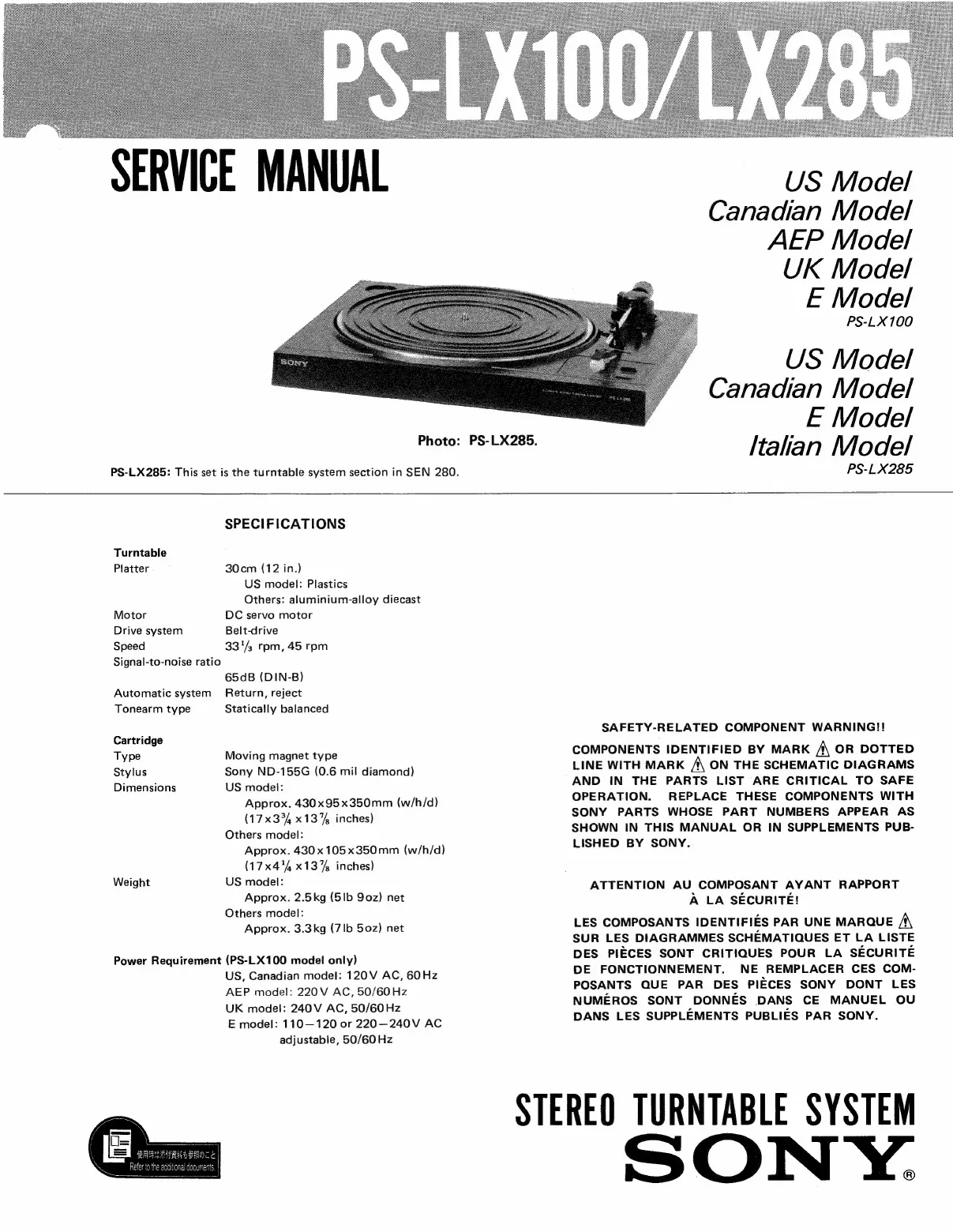

SERVICE MANUA
Photo:
PS-LX285: This set is the turntable system section in SEN 280.
SPECIFICATIONS
Turntable
Platter 30cm (12 in.)
US model: Plastics
Others: aluminium-alloy diecast
Motor DC servo motor
Drive system Belt-drive
Speed 33'/, rpm, 45 rpm
Signal-to-noise ratio
65dB (DIN-B)
Automatic system Return, reject
Tonearm type Statically balanced
Cartridge
Type Moving magnet type
Stylus Sony ND-155G (0.6 mil diamond)
Dimensions US model:
Approx. 430x95 x 350mm (w/h/d)
(17x34 x137%% inches)
Others model:
Approx. 430 x 105x350mm (w/h/d)
(17x414 x13% inches)
Weight US model:
Approx. 2.5kg (5lb 9oz) net
Others model:
Approx. 3.3kg (7lb 50z) net
Power Requirement (PS-LX100 model only)
US, Canadian model: 120V AC, 60Hz
AEP model: 220 V AC, 50/60 Hz
UK model: 240V AC, 50/60 Hz
E model: 110—120 or 220—240V AC
adjustable, 50/60 Hz
PS-LX285.
US Model
Canadian Model
AEP Model
UK Model
E Model
PS-LX100
US Model
Canadian Model
E Model
[talan Model
PS-LX285
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!
LES COMPOSANTS IDENTIFIES PAR UNE MARQUE /\
SUR LES DIAGRAMMES SCHEMATIQUES ET LA LISTE
DES PIECES SONT CRITIQUES POUR LA SECURITE
DE FONCTIONNEMENT. NE REMPLACER CES COM-
POSANTS QUE PAR DES PIECES SONY DONT LES
NUMEROS SONT DONNES DANS CE MANUEL OU
DANS LES SUPPLEMENTS PUBLIES PAR SONY.
STEREO TURNTABLE SYSTEM
ON Y.
