Preparations
Touch panel adjustment

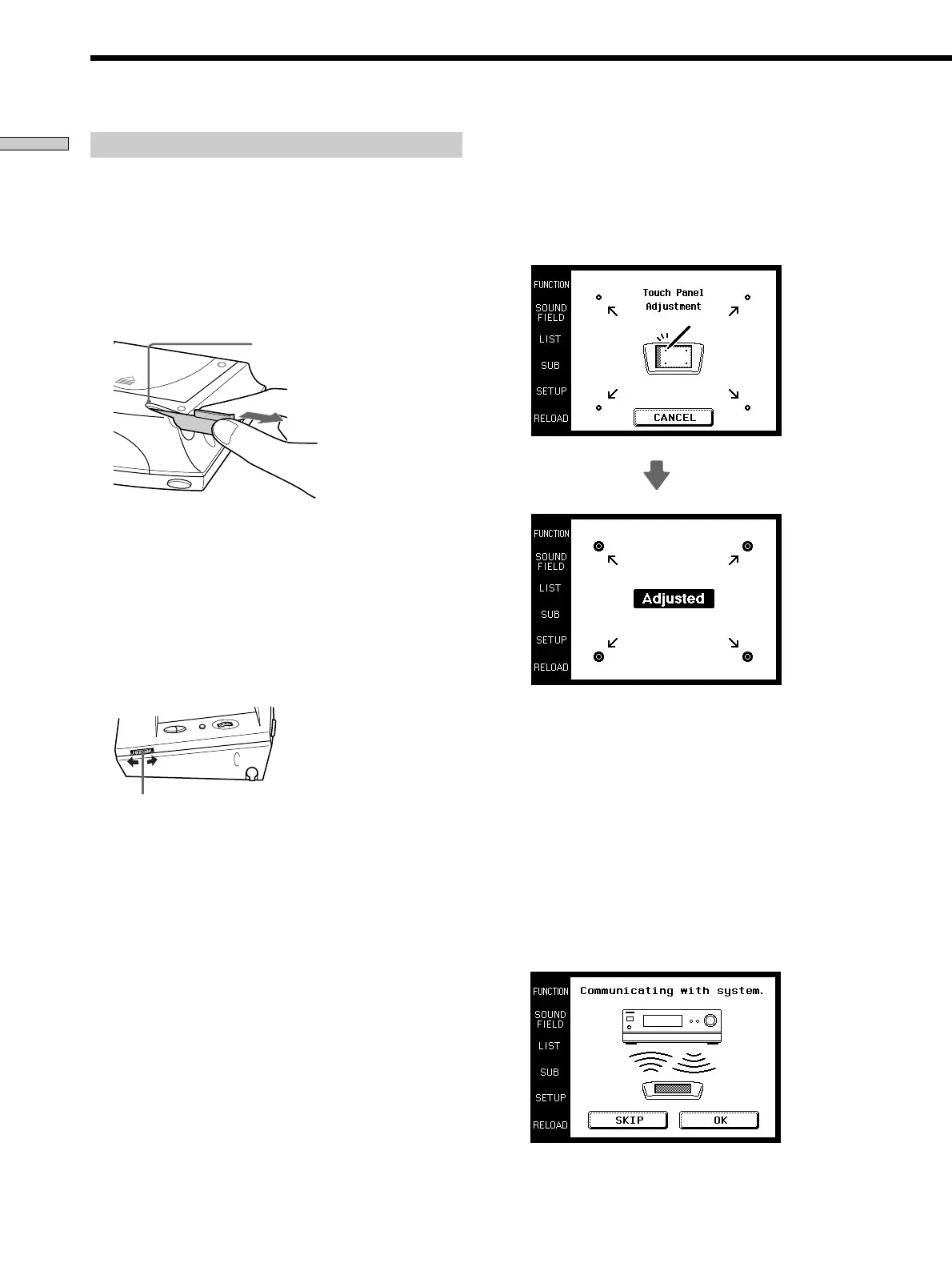

3 Adjust the position of the touch panel’s LCD.
Touch the center of each of the 4 dots with the touch
pen. When all 4 dots have been touched “Adjusted”
appears, a buzzer sounds, and the initial
communication screen appears.
Caution
Touch panel adjustment must be carried out for proper panel
operation. If used without adjustment, the ”Touch Panel
Adjustment” screen appears each time the LCD lights up.
Initial communication
4 Press 1/u on the receiver to turn on the receiver.
5 Point the commander’s transmitter/receiver section
toward the receiver’s display, and touch OK.
Once initial communication with the receiver has been
established, the commander is ready to operate the
receiver.
Setting up the commander
Please be sure to carry out the following 1 to 5 procedures
for preparation of the commander.
The commander’s panel is touch sensitive and can be
operated by simply touching it.
1 Remove the touch pen.
When returning the touch pen, always slide it in tip
first.
Caution
Use only the touch pen provided with this unit or the soft tip
of your finger to operate the touch panel. Using a
commercially available writing utensils may damage the
panel and make correct operation impossible. If the tip of the
touch pen is damaged, or the touch pen is lost, please consult
your nearest Sony dealer.
2 Turn CONTRAST to adjust brightness of the LCD.
Touch the 4 dots with the touch pen.
Preparing the Commander
Pen holder
Remove by sliding out
CONTRAST control

Sony RM-TP501 Primary Specifications

Display

liquid crystal size	3.8 inches
display resolution	256 x 200 dots
liquid crystal type	Reflection system (Monochrome type)

Power

power requirements for operation	DC 6V (Type AA alkaline batteries)
power requirements for memory preservation	DC 3V (CR2032 lithium battery)

Weight and Dimensions

maximum external dimensions	160 x 111 x 46 mm
mass	290 g (Main unit only including touch pen)
