34
CONNECTOR

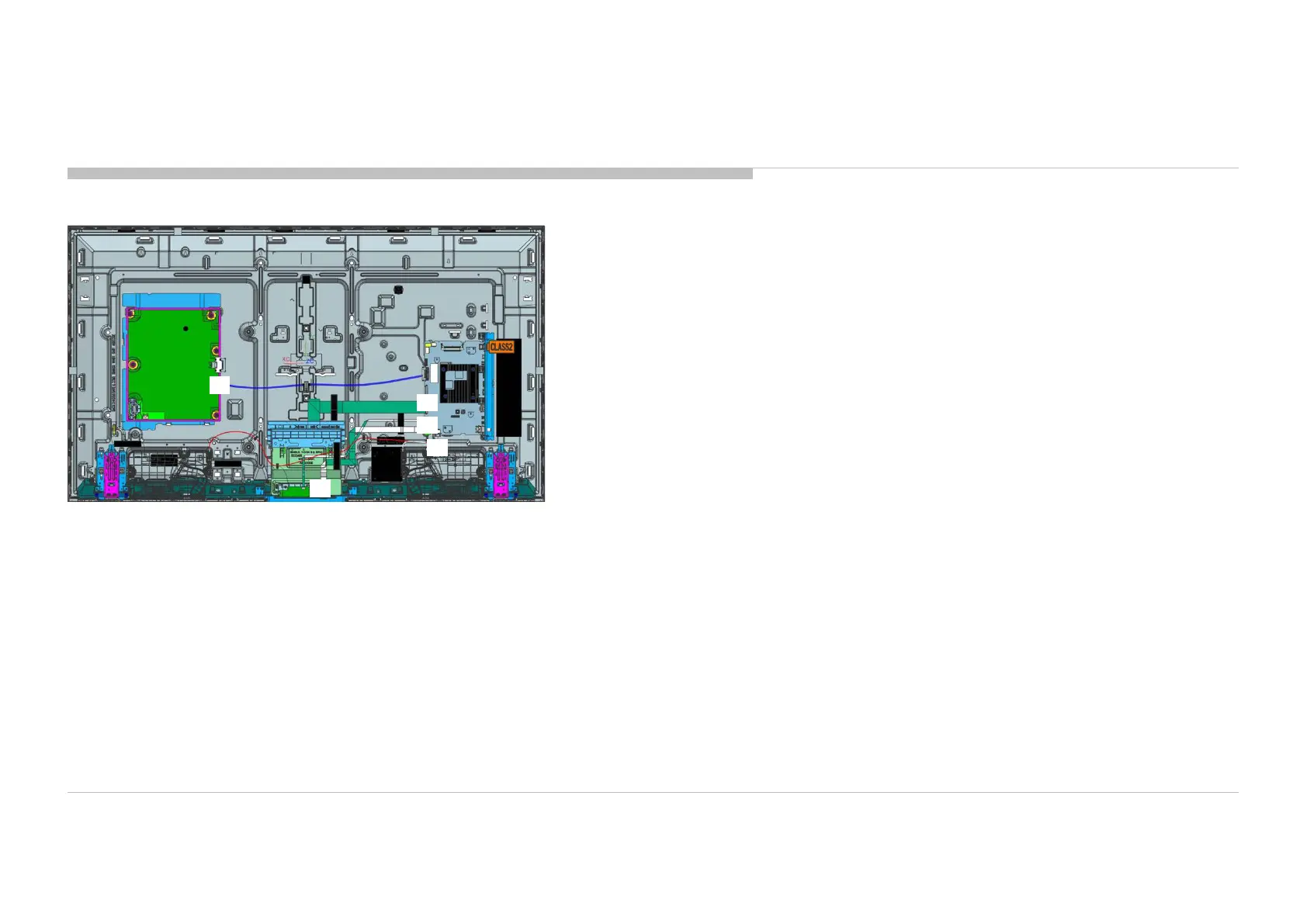

EXPLODED VIEW AND PART LIST 55”
REF.
NO
PART NO. DESCRIPTION REMARKS
1
1-006-502-11 CONNECTOR ASSY 30P CN1701(B)-CN6401(G)(1)
2 1-010-542-12
FLEXIBLE FLAT CABLE 51P CN4200(B)-U1(T-CON)(1)
3
1-006-505-12 FLEXIBLE FLAT CABLE 20P CN3801(B)-J1(WIFI/BT)(1)
4 1-006-509-12
FLEXIBLE FLAT CABLE 25P CN1200(B)-CN102(H)(1)
5
1-006-501-33 CONNECTOR ASSY 4P (SP) CN3550(B)-SP(1)
1
2
3
5
4
