①
Unhook two hooks which is closest to center simultaneously
to prevent lock back.
②
Locate both hooks and use coin or jig to unhook.
③
Can use mirror to assist locating the hook position.
④
Wrap coin in tape. (55mm x 25mm)
⑤
Thickness of coin approximately 2mm.
35
REAR COVER

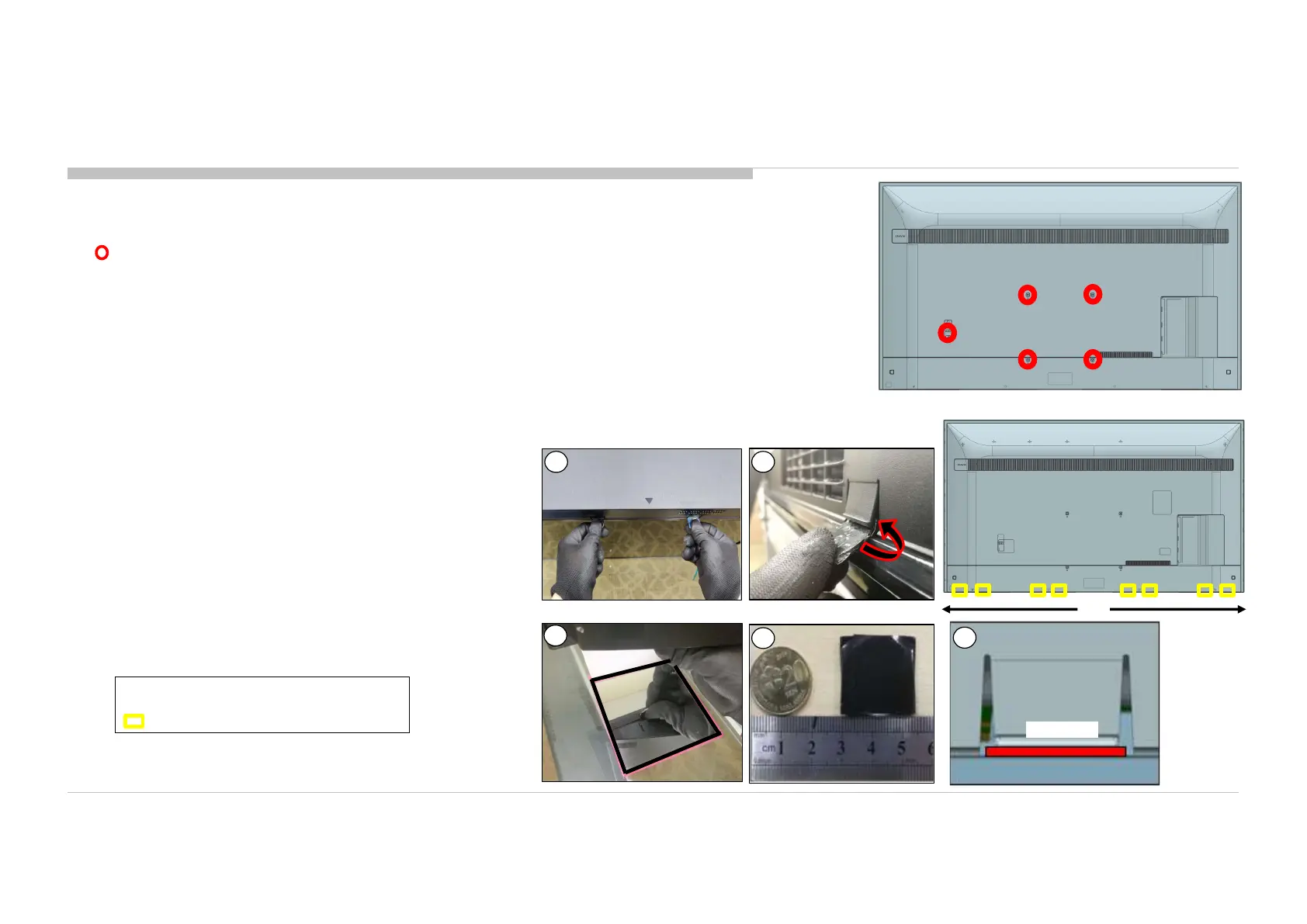

1. Remove screw from Rear & Ac cover. (Qty: 5)
2. Release bottom hook (Qty: 8)
Coin
3
4
5
SCREW, +PSW M5X14
1 2
DISASSEMBLY AND REMOVAL CAUTION 65”
‹1›
‹2›
Note:
Refer to next page for the location of hooks
= Btm BC-Bezel Hook
To Next Page
