①

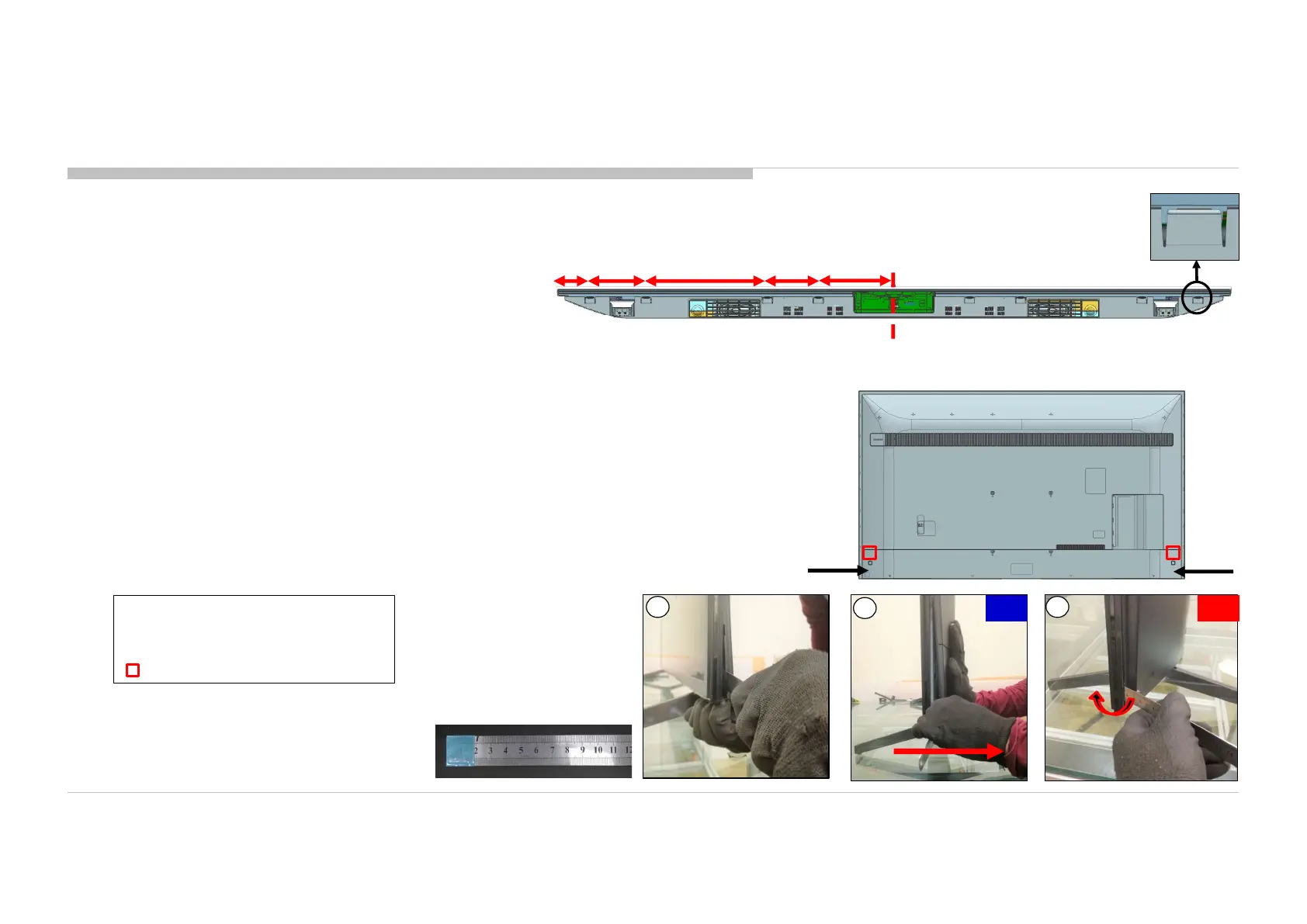

When releasing hook, pull the Rear Cover corner and insert jig.
②
Ensure that the jig is pulled backward.
③
DO NOT pivot on Bezel when inserting jig.
44
REAR COVER
2. Bottom hook position.
1
2
3
3. Release corner hook (Qty: 2)
OKOK NGNG
DISASSEMBLY AND REMOVAL CAUTION 75”
83mm 140mm 303mm 128mm
188mm
Note:
1) Ruler or jig to release corner hook.
2) Wrap ruler with tape to prevent scratch
=BC-Rear Cover Hook
To Next Page
