DCR-TRV9/TRV9E

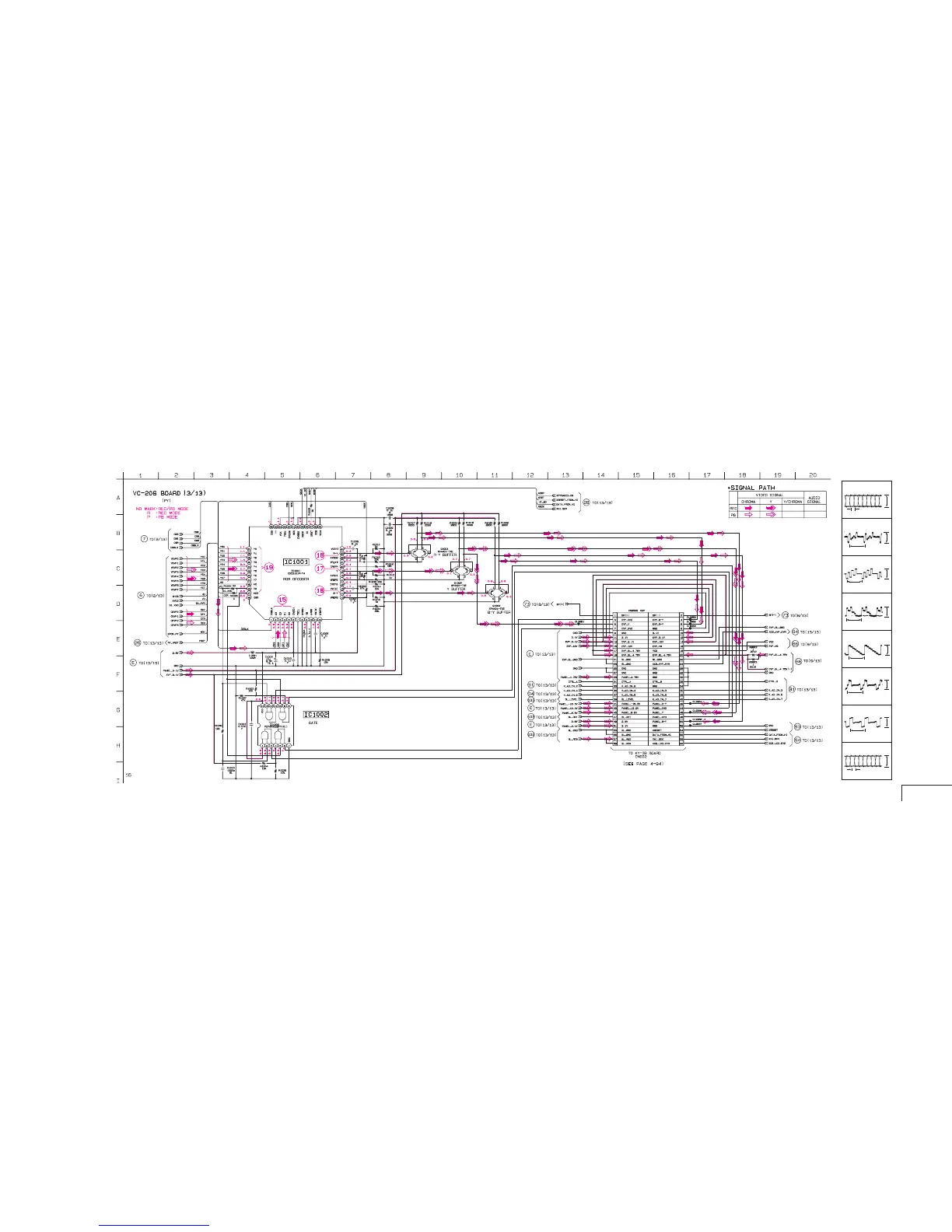

VC-206 (VIDEO DECODER) SCHEMATIC DIAGRAM
— Ref. No.: VC-206 Board; 10,000 Series —
4-27 4-28 4-29 4-30
VIDEO DECODER
VC-206 (3/13)
VC-206 BOARD (3/13)
!∞ IC1001 2-5
CAMERA REC/PB
3.4Vp-p
0.35Vp-p
0.35Vp-p
0.35Vp-p
H
76nsec
0.28Vp-p
0.28Vp-p
0.28Vp-p
!§ IC1001 !¢ REC
!§ IC1001 !¢ PB
!¶ IC1001 !ª CAMERA REC
!¶ IC1001 !ª PB
!• IC1001 @£ CAMERA REC
!• IC1001 @£ PB
!ª IC1001 #¶-$¢ REC/PB
H
3.4Vp-p
H
H
H
H
76nsec
• See page 4-14 for VC-206 BOARD printed wiring board.
