DCR-TRV940/TRV940E/TRV950/TRV950E
— 2 —
COVER
COVER

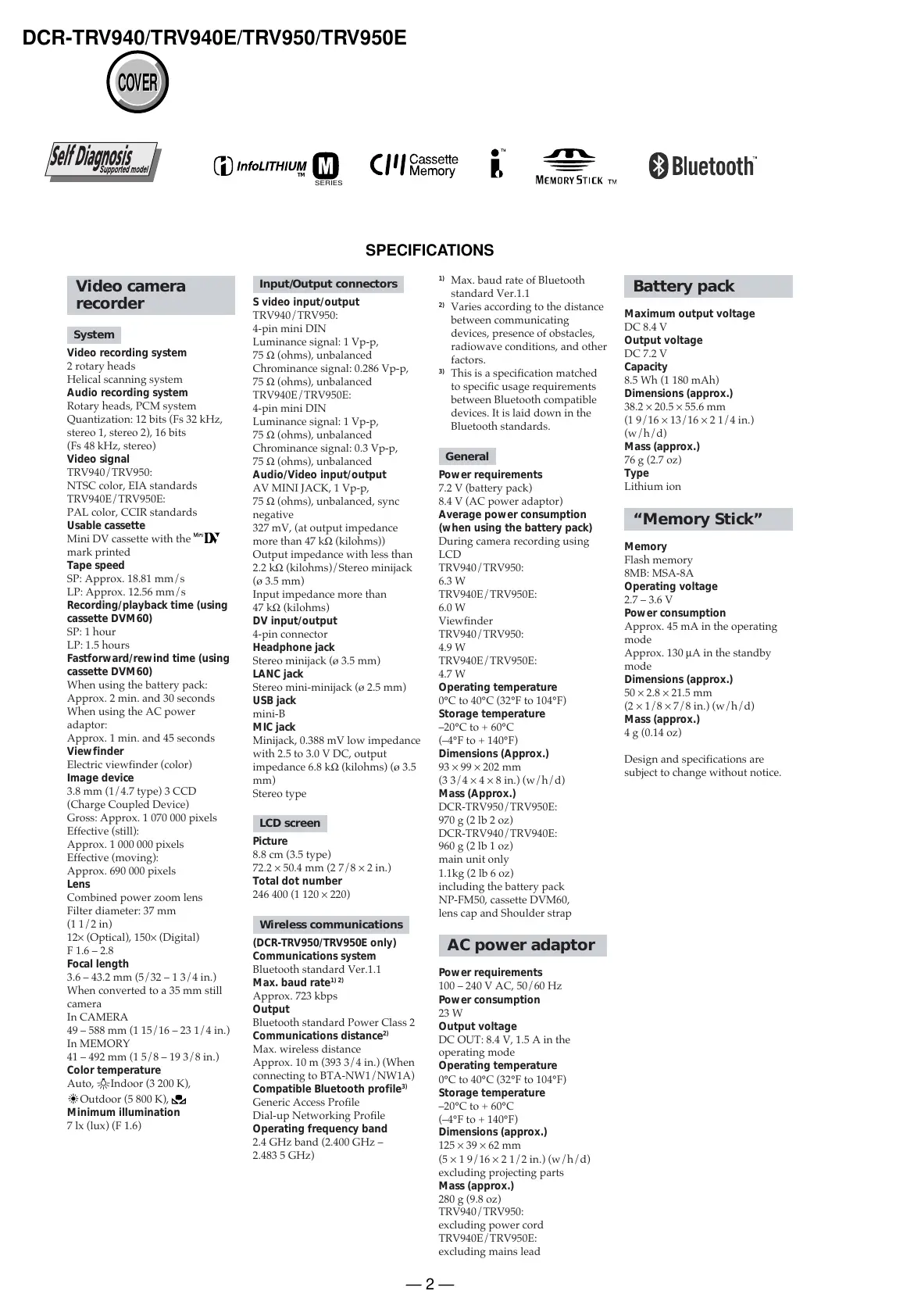

SPECIFICATIONS
SERIES
TM
Video camera
recorder
System
Video recording system
2 rotary heads
Helical scanning system
Audio recording system
Rotary heads, PCM system
Quantization: 12 bits (Fs 32 kHz,
stereo 1, stereo 2), 16 bits
(Fs 48 kHz, stereo)
Video signal
TRV940/TRV950:
NTSC color, EIA standards
TRV940E/TRV950E:
PAL color, CCIR standards
Usable cassette
Mini DV cassette with the
mark printed
Tape speed
SP: Approx. 18.81 mm/s
LP: Approx. 12.56 mm/s
Recording/playback time (using
cassette DVM60)
SP: 1 hour
LP: 1.5 hours
Fastforward/rewind time (using
cassette DVM60)
When using the battery pack:
Approx. 2 min. and 30 seconds
When using the AC power
adaptor:
Approx. 1 min. and 45 seconds
Viewfinder
Electric viewfinder (color)
Image device
3.8 mm (1/4.7 type) 3 CCD
(Charge Coupled Device)
Gross: Approx. 1 070 000 pixels
Effective (still):
Approx. 1 000 000 pixels
Effective (moving):
Approx. 690 000 pixels
Lens
Combined power zoom lens
Filter diameter: 37 mm
(1 1/2 in)
12× (Optical), 150× (Digital)
F 1.6 – 2.8
Focal length
3.6 – 43.2 mm (5/32 – 1 3/4 in.)
When converted to a 35 mm still
camera
In CAMERA
49 – 588 mm (1 15/16 – 23 1/4 in.)
In MEMORY
41 – 492 mm (1 5/8 – 19 3/8 in.)
Input/Output connectors
S video input/output
TRV940/TRV950:
4-pin mini DIN
Luminance signal: 1 Vp-p,
75 Ω (ohms), unbalanced
Chrominance signal: 0.286 Vp-p,
75 Ω (ohms), unbalanced
TRV940E/TRV950E:
4-pin mini DIN
Luminance signal: 1 Vp-p,
75 Ω (ohms), unbalanced
Chrominance signal: 0.3 Vp-p,
75 Ω (ohms), unbalanced
Audio/Video input/output
AV MINI JACK, 1 Vp-p,
75 Ω (ohms), unbalanced, sync
negative
327 mV, (at output impedance
more than 47 kΩ (kilohms))
Output impedance with less than
2.2 kΩ (kilohms)/Stereo minijack
(ø 3.5 mm)
Input impedance more than
47 kΩ (kilohms)
DV input/output
4-pin connector
Headphone jack
Stereo minijack (ø 3.5 mm)
LANC jack
Stereo mini-minijack (ø 2.5 mm)
USB jack
mini-B
MIC jack
Minijack, 0.388 mV low impedance
with 2.5 to 3.0 V DC, output
impedance 6.8 kΩ (kilohms) (ø 3.5
mm)
Stereo type
LCD screen
8.8 cm (3.5 type)
72.2 × 50.4 mm (2 7/8 × 2 in.)
Total dot number
246 400 (1 120 × 220)
1)
Max. baud rate of Bluetooth
standard Ver.1.1
2)
Varies according to the distance
between communicating
devices, presence of obstacles,
radiowave conditions, and other
factors.
3)
This is a specification matched
to specific usage requirements
between Bluetooth compatible
devices. It is laid down in the
Bluetooth standards.
Battery pack
Maximum output voltage
DC 8.4 V
Output voltage
DC 7.2 V
Capacity
8.5 Wh (1 180 mAh)
Dimensions (approx.)
38.2 × 20.5 × 55.6 mm
(1 9/16 × 13/16 × 2 1/4 in.)
(w/h/d)
Mass (approx.)
76 g (2.7 oz)
Type
Lithium ion
“Memory Stick”
Memory
Flash memory
8MB: MSA-8A
Operating voltage
2.7 – 3.6 V
Power consumption
Approx. 45 mA in the operating
mode
Approx. 130 µA in the standby
mode
Dimensions (approx.)
50 × 2.8 × 21.5 mm
(2 × 1/8 × 7/8 in.) (w/h/d)
Mass (approx.)
4 g (0.14 oz)
Design and specifications are
subject to change without notice.
Color temperature
Auto, nIndoor (3 200 K),
Outdoor (5 800 K),
Minimum illumination
7 lx (lux) (F 1.6)
Wireless communications
(DCR-TRV950/TRV950E only)
Communications system
Bluetooth standard Ver.1.1
Max. baud rate
1) 2)
Approx. 723 kbps
Output
Bluetooth standard Power Class 2
Communications distance
2)
Max. wireless distance
Approx. 10 m (393 3/4 in.) (When
connecting to BTA-NW1/NW1A)
Compatible Bluetooth profile
3)
Generic Access Profile
Dial-up Networking Profile
Operating frequency band
2.4 GHz band (2.400 GHz –
2.483 5 GHz)
General
Power requirements
7.2 V (battery pack)
8.4 V (AC power adaptor)
Average power consumption
(when using the battery pack)
During camera recording using
LCD
TRV940/TRV950:
6.3 W
TRV940E/TRV950E:
6.0 W
Viewfinder
TRV940/TRV950:
4.9 W
TRV940E/TRV950E:
4.7 W
Operating temperature
0°C to 40°C (32°F to 104°F)
Storage temperature
–20°C to + 60°C
(–4°F to + 140°F)
Dimensions (Approx.)
93 × 99 × 202 mm
(3 3/4 × 4 × 8 in.) (w/h/d)
Mass (Approx.)
DCR-TRV950/TRV950E:
970 g (2 lb 2 oz)
DCR-TRV940/TRV940E:
960 g (2 lb 1 oz)
main unit only
1.1kg (2 lb 6 oz)
including the battery pack
NP-FM50, cassette DVM60,
lens cap and Shoulder strap
AC power adaptor
Power requirements
100 – 240 V AC, 50/60 Hz
Power consumption
23 W
Output voltage
DC OUT: 8.4 V, 1.5 A in the
operating mode
Operating temperature
0°C to 40°C (32°F to 104°F)
Storage temperature
–20°C to + 60°C
(–4°F to + 140°F)
Dimensions (approx.)
125 × 39 × 62 mm
(5 × 1 9/16 × 2 1/2 in.) (w/h/d)
excluding projecting parts
Mass (approx.)
280 g (9.8 oz)
TRV940/TRV950:
excluding power cord
TRV940E/TRV950E:
excluding mains lead
