Sony SA-GN1 - Exploded Views; Front Section Exploded View

7
SA-GN1
SECTION 3
EXPLODED VIEWS
NOTE :
• -XX, -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “ * ”are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not
supplied.
• Accessories are given in the last of the electri-
cal parts list.

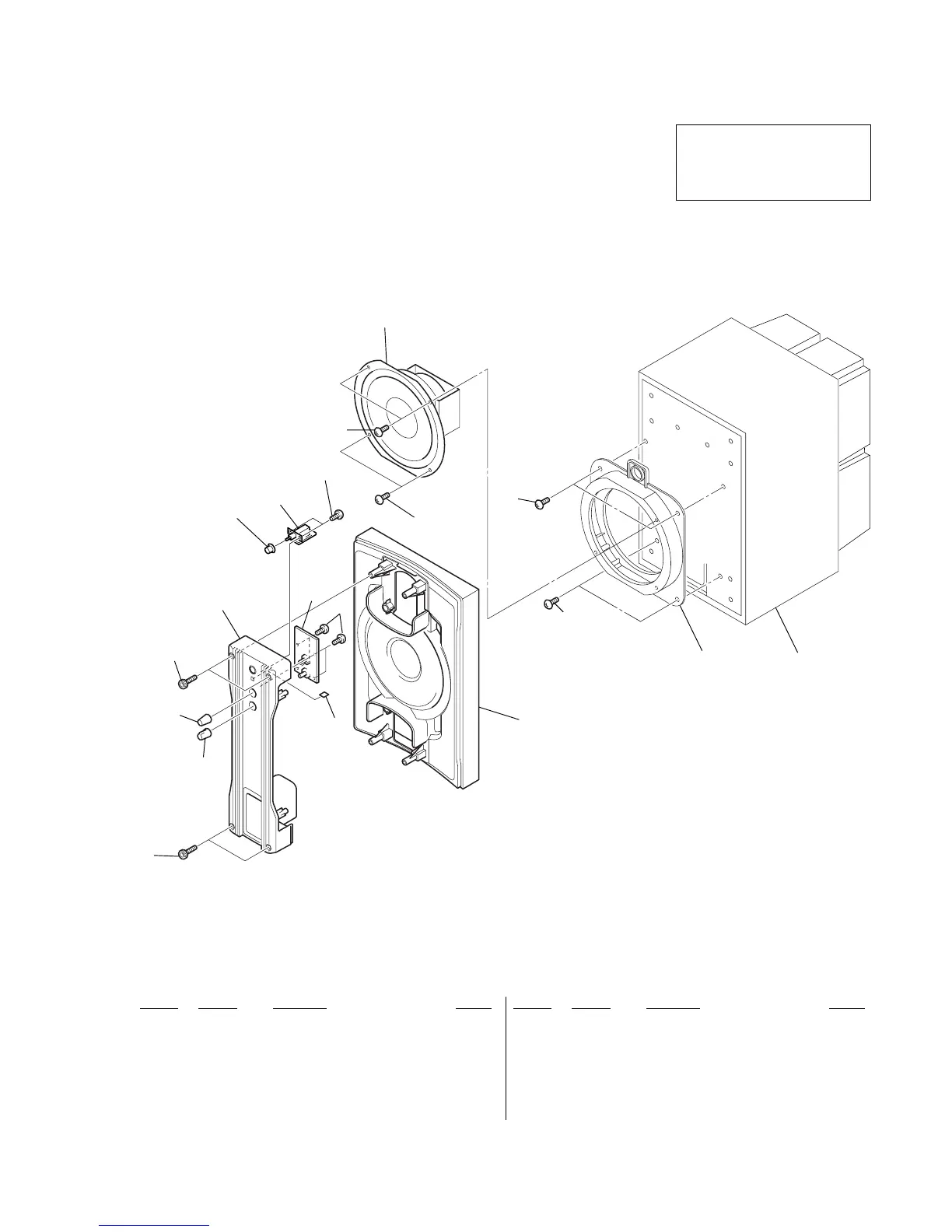

3-1. FRONT SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 4-984-567-01 SCREW (4X20), TAPPING
2 4-237-992-01 KNOB, LEVEL
3 4-874-614-01 SCREW (1) (3.5X14), TAPPING
4 4-244-124-11 SUB (PANEL)
5 4-244-840-01 INDICATOR POWER
6 4-951-620-01 SCREW (2.6X8), +BVTP
Rear section
not supplied
SP1
2
2
6
5
7
8
1
1
10
4
9
6
3
3
11
11
7 1-687-520-11 PANEL BOARD
8 4-244-832-01 KNOB (POWER)
9 1-687-519-11 POWER SWITCH BOARD
10 A-4736-750-A FRONT PANEL ASSY
11 4-874-614-21 SCREW (1) (3.5X14), TAPPING
SP1 1-825-270-11 SPEAKER (20cm)
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
