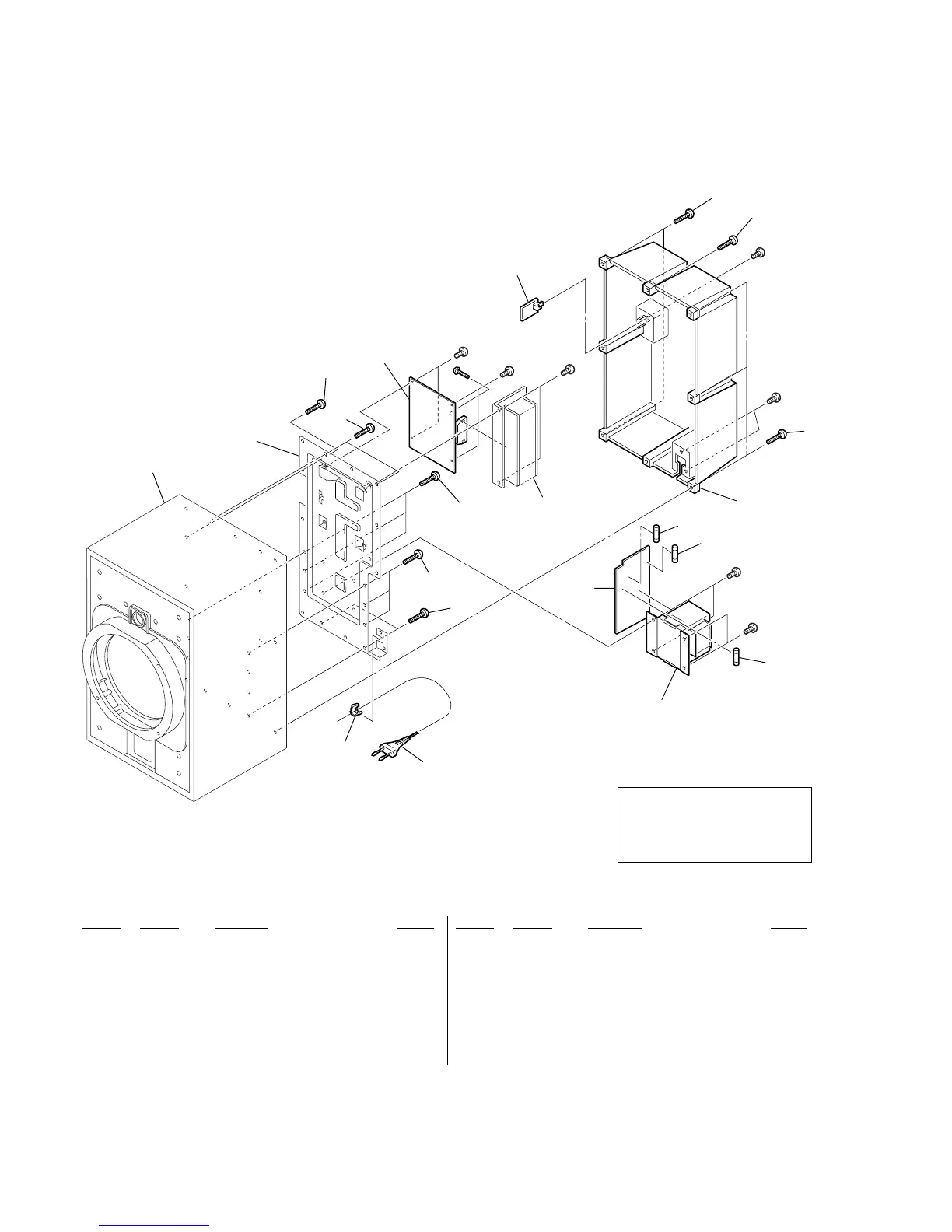

Sony SA-GN1 - Rear Section Exploded View

8
SA-GN1
51 4-235-677-01 SCREW (4X20) (TYPE1), +BVTP
52 A-4732-127-A MAIN BOARD, COMPLETE
53 1-687-521-11 INPUT BOARD
54 1-687-522-11 POWER TRANS BOARD
0 55 1-777-071-53 CORD, POWER (SP)
0 55 1-791-901-12 CORD, POWER (E)
* 56 3-703-244-00 BUSHING (2104), CORD (SP)
56 3-703-571-11 BUSHING (S) (4516), CORD (E)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
0 F501 1-533-469-11 FUSE, GLASS TUBE (DIA.5) (2.5A/250V)
0 F502 1-533-471-11 FUSE, GLASS TUBE (DIA.5) (4A/250V)
0 F503 1-533-471-11 FUSE, GLASS TUBE (DIA.5) (4A/250V)
0 T501 1-439-638-11 POWER TRANSFORMER
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#2 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3
#3 7-685-881-09 SCREW +BVTT 4X8 (S)
3-2. REAR SECTION
51
51
51
51
51
51
52
53
#2
#1
#1
#3
#3
F503
T501
#1
#1
#1
not supplied
not supplied
not supplied
not supplied
F501
F502
51
51
56
55
54
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
