Sony SA-SC8 - Exploded Views; SS-CT8 (Over All Section)

7
SA-SC8/WS8/SS-CT8/TS8
1 X-4955-909-1 FRAME ASSY, GRILLE (EXCEPT AEP, UK)
1 X-4956-030-1 FRAME ASSY, GRILLE (AEP, UK)
2 4-249-787-01 BUFFLE PANEL(CENTER)
3 4-249-784-01 SPEAKER CABINET (CT)
4 1-694-836-11 TERMINAL, SPEAKER
5 4-249-793-01 STAND (CT)(EXCEPT AEP, UK)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
5 4-251-101-01 STAND (CT)(AEP, UK)
6 4-246-659-01 FOOT (STAND)
SP1 1-825-592-11 SPEAKER (7cm)
SP2 1-825-591-11 SPEAKER (1.5cm)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 TT(B)

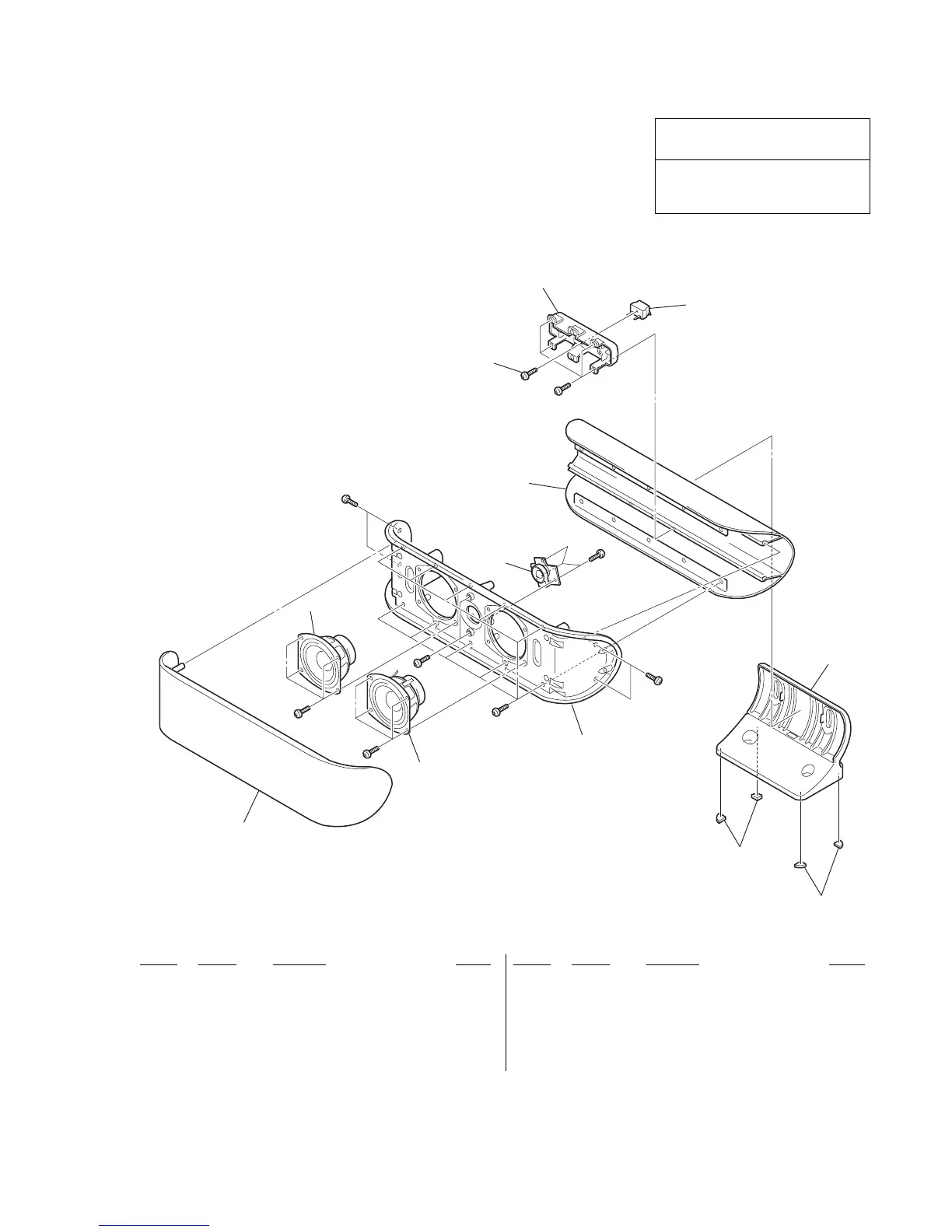

2-1. SS-CT8 (OVER ALL SECTION)
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when or-
dering these items.
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
•Abbreviation
AUS: Australian model
CND : Canadian model
EA : Saudi Arabia model
RU : Russian model
1
#1
#1
#1
#1
#1
#1
#1
#1
SP1
SP2
SP1
2
3
4
not supplied
not supplied
5
6
6
SECTION 2
EXPLODED VIEWS
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
