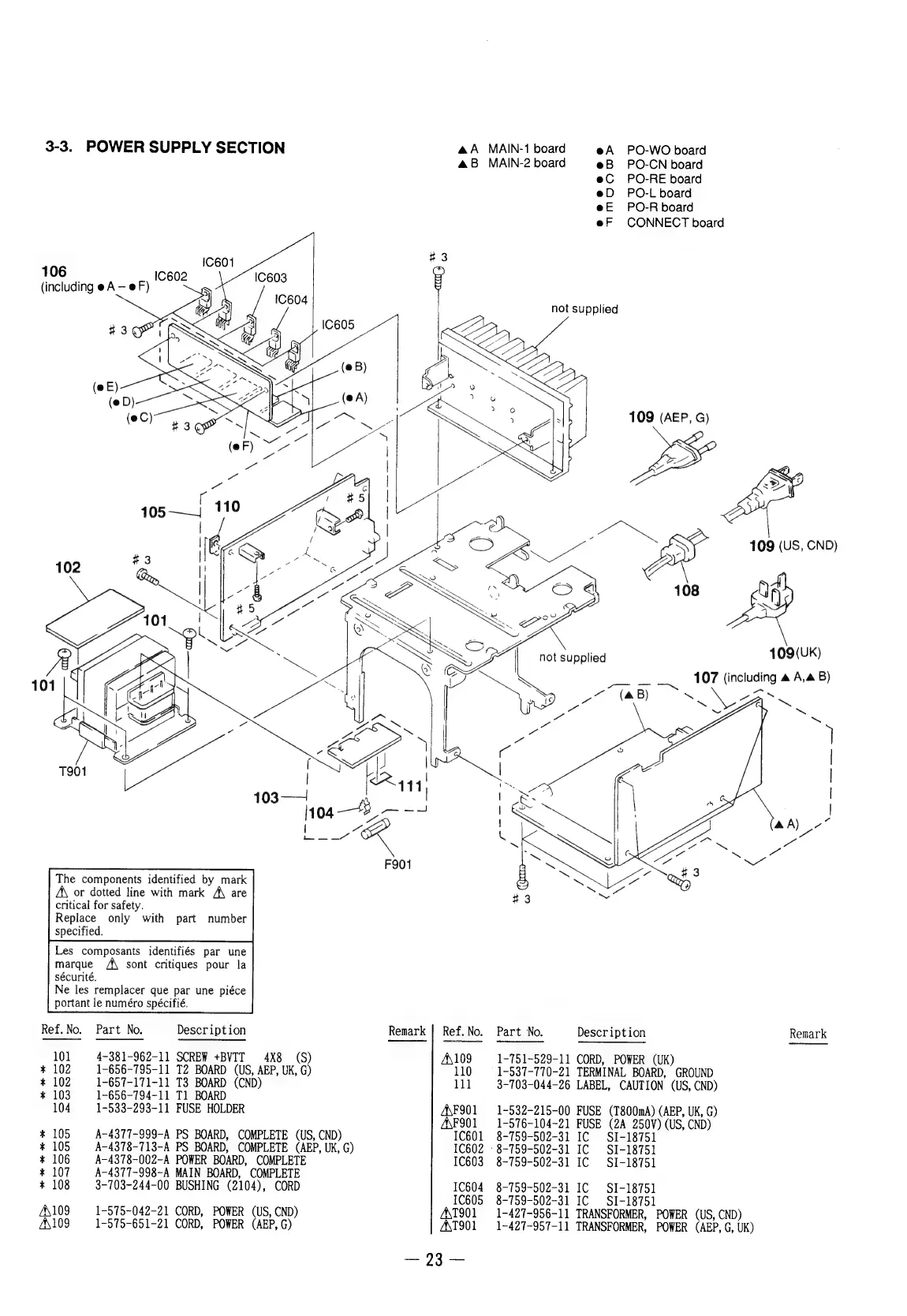

3-3. POWER SUPPLY SECTION
106
(including e A — e F)
iIC601
IC602
aA MAIN-1 board
AB MAIN-2 board
The components identified by mark
A\ or dotted line with mark A\ are
critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque \ sont critiques pour la
sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
Ref. No. Part No. Description Remark | Ref. No.
101 4-381-962-11 SCREW +BVTT X8 (S) A\109
* 102 1-656-795-11 T2 BOARD (US, AEP, UK, G) 110
* 102 1-657-171-11 T3 BOARD (CND) 111
* 103 1-656-794-11 T1 BOARD
104 1-533-293-11 FUSE HOLDER AF901
AF901
* 105 A-4377-999-A PS BOARD, COMPLETE (US, CND) IC601
* 105 A-4378-713-A PS BOARD, COMPLETE (AEP, UK, G) 1C602
* 106 A-4378-002-A POWER BOARD, COMPLETE 1C603
* 107 A-4377-998-A MAIN BOARD, COMPLETE
* 108 3-703-244-00 BUSHING (2104), CORD ee
1C605
A\109 1-575-042-21 CORD, POWER (US, CND) AXT901
A\109 1-575-651-21 CORD, POWER (AEP, G) AXT901
Part No.
1-751-529-11
1-537-770-21
3-703-044-26
1-532-215-00
1-576-104-21
8-759-502-31
*8-759-502-31
8-759-502-31
8-759-502-31
8-759-502-31
1-427-956-11
1-427-957-11
eA PO-WO board
eB PO-CN board
eC PO-RE board
eD PO-L board
@E PO-R board
eF CONNECT board
not supplied
109(UK)
ae
107
(including
a
A,a
B)
A
B)
~~
es
ns
bs
“~~
4
Remark
Description
CORD, POWER (UK)
TERMINAL BOARD, GROUND
LABEL, CAUTION (US, CND)
FUSE (T800mA) (AEP, UK, G)
FUSE (2A 250V) (US, CND)
IC SI-18751
IC SI-18751
IC SI-18751
IC SI-18751
IC SI-18751
TRANSFORMER, POWER (US, CND)
TRANSFORMER, POWER (AEP, G, UK)
