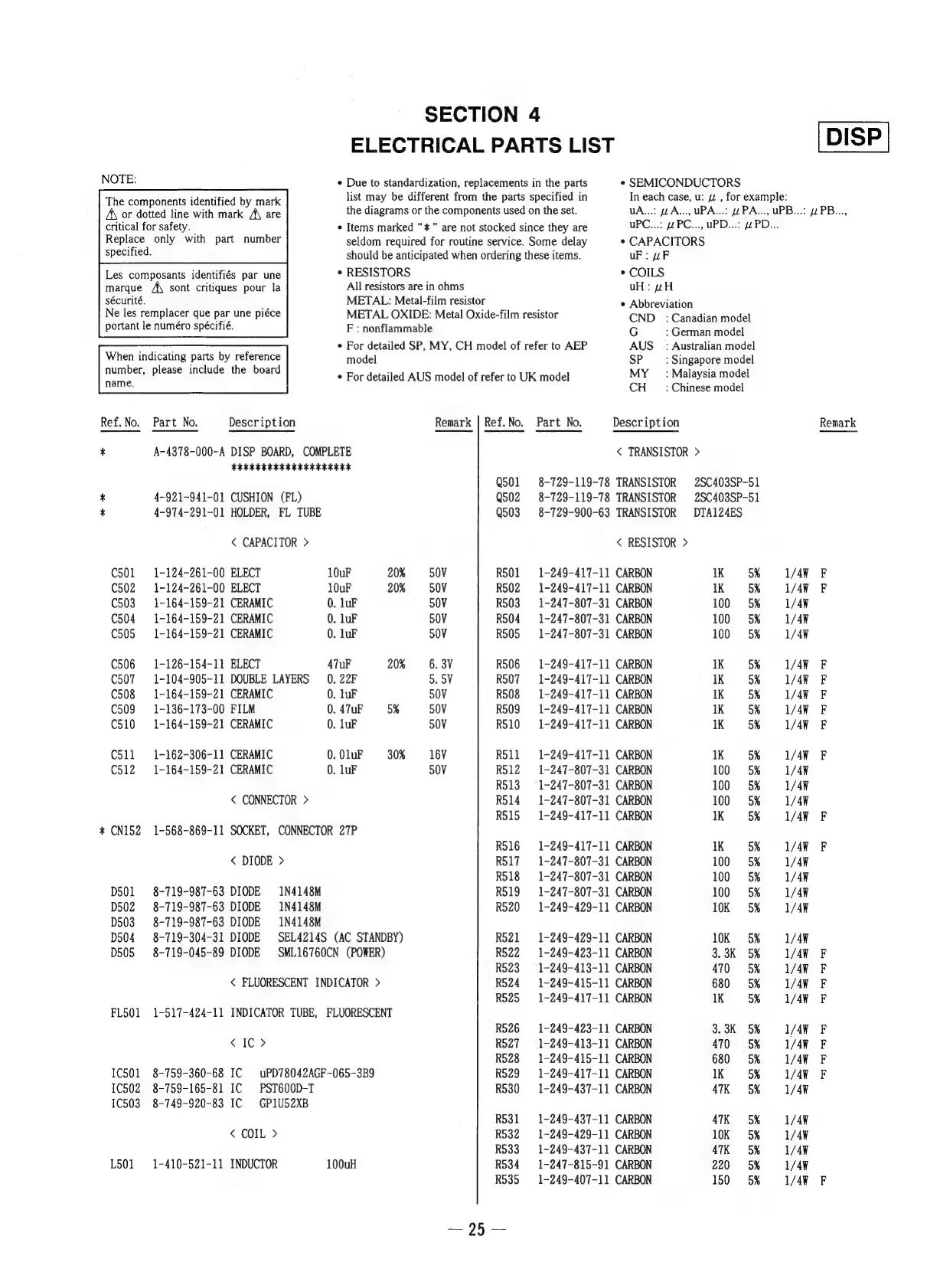

Sony SA-VA15 - Page 14

SECTION 4
ELECTRICAL PARTS LIST
NOTE: ¢ Due to standardization, replacements in the parts ¢ SEMICONDUCTORS
: ee list may be different from the parts specified in In each case, u: uz , for example:
ee ene rai iateh ake ae the diagrams or the components used on the set. UA...: WA..., UPA...: “PA... UPB...: @PB...,
critical for safety. * Items marked “*” are not stocked since they are uPC...: “PC..., UPD...: “PD...
Replace only with part number seldom required for routine service. Some delay * CAPACITORS
specified. should be anticipated when ordering these items. uF: wF
Les composants identifiés par une * RESISTORS * COILS
marque A\ sont critiques pour la All resistors are in ohms uH: wH
sécurité. METAL: Metal-film resistor © Abbreviation
Ne
les
remplacer
que
par
une
piéce
METAL
OXIDE:
Metal
Oxide-film
resistor
CND_
:
Canadian
model
portant le numéro spécifié. F : nonflammable G aCpeman model
¢ For detailed SP, MY, CH model of refer to AEP AUS_ : Australian model
When indicating parts by reference model SP : Singapore model
Lalla Pisese-daclide sine penne ¢ For detailed AUS model of refer to UK model MY : Malaysia model
cana CH — : Chinese model
Ref.No. Part No. Description Remark | Ref.No. Part No. Description Remark
x A-4378-000-A DISP BOARD, COMPLETE < TRANSISTOR >
KXKKEKKKKK EEK EKERES
Q501 8-729-119-78 TRANSISTOR 2SC403SP-51
* 4-921-941-01 CUSHION (FL) Q502 8-729-119-78 TRANSISTOR 2SC403SP-51
k 4-974-291-01 HOLDER, FL TUBE Q503 8-729-900-63 TRANSISTOR DTA124ES
< CAPACITOR > < RESISTOR >
C501 1-124-261-00 ELECT 10uF 20% 50V R501 1-249-417-11 CARBON 1K 5% 1/4¥ F
C502 1-124-261-00 ELECT 10uF 20% 50V R502 1-249-417-11 CARBON 1K 5% 1/4¥ F
C503 1-164-159-21 CERAMIC 0. luF 50V R503 1-247-807-31 CARBON 100 5% 1/4¥
C504 1-164-159-21 CERAMIC 0. luF 50V R504 =1-247-807-31 CARBON 100 5% 1/4¥
C505 1-164-159-21 CERAMIC 0. luF 50V R505 1-247-807-31 CARBON 100 5% 1/4¥
C506 = =1-126-154~11 ELECT 47uF 20% 6. 3V R506 1-249-417-11 CARBON 1K 5% 1/4 F
C507 1-104-905-11 DOUBLE LAYERS 0. 22F 5: SY. R507 ~=1-249-417-11 CARBON 1K 5% 1/4¥ F
C508 1-164-159-21 CERAMIC 0. luF 50V R508 1-249-417-11 CARBON 1K 5% 1/4¥ F
C509 1-136-173-00 FILM 0. 47uF 5% 50V R509 1-249-417-11 CARBON 1K 5% 1/4¥ F
C510 1-164-159-21 CERAMIC 0. luF 50V R510 1-249-417-11 CARBON 1K 5% 1/4¥ F
C511 =1-162-306-11 CERAMIC 0. OluF 30% 16V R511 1-249-417-11 CARBON 1K 5% 1/4¥ F
C512 = 1-164-159-21 CERAMIC 0. luF 50V R512 + 1-247-807-31 CARBON 100 5% 1/4¥
R513 = 1-247-807-31 CARBON 100 5% 1/4¥
< CONNECTOR > R514 ~—-:1-247-807-31 CARBON 100 5% 1/4W
R515 1-249-417-11 CARBON 1K 5% 1/4¥ F
* CNI52 1-568-869-11 SOCKET, CONNECTOR 27P
R516 = 1-249-417-11 CARBON IK 5% 1/4¥ F
< DIODE > R517. ~—-:1-247-807-31 CARBON 100 5% 1/4¥
R518 1-247-807-31 CARBON 100 5% 1/4¥
D501 8-719-987-63 DIODE 1N4148M R519 =1-247-807-31 CARBON 100 5% 1/4¥
D502 + 8-719-987-63 DIODE 1N4148M R520 =1-249-429-11 CARBON 10K 5% 1/4¥
D503 =8-719-987-63 DIODE 1N4148M
D504 8-719-304-31 DIODE SEL4214S (AC STANDBY) R521 =1-249-429-11 CARBON 10K 5% 1/4¥
D505 8-719-045-89 DIODE SMLI16760CN (POWER) R522 1-249-423-11 CARBON 3.3K 5% 1/4¥ F
R523 =: 1-249-413-11 CARBON 470 5% 1/4¥ F
< FLUORESCENT INDICATOR > R524 =1-249-415-11 CARBON 680 5% 1/4¥ F
R525 1-249-417-11 CARBON 1K 5% 1/4¥ F
FL501 1-517-424-11 INDICATOR TUBE, FLUORESCENT
R526 ~=1-249-423-11 CARBON 3.3K 5% 1/4¥ F
< IC > R527 =: 1-249-413-11 CARBON A470 = 5% 1/4¥ F
R528 = =1-249-415-11 CARBON 680 5% 1/4¥ F
IC501 8-759-360-68 IC uPD78042AGF-065-3B9 R529 1-249-417-11 CARBON 1K 5% 1/4¥ F
1C502 8-759-165-81 IC PST600D-T R530 =©1-249-437-11 CARBON ATK = 5% 1/4¥
1C503 8-749-920-83 IC GP1U52XB
R531 1-249-437-11 CARBON ATK 5% 1/4¥
< COIL > R532 1-249-429-11 CARBON 10K 5% 1/44
R533 =1-249-437-11 CARBON ATK 5% 1/4¥
L501 = 1-410-521-11 INDUCTOR 100uH R534 1-247-815-91 CARBON 220 5% 1/4¥
R535 1-249-407-11 CARBON 150 5% 1/4¥ F
