Sony SA-VA15 - Page 6

Pin Name
CONT SIRCS
-[5
INT SIRCS
VOL SDA-2
VOL SDA-1
EXT SIRCS
72 to 77
78 to 80
*
oo
—
e)
STANDBY LED
OPRATE LED
READY LED
VDD
$24 to $27
VLOAD
$6 to S1
10G to 8G
Remote control input (outside)
Not used (Connected to GND)
Remote control signal input
} Electrical volume IC (IC203, 204) serial control
Remote control input (outside)
Internal connecting (Connected to GND)
LED contro! (L: Lighting)
Power supply (+5V)
FL segment control
Power supply (-19V) for indication control
FL segment control
FL grid control

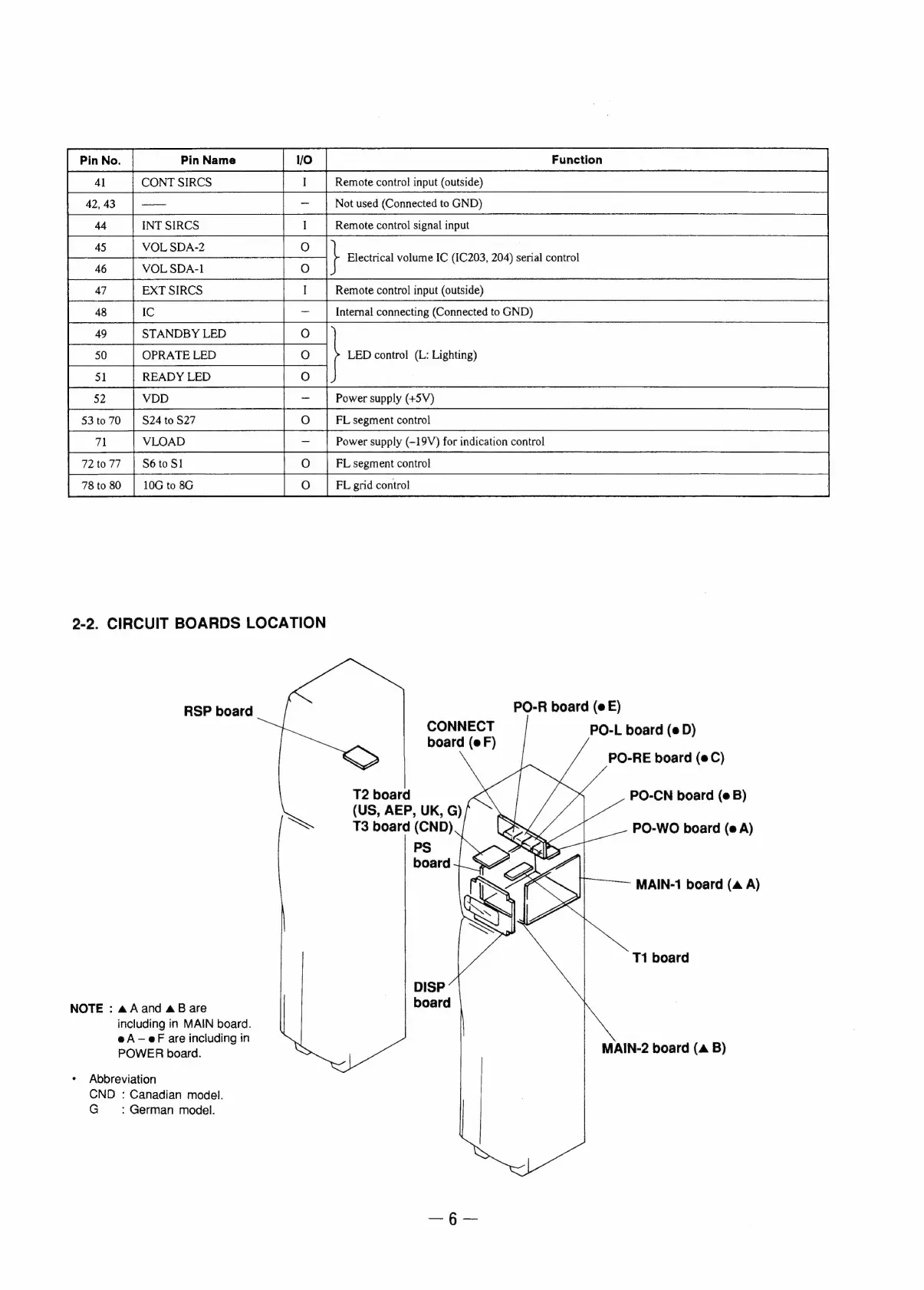

2-2. CIRCUIT BOARDS LOCATION
RSP board
NOTE : aAand aB are
including in MAIN board.
@A- eF are including in
POWER board.
Abbreviation
CND : Canadian model.
G : German model.
PO-R board (e E)
PO-L board (e D)
PO-RE board (eC)
CONNECT
board (eF)
WY
ren
EK
|
T2 board
(US, AEP, UK, G)
T3 board (CND)
PS
board
PO-CN board (eB)
PO-WO board (e A)
MAIN-1 board (4 A)
T1 board
DISP
board
MAIN-2 board (4 B)
