Hooking up the system
Connect the speaker system to the speaker output terminals of an amplifier.
Make sure power to all components (included the subwoofer) is turned off before starting the
hook-up.
Hookup A (for SA-VE315)

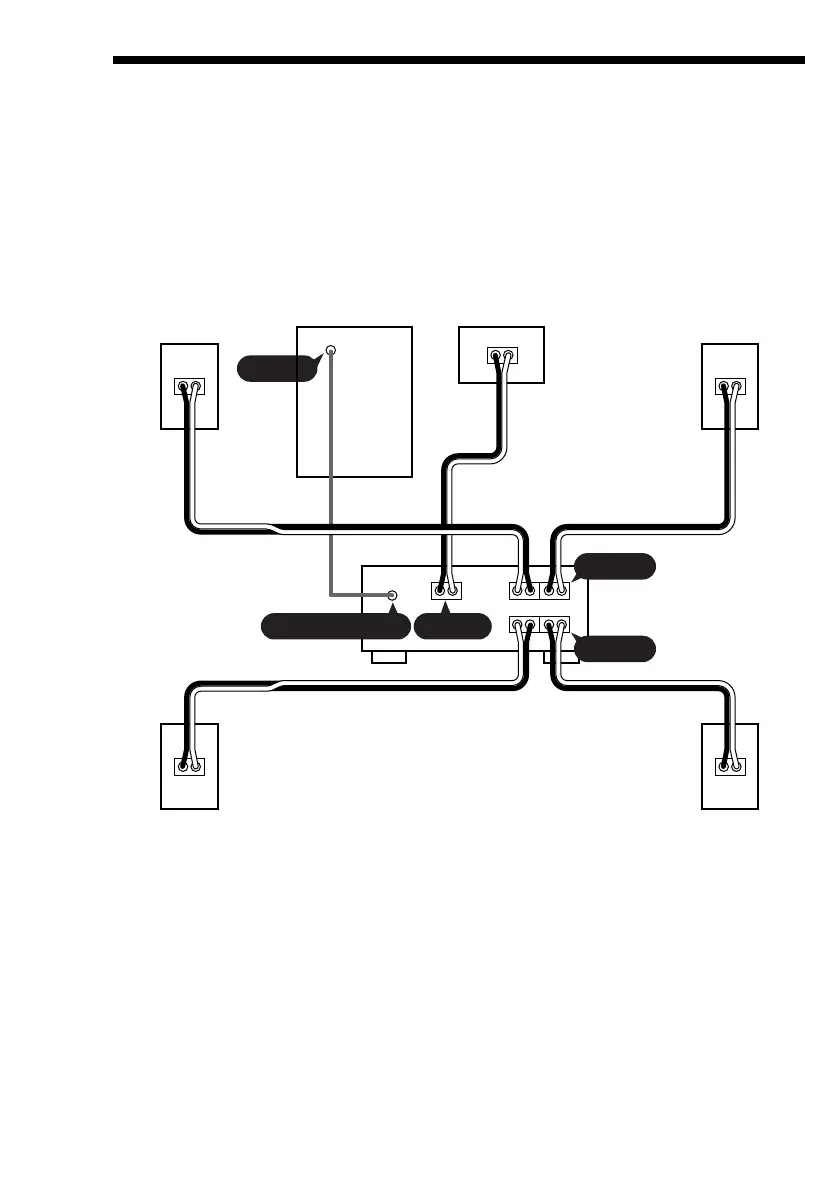

This configuration is used when the amplifier is connected to a DVD player, LD player, VCR or
other video devices.
eE Ee
Ee
Ee Ee
Ee
Ee Ee
LINE IN
WOOFER OUT
FRONT
CENTER
REAR
R
R
L
L
Front (Right)
Subwoofer Center
Front (Left)
Rear (Left)Rear (Right)
Amplifier
