SPECIFICATIONS
AEP Model
UK Model
E Model
Ver. 1.4 2021.02
• All of the units included in the HT-S20R (SA-WS20R/SS-S20R/SS20R/
Remote control) are required to confi rming operation of this unit. Check
in advance that you have all of the units and accessories.

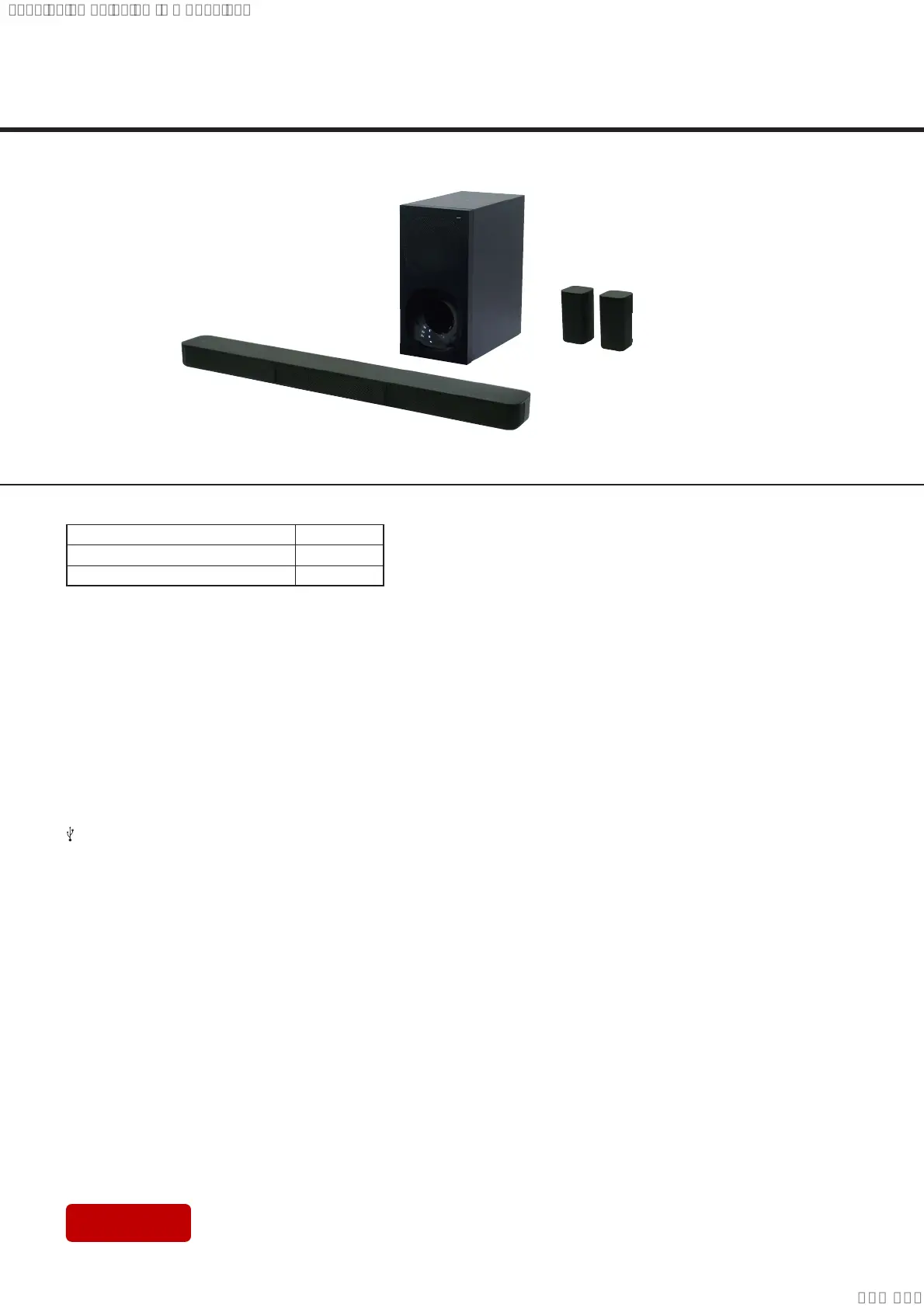

HT-S20R
SA-WS20R/SS-S20R/SS20R
Photo: SS-S20R
Photo: SS-SS20R (L-ch/R-ch)
Photo: SA-WS20R
COMPONENT MODEL NAME (HT-S20R)
Subwoofer (Active Subwoofer) SA-WS20R
Bar Speaker (Speaker System) SS-S20R
Surround Speaker (Speaker System) SS-SS20R
Subwoofer (SA-WS20R)
Amplifier section
POWER OUTPUT (rated)
Front L + Front R: 45 W + 45 W (at 4 ohms, 1 kHz, 1% THD)
POWER OUTPUT (reference)
Front L/Front R/Surround L/Surround R/Center: 67 W (per channel
at 4 ohms, 1 kHz)
Subwoofer: 65 W (at 4 ohms, 100 Hz)
Inputs
TV IN (OPTICAL)
USB
ANALOG IN
Output
HDMI OUT (TV (ARC))
HDMI section
Connector
Type A (19pin)
USB section
(USB) port:
Type A
BLUETOOTH section
Communication system
BLUETOOTH Specification version 5.0
Output
BLUETOOTH Specification Power Class 1
Maximum communication range
Line of sight approx. 10 m
1)
Frequency band
2.4 GHz band (2.4000 GHz - 2.4835 GHz)
Maximum output power (AEP, UK)
< 6 dBm
Modulation method
FHSS (Freq Hopping Spread Spectrum)
Compatible BLUETOOTH profiles
2)
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio Video Remote Control Profile)
Supported Codec
3)
What’s in the Box
• Bar speaker (1)
• Subwoofer (1)
• Surround speaker (2)
• Remote control (1)/R03 (size AAA) battery (2)
• AC power cord (mains lead) (1) (Except AF)
(the shape of the plug diers depending on countries/regions)
• AC power cord (mains lead) (2) (AF)
• Optical digital cable (1) (Except IND)
• AC plug adaptor (1) (LA)
• Stereo Mini cable (1) (IND)
• WALL MOUNT TEMPLATE (1) (Except IND)
• Startup Guide
• Operating Instructions
SBC
4)
Transmission range (A2DP)
20 Hz - 20,000 Hz (Sampling frequency 32 kHz, 44.1 kHz, 48 kHz)
1)
The actual range will vary depending on factors such as obstacles
between devices, magnetic fields around a microwave oven,
static electricity, cordless phone use, reception sensitivity, the
operating system, software applications, etc.
2)
BLUETOOTH standard profiles indicate the purpose of BLUETOOTH
communication between devices.
3)
Codec: Audio signal compression and conversion format
4)
Abbreviation for Subband Codec
Speaker section
Speaker system
Subwoofer system, Bass reflex
Speaker
160 mm cone type
General
Bar Speaker (SS-S20R)
Speaker system
Full range speaker system, Bass reflex
Speaker
42 mm × 100 mm cone type
Dimensions* (approx.) (w/h/d)
760 mm × 52 mm × 86 mm
*
Not Including projection portion
Mass (approx.)
2.0 kg
Surround Speakers (SS-SS20R)
Speaker system
Full range speaker system, Bass reflex
Speaker
65 mm cone type
Dimensions* (approx.) (w/h/d)
86 mm × 171 mm × 86 mm
*
Not Including projection portion
Mass (approx.)
0.6 kg
Design and specifications are subject to change without notice.
Power requirements
Models for Middle East and Africa:
120 V - 240 V AC, 50 Hz/60 Hz
Models for other countries/regions:
220 V - 240 V AC, 50 Hz/60 Hz
Power consumption
On: 40 W
Standby mode: 0.5 W or less (Power Saving mode)
(When [CONTROL FOR HDMI] in [HDMI] and [STANDBY] in [BT] are
set to [OFF])
Standby mode: 2 W or less*
(When [CONTROL FOR HDMI] in [HDMI] and [STANDBY] in [BT] are
set to [ON])
*
The system will automatically enter Power saving mode when
there is no HDMI connection and no BLUETOOTH pairing
history.
Dimensions* (approx.) (w/h/d)
192 mm × 387 mm × 342 mm
*
Not Including projection portion
Mass (approx.)
7.0 kg
