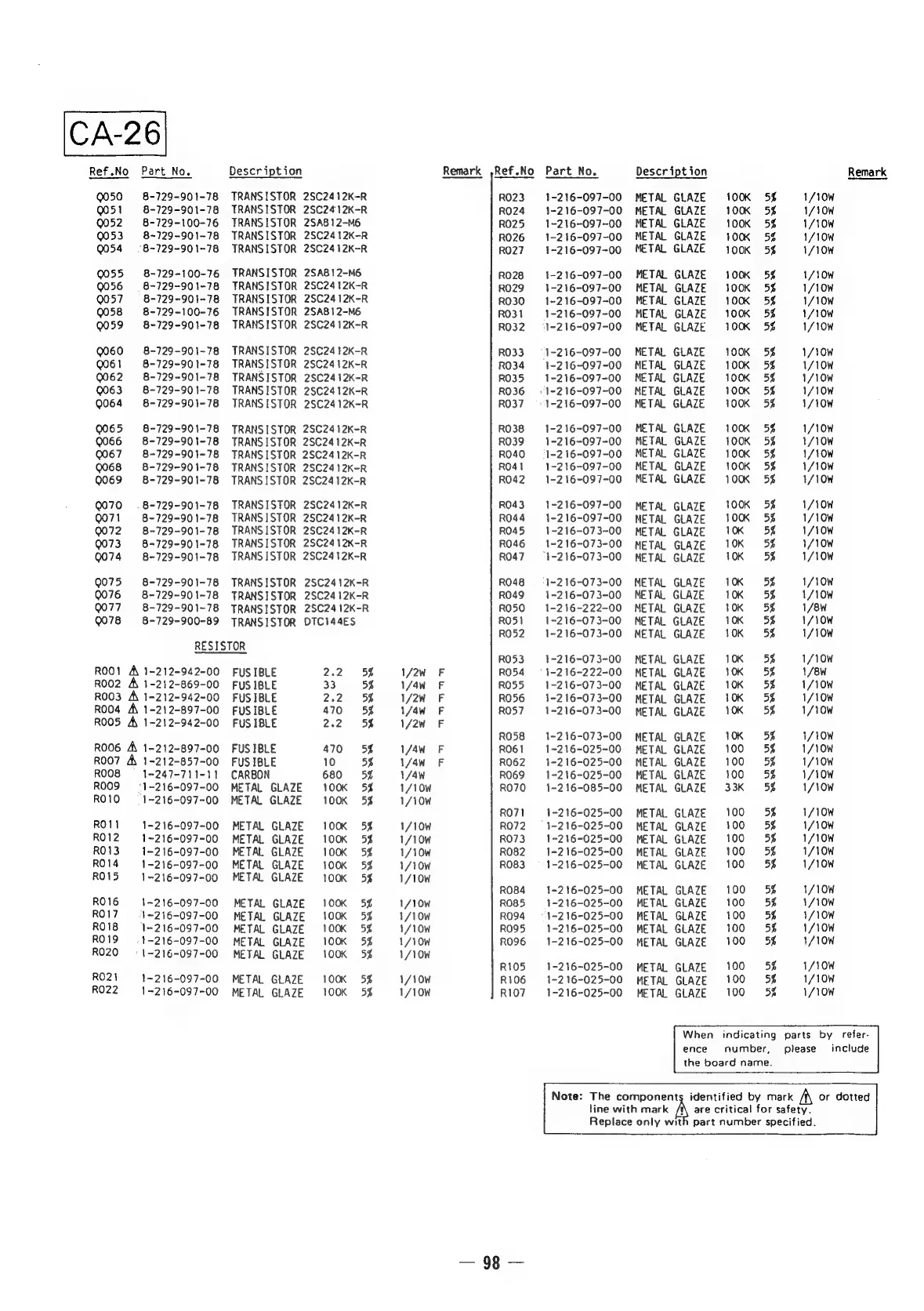

Sony SB-V3000 - Page 73

CA-26
Ref.No Part No. Description Remark ,Ref.No Part No. Description Remark
Q050 8-729-901-78 TRANSISTOR 2SC2412K-R R023. 1-216-097-00 METAL GLAZE 00K 5% 1/10W
QO51 8-729-901-78 TRANSISTOR 2SC2412K-R RO24 1-216-097-00 METAL GLAZE 100K 5% 1/10W
Q052 8-729-100-76 TRANSISTOR 2SA812-M6 RO25 1-216-097-00 METAL GLAZE 100K 5% 1/10W
Q053 8~729-901-78 TRANSISTOR 2SC2412K-R RO26 1-216-097-00 METAL GLAZE 100K 5% 1/10W
Q054 = 8-729-901-78 TRANSISTOR 2SC2412K-R RO27 =1-216-097-00 METAL GLAZE 100K 5% 1/10W
Q055 8-729-100-76 TRANSISTOR 2SA812-M6 RO28 1-216-097-00 METAL GLAZE 100K 5% 1/10W
Q056 = 8-729-901-78 TRANSISTOR 2SC2412K-R RO29 1-216-097-00 METAL GLAZE 100K 5% 1/10W
Q057 = 8-729-901-78 TRANSISTOR 2SC2412K-R RO30. = 1+216-097-00 METAL GLAZE 100K 5% 1/10W
Q058 8-729-100-76 TRANSISTOR 2SA812-M6 RO31 1-216-097-00 METAL GLAZE 100K 5% 1/10W
Q059 8-729-901-78 TRANSISTOR 2SC2412K-R RO32. =: 1-216-097-00 METAL GLAZE 100K 5% 1/10W
Q060 8-729-901-78 TRANSISTOR 25C2412K-R RO33. =: 1-216-097-00 METAL GLAZE 100K 5% 1/10W
Q061 8-729-901-78 TRANSISTOR 2SC2412K-R RO34 = 1-216-097-00 METAL GLAZE 100K 5% 1/1 0W
Q062 8-729-901-78 TRANSISTOR 2SC2412K-R RO35 1-216-097-00 METAL GLAZE 100K 5% 1/10W
Q063 8-729-901-78 TRANSISTOR 2SC2412K-R RO36. =: 1-216-097-00 METAL GLAZE 100K 5% 1/10W
Q064 8-729-901-78 TRANSISTOR 25C2412K-R RO37 =: 1-216-097-00 METAL GLAZE 100K 5% 1/10W
Q065 8-729-901-78 TRANSISTOR 2$C2412k-R RO38 1-216-097-00 METAL GLAZE 100K 5% 1/10W
Q066 8-729-901-78 TRANSISTOR 2SC2412K-R RO39 =1-216-097-00 METAL GLAZE 100K 5% 1/10W
Q067 =8-729-901-78 TRANSISTOR 2SC2412K-R RO4O0 =: 1-2 16-097-00 METAL GLAZE 100K 5% 1/10W
Q068 8-729-901-78 TRANSISTOR 2SC2412K-R R041 -1-216-097-00 METAL GLAZE 100K 5% 1/10W
Q069 8-729-901-78 TRANSISTOR 2$C2412K-R RO42 1-216-097-00 METAL GLAZE 100K 5% 1/10W
Q070 = 8-729-901-78 TRANSISTOR 2SC2412K-R R043. 1-216-097-00 METAL GLAZE 00K 5% 1/10W
QO71 8-729-901-78 TRANSISTOR 2SC2412K-R RO44 = 1-216-097-00 METAL GLAZE 100K 5% 1/10W
Q072 8-729-901-78 TRANSISTOR 2SC2412K-R R045 1-216-073-00 METAL GLAZE 10K 5% 1/10W
Q073 8-729-901-78 TRANSISTOR 2SC2412K-R RO46 = 1-216-073-00 METAL GLAZE 10K 5% 1/10W
Q074 8-729-901-78 TRANSISTOR 2SC2412K-R R047 =: 1-216-073-00 METAL GLAZE 10K 5% 1/10W
Q075 8-729-901-78 TRANSISTOR 2SC2412K-R RO48 =: 1-216-073-00 METAL GLAZE 10K 5% 1/10W
Q076 8-729-901-78 TRANSISTOR 2SC2412K-R R049: 1-216-073-00 METAL GLAZE 10K 5% 1/10W
Q077 8-729-901-78 TRANSISTOR 2SC2412K-R RO5O0 1-216-222-00 METAL GLAZE 10K 5% 1/8W
Q078 8-729-900-89 TRANSISTOR OTCI44ES RO51 1-216-073-00 METAL GLAZE 10K 5% 1/10W
RO52 1-216-073-00 METAL GLAZE 10K 5% 1/10W
RESISTOR
oF RO53 1-216-073-00 METAL GLAZE 10K 5% 1/10W
ROO! A 1-212-942-00 FUSIBLE 2.2 5% 1/2W F RO54 = 1-216-222-00 METAL GLAZE 10K 5% 1/8W
ROO2 A 1-212-869-00 FUSIBLE 33 5% \/aw F RO55 1-216-073-00 METAL GLAZE 10K 5% 1/10W
ROO3 A 1-212-942-00 FUSIBLE 2.2 5f \/2w F RO56 1-216-073-00 METAL GLAZE 10K 5% 1/10W
ROO4 A 1-212-897-00 FUSIBLE 470 5% 1/aw F ROS7 =1-216-073-00 METAL GLAZE 10K 5% 1/10W
ROOS A 1-212-942-00 FUSIBLE 2.2 5f \/2w F
RO58 1-216-073-00 METAL GLAZE 10K 5% 1/10W
ROO6 A 1-212-897-00 FUSIBLE 470 5% 1/4w F RO61 1-216-025-00 METAL GLAZE 100 5% 1/10W
ROO7 A 1-212-857-00 FUSIBLE 10 5% 1/4w F RO62 1-216-025-00 METAL GLAZE 100 5% 1/10W
ROOB = 1-247-711-11 CARBON 680 5% 1/4W RO69 ~=—«-:1-216-025-00 METAL GLAZE 100 5% 1/10W
ROO9 =: 1-216-097-00 METAL GLAZE 100K 5% 1/10W RO7O 1-216-085-00 METAL GLAZE 33K 5% 1/\0W
RO1O = 1-216-097-00 METAL GLAZE 100K 5% 1/10W
RO71 = 1-216-025-00 METAL GLAZE 100 5% 1/10W
ROI] = 1-216-097-00 METAL GLAZE 100K 5% 1/10W RO72 1-216-025-00 METAL GLAZE 100 5% 1/1 0W
ROI2
=
1-216-097-00
METAL
GLAZE
100K
5%
1/10W
RO73
1-216-025-00
METAL
GLAZE
100
5%
1/10W
ROIZ—-1-216-097-00 METAL GLAZE 100K 5% 1/10W RO82 1-216-025-00 METAL GLAZE 100 5% 1/10W
RO14 = 1-216-097-00 METAL GLAZE 100K 5% 1/10W RO83 = 1-216-025-00 METAL GLAZE 100 5% 1/10W
ROIS 1-216-097-00 METAL GLAZE 100K 5% 1/10W
RO84 1-216-025-00 METAL GLAZE 100 5% 1/10W
RO16 1~216-097-00 METAL GLAZE 100K 5% 1/10W RO85 1-216-025-00 METAL GLAZE 100 5% 1/10W
ROI?) =. 1~216-097-00 METAL GLAZE 100K 5% 1/10W RO94 =: 1-216-025-00 METAL GLAZE 100 5% 1/10W
RO18
1-216-097-00
METAL
GLAZE
100K
5%
1/10W
RO95
1-216-025-00
METAL
GLAZE
100
5%
1/10W
ROI9 = 1-216-097-00 METAL GLAZE 100K 5% 1/10W RO96 1-216-025-00 METAL GLAZE 100 5% 1/10W
RO2ZO
=
1-216-097-00
METAL
GLAZE
100K
5¢
1/10W
R105. —-:11-216-025-00 METAL GLAZE 100 5% 1/10W
RO21 = 1~216-097-00 METAL GLAZE 100K 5% 1/10W R106 1-216-025-00 METAL GLAZE 100 5% 1/10W
RO22
=
=1-216-097-00
METAL GLAZE
100K
5%
1/10W
R107.
=-:1-216-025-00
METAL
GLAZE
100
5%
1/10W
When indicating parts by refer-
ence number, please include
the board name.
line with mark are critical for safety.
Note: The nin mark ar eit by mark A or dotted
Replace only with part number specified.
