Sony SEQ-H3800 - Section 5 Exploded Views; Main Unit Exploded View

NOTE:
* -XX, -X mean standardized parts, so they
may have some difference from the original
one.
* Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) .. . (RED)
t t
Parts color Cabinet’s color

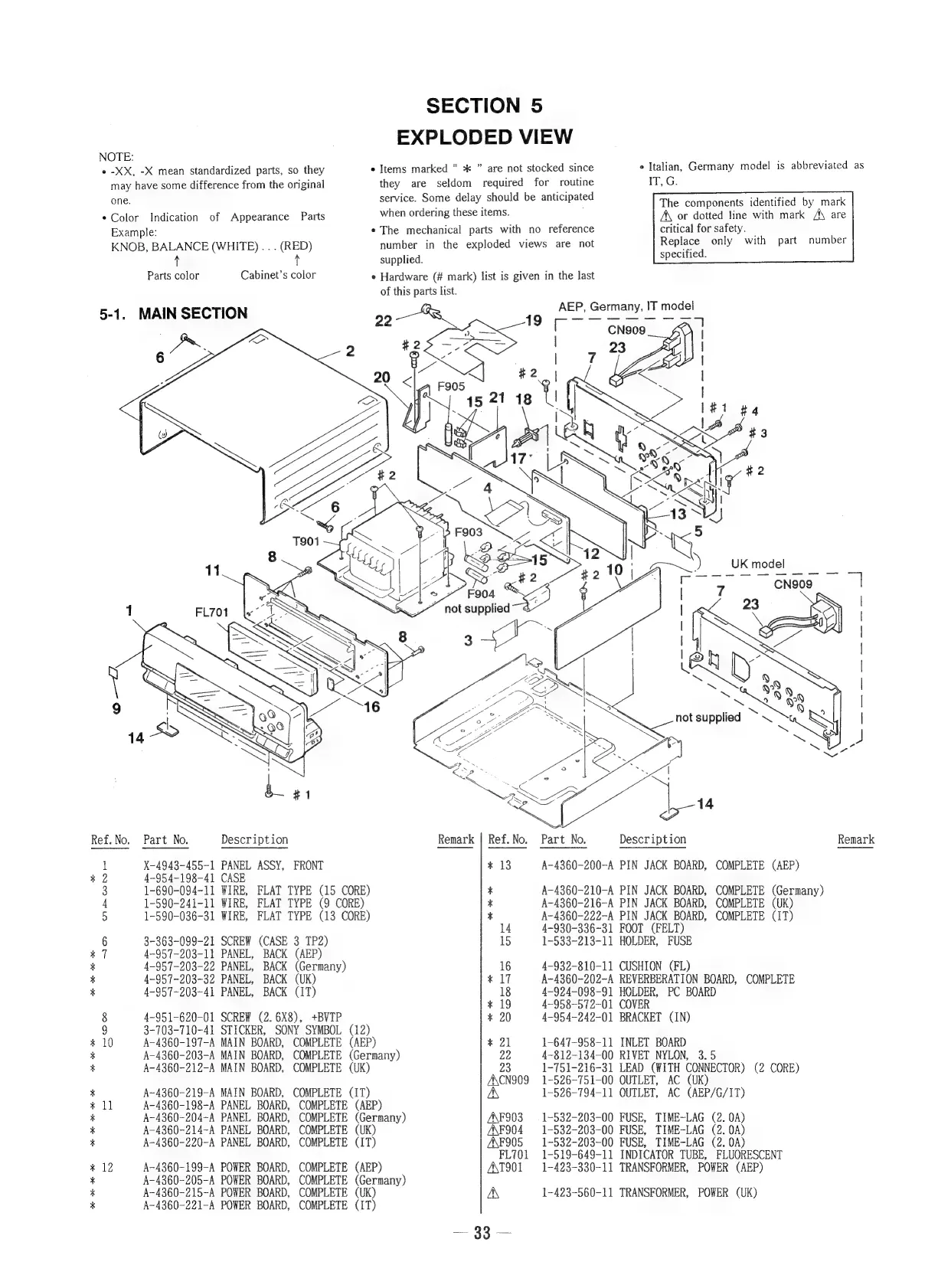

SECTION 5
EXPLODED VIEW
e Items marked “ * ” are not stocked since
they are seldom required for routine
service. Some delay should be anticipated
when ordering these items.
¢ The mechanical parts with no reference
number in the exploded views are not
supplied.
° Hardware (# mark) list is given in the last
of this parts list.
e Italian, Germany model is abbreviated as
IT, G.
The components identified by mark
A\ or dotted line with mark A\ are
critical for safety.
Replace only with part
specified.
number
5-1.
MAIN
SECTION
29
_
«&
AEP, Germany, IT model
et
Ref.No. Part No. Description Remark | Ref.No. Part No. Description Remark
l X-4943-455-1 PANEL ASSY, FRONT * 13 A-4360-200-A PIN JACK BOARD, COMPLETE (AEP)
* 2 4~-954-198-41 CASE
3 1-690-094-11 WIRE, FLAT TYPE (15 CORE) * A-4360-210-A PIN JACK BOARD, COMPLETE (Germany)
4 1-590-241-11 WIRE, FLAT TYPE (9 CORE) x A-4360-216-A PIN JACK BOARD, COMPLETE (UK)
5 1-590-036-31 WIRE, FLAT TYPE (13 CORE) * A-4360-222-A PIN JACK BOARD, COMPLETE (IT)
14 4-930-336-31 FOOT (FELT)
6 3-363-099-21 SCREW (CASE 3 TP2) 15 1-533-213-11 HOLDER, FUSE
k 7 4-957-203-11 PANEL, BACK (AEP)
k 4-957-203-22 PANEL, BACK (Germany) 16 4-932-810-11 CUSHION (FL)
* 4-957-203-32 PANEL, BACK (UK) * 17 A-4360-202-A REVERBERATION BOARD, COMPLETE
* 4-957-203-41 PANEL, BACK (IT) 18 4-924-098-91 HOLDER, PC BOARD
* 19 4-958-572-01 COVER
8 4~951-620-01 SCREW (2. 6X8), +BYTP * 20 4-954-242-01 BRACKET (IN)
9 3-703-710-41 STICKER, SONY SYMBOL (12)
* 10 A-4360-197-A MAIN BOARD, COMPLETE (AEP) * 21 1-647-958-11 INLET BOARD
k A-4360-203-A MAIN BOARD, COMPLETE (Germany) 22 4-812-134-00 RIVET NYLON, 3.5
x A-4360-212-A MAIN BOARD, COMPLETE (UK) 23 1-751-216-31 LEAD (WITH CONNECTOR) (2 CORE)
A\CN909 ~=1-526-751-00 OUTLET, AC (UK)
* A-4360-219-A MAIN BOARD, COMPLETE (IT) 1-526-794-11 OUTLET, AC (AEP/G/IT)
* 11 A-4360-198-A PANEL BOARD, COMPLETE (AEP)
* A-4360-204-A PANEL BOARD, COMPLETE (Germany) A\F903 — 1-532-203-00 FUSE, TIME-LAG (2. 0A)
x A-4360-214-A PANEL BOARD, COMPLETE (UK) A\F904 1-532-203-00 FUSE, TIME-LAG (2. 0A)
* A-4360-220-A PANEL BOARD, COMPLETE (IT) A\F905 1-532-203-00 FUSE, TIME-LAG (2. 0A)
FL701 1-519-649-11 INDICATOR TUBE, FLUORESCENT
* 12 A-4360-199-A POWER BOARD, COMPLETE (AEP) A\T901 = 1-423-330-11 TRANSFORMER, POWER (AEP)
* A~4360-205-A POWER BOARD, COMPLETE (Germany)
x A-4360-215-A POWER BOARD, COMPLETE (UK) A 1-423-560-11 TRANSFORMER, POWER (UK)
* A~-4360-221-A POWER BOARD, COMPLETE (IT)
