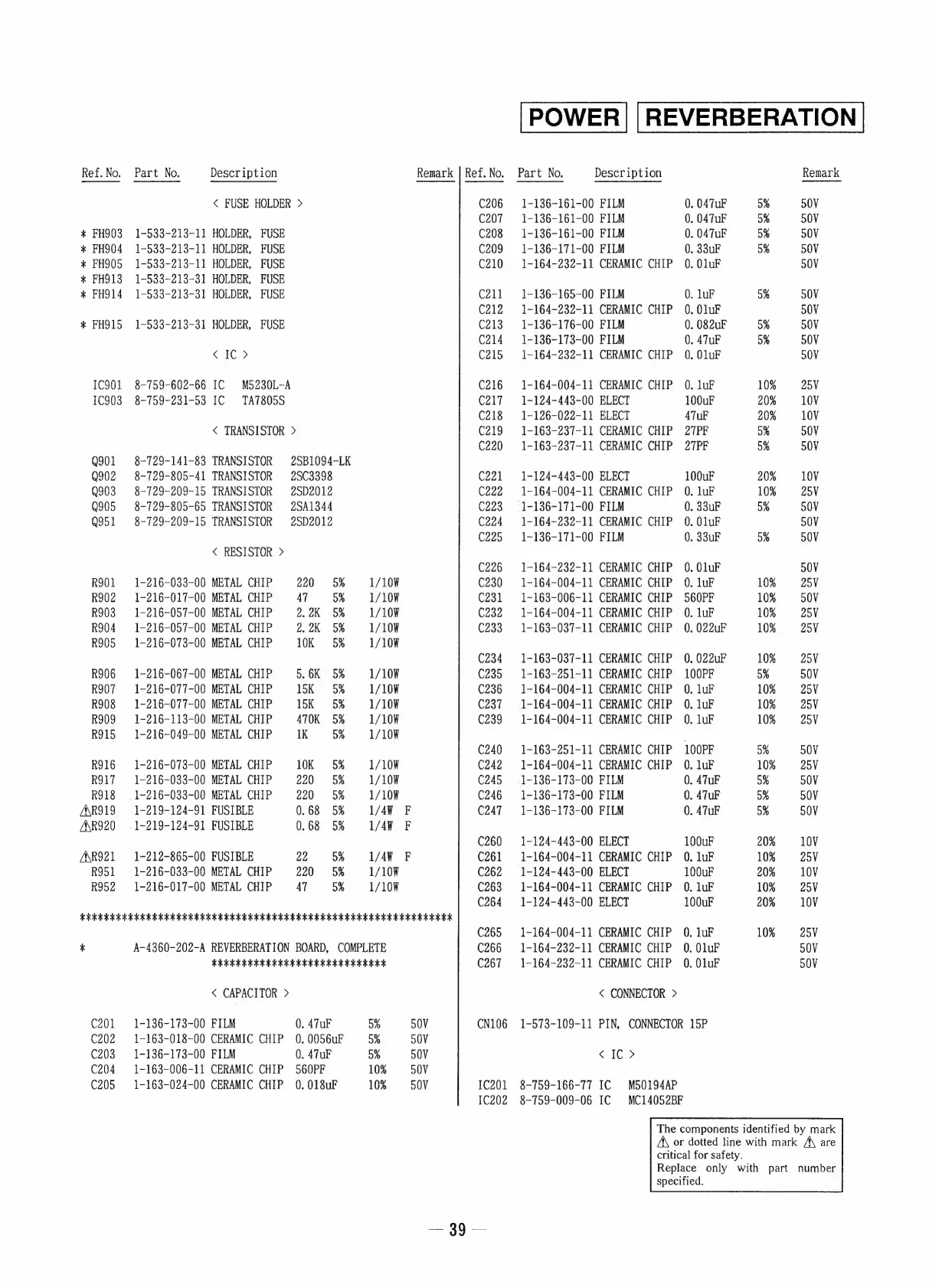

Sony SEQ-H3800 - Page 19

| REVERBERATION |
Ref.No. Part No. Description Remark | Ref.No. Part No. Description Remark
< FUSE HOLDER > C206 1-136-161-00 FILM 0. 047uF 5% 50V
C207 +1-136-161-00 FILM 0. 047uF 5% 50V
* FH903 1-533-213-11 HOLDER, FUSE C208 1-136-161-00 FILM 0. 047uF 5% 50V
* FH904 1-533-213-11 HOLDER, FUSE C209 =1-136-171-00 FILM 0. 33uF 5% 50V
* FH905 1-533-213-11 HOLDER, FUSE C210 1-164-232-11 CERAMIC CHIP 0. OluF 50V
* FH913 1-533-213-31 HOLDER, FUSE
* FH914 1-533-213-31 HOLDER, FUSE C211 1-136-165-00 FILM 0. luF 5% 50V
C212 1-164-232-11 CERAMIC CHIP 0. 0luF 50V
* FH915 1-533-213-31 HOLDER, FUSE C213 1-136-176-00 FILM 0. 082uF 5% 50V
C214 =1-136-173-00 FILM 0. 47uF 5% 50V
< IC > C215 1-164~-232-11 CERAMIC CHIP 0. OluF 50V
1C901 8-759-602-66 IC M5230L-A C216 1-164-004-11 CERAMIC CHIP 0. luF 10% 25V
1€903 8-759-231-53 IC TA7805S C217. ~=1-124-443-00 ELECT 100uF 20% 10V
C218 1-126-022-11 ELECT A7TuF 20% 10V
< TRANSISTOR > C219 1-163-237-11 CERAMIC CHIP 27PF 5% 50V
C220 1-163-237-11 CERAMIC CHIP 27PF 5% 50V
Q901 8-729-141-83 TRANSISTOR 2SB1094-LK
Q902 8-729-805-41 TRANSISTOR 2SC3398 C221 1-124-443-00 ELECT 100uF 20% 10V
Q903 8-729-209-15 TRANSISTOR 2SD2012 C222 1-164-004-11 CERAMIC CHIP 0. luF 10% 25V
Q905 8-729-805-65 TRANSISTOR 2SA1344 C223 =: 1-136-171-00 FILM 0. 33uF 5% 50V
Q951 8-729-209-15 TRANSISTOR 2SD2012 C224 1-164-232-11 CERAMIC CHIP 0. 0luF 50V
C225 1-136-171-00 FILM 0. 33uF 5% 50V
< RESISTOR >
C226 1-164-232-11 CERAMIC CHIP 0. OluF 50V
R901 1-216-033-00 METAL CHIP 220 = 5% 1/10¥ C230 1-164-004-11 CERAMIC CHIP 0. luF 10% 25V
R902 1-216-017-00 METAL CHIP 47 5% 1/10¥ C231 1-163-006-11 CERAMIC CHIP 560PF 10% 50V
R903 = 1-216-057-00 METAL CHIP 2.2K 5% 1/10W C232 1-164-004-11 CERAMIC CHIP 0. luF 10% 25V
R904 1-216-057-00 METAL CHIP 2.2K 5% 1/10¥ C233. 1-163-037-11 CERAMIC CHIP 0. 022uF 10% 25V
R905 1-216-073-00 METAL CHIP 10K 5% 1/10¥
C234 1-163-037-11 CERAMIC CHIP 0. 022uF 10% 25V
R906 1-216-067-00 METAL CHIP 5.6K 5% 1/10¥ C235 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
R907 1-216-077-00 METAL CHIP 15K 5% 1/10¥ C236 =1-164-004-11 CERAMIC CHIP 0. luF 10% 20V
R908 1-216-077-00 METAL CHIP 15K 5% 1/10¥ C237 = 1-164-004-11 CERAMIC CHIP 0. luF 10% 25V
R909 1-216-113-00 METAL CHIP ATOK 5% 1/10W C239 1-164-004-11 CERAMIC CHIP 0. luF 10% 25V
R915 1-216-049-00 METAL CHIP 1K on 1/10¥
C240 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
R916 1-216-073-00 METAL CHIP 10K 5% 1/10¥ C242 =1-164-004-11 CERAMIC CHIP 0. luF 10% 25V
R917 = 1-216-033-00 METAL CHIP 220 5h 1/104 C245 =: 1-136-173-00 FILM 0. 47uF o% o0V
R918 = 1-216-033-00 METAL CHIP 220 5h 1/104 C246 1-136-173-00 FILM 0. 47uF 5% 50V
AR919 =: 1-219-124-91 FUSIBLE 0.68 5% 1/4¥ F C247 = 1-186-173-00 FILM 0. 47uF 5% DOV
A\R920 = 1-219-124-91 FUSIBLE 0.68 5% 1/44 F
C260 1-124-443-00 ELECT 100uF 20% 10V
A\R921 ~—-1-212-865-00 FUSIBLE 22 ny 1/4¥ F C261 1-164-004-11 CERAMIC CHIP 0. luF 10% ZV
R951. = 1-216-033-00 METAL CHIP 220 = 5h 1/10¥ C262 = 1-124-443-00 ELECT 100uF 20% 10V
R952. 1-216-017-00 METAL CHIP 47 o% 1/10¥ C263 = 1-164-004-11 CERAMIC CHIP 0. luF 10% 20V
C264 1-124-443-00 ELECT 100uF 20% 10V
KEKARAKA RAK RAR ERA ERER ERK RER ARK AR AER ER AERA ERA E EERE RRA AR EERE
C265 = 1-164-004-11 CERAMIC CHIP 0. luF 10% 20V
k A-4360-202-A REVERBERATION BOARD, COMPLETE C266 =1-164-232-11 CERAMIC CHIP 0. 0luF 50V
KEKEKERERA RARER ERARE RARER ERE K C267 1-164-232-11 CERAMIC CHIP 0. OluF o0V
< CAPACITOR > < CONNECTOR >
C201 =1-136-173-00 FILM 0. 47uF ny 50V CN106 1-573-109-11 PIN, CONNECTOR 15P
C202 1-163-018-00 CERAMIC CHIP 0.0056uF 5% o0V
C203 = 1-136-173-00 FILM 0. 47uF o% 50V < IC >
C204 1-163-006-11 CERAMIC CHIP 560PF 10% 50V
C205 =1-163-024-00 CERAMIC CHIP 0. 018uF 10% 50V 1C201 8-759-166-77 IC M50194AP
1€202 8-759-009-06 IC MC14052BF
The components identified by mark
A\ or dotted line with mark A\ are
critical for safety.
Replace only with part number
specified.
