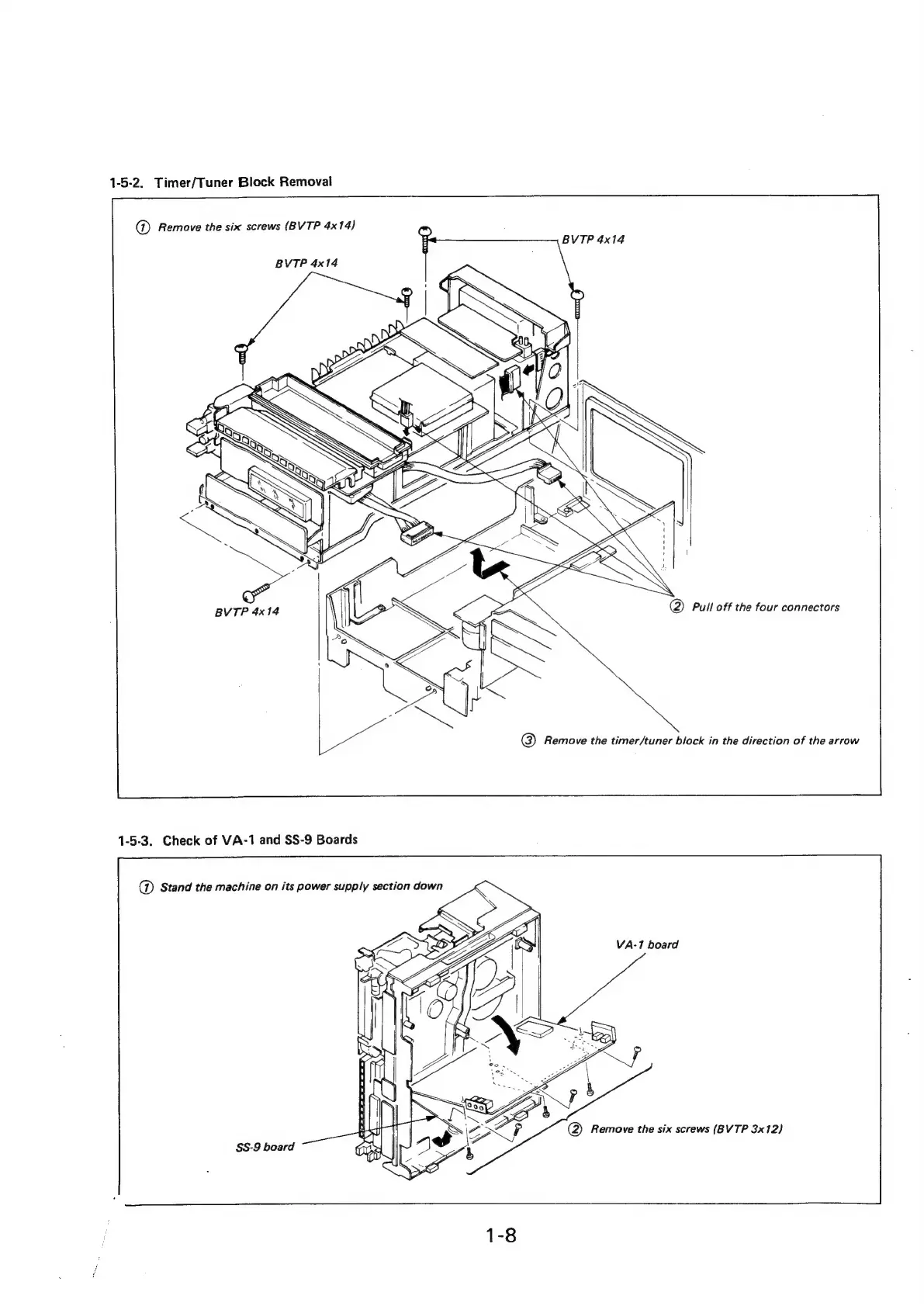

1-5-2.
Timer/Tuner
Block
Removal
@
Remove
the
six
screws
(BVTP
4x14)
BVTP
4x14
BVTP
4x14
@
Remove
the
timer/tuner
block
in
the
direction
of
the
arrow
VA-1
board
SS-9
board
