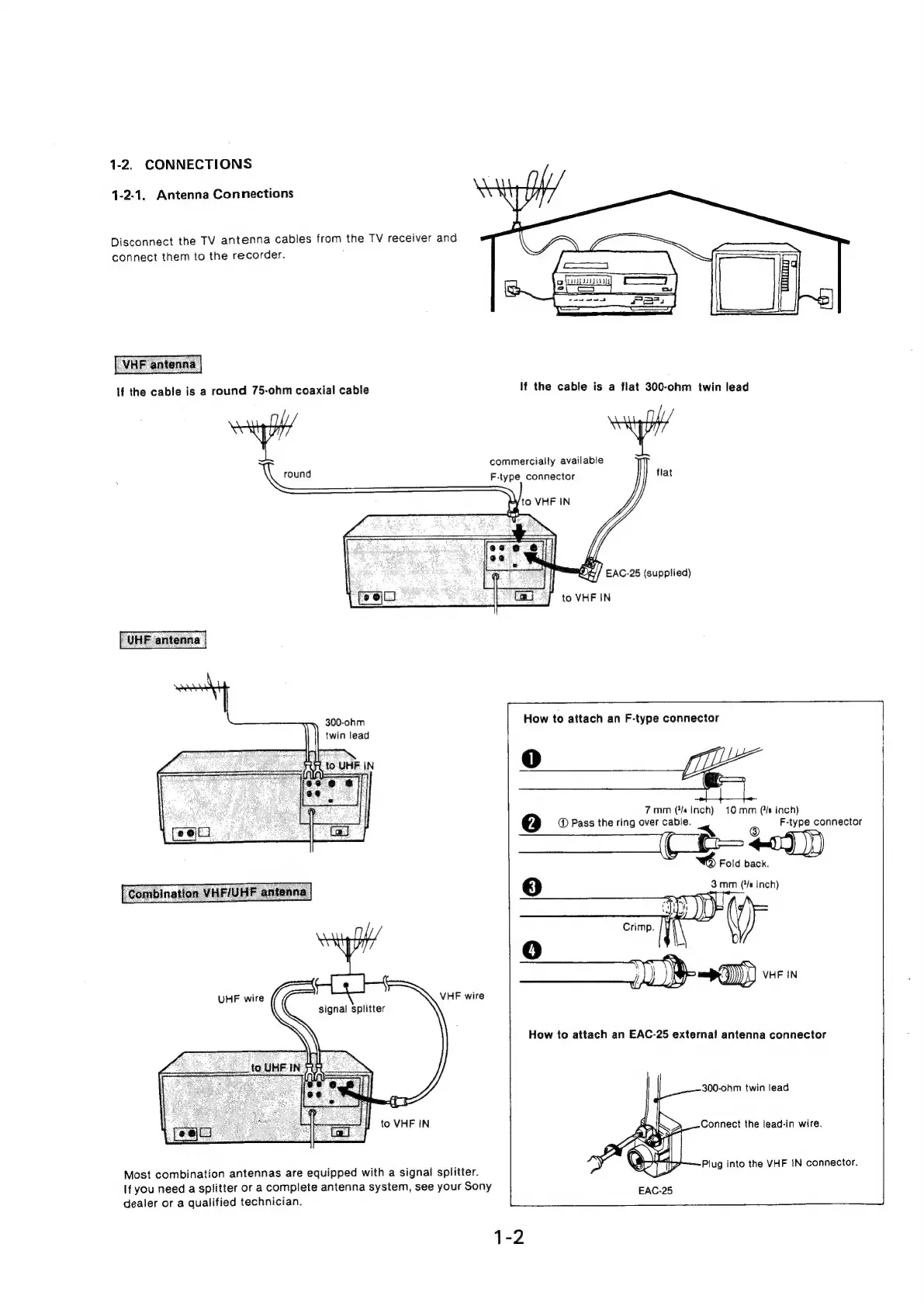

1-2. CONNECTIONS
1-2-1. Antenna Connections
Disconnect
the
TV
antenna
cables
from
the
TV
receiver
and
connect
them
to
the
recorder.
:
| VHF antenna
If
the
cable
is
a
round
75-ohm
coaxial
cable
If
the
cable
is
a
flat
300-ohm
twin
lead
commercially available
F-type connector flat
How to attach an F-type connector
oO
300-ohm
twin lead
7mm (la inch) 10mm (/s inch)
@Q © Pass the ring over cable. F-type connector
FB ea
“6 Fold back.
3mm (/e inch)
“Combination VHF/UHF antenna
UHF
wire
VHF
wire
signal splitter
How to attach an EAC-25 external antenna connector
300-ohm twin lead
Connect the lead-in wire.
Most
combination
antennas
are
equipped
with
a
signal
splitter.
Plug
into
the
VHF
IN
connector.
If
you
need
a
splitter
or
a
complete
antenna
system,
see
your
Sony
dealer
or
a
qualified
technician.
EAC-25
1-2
