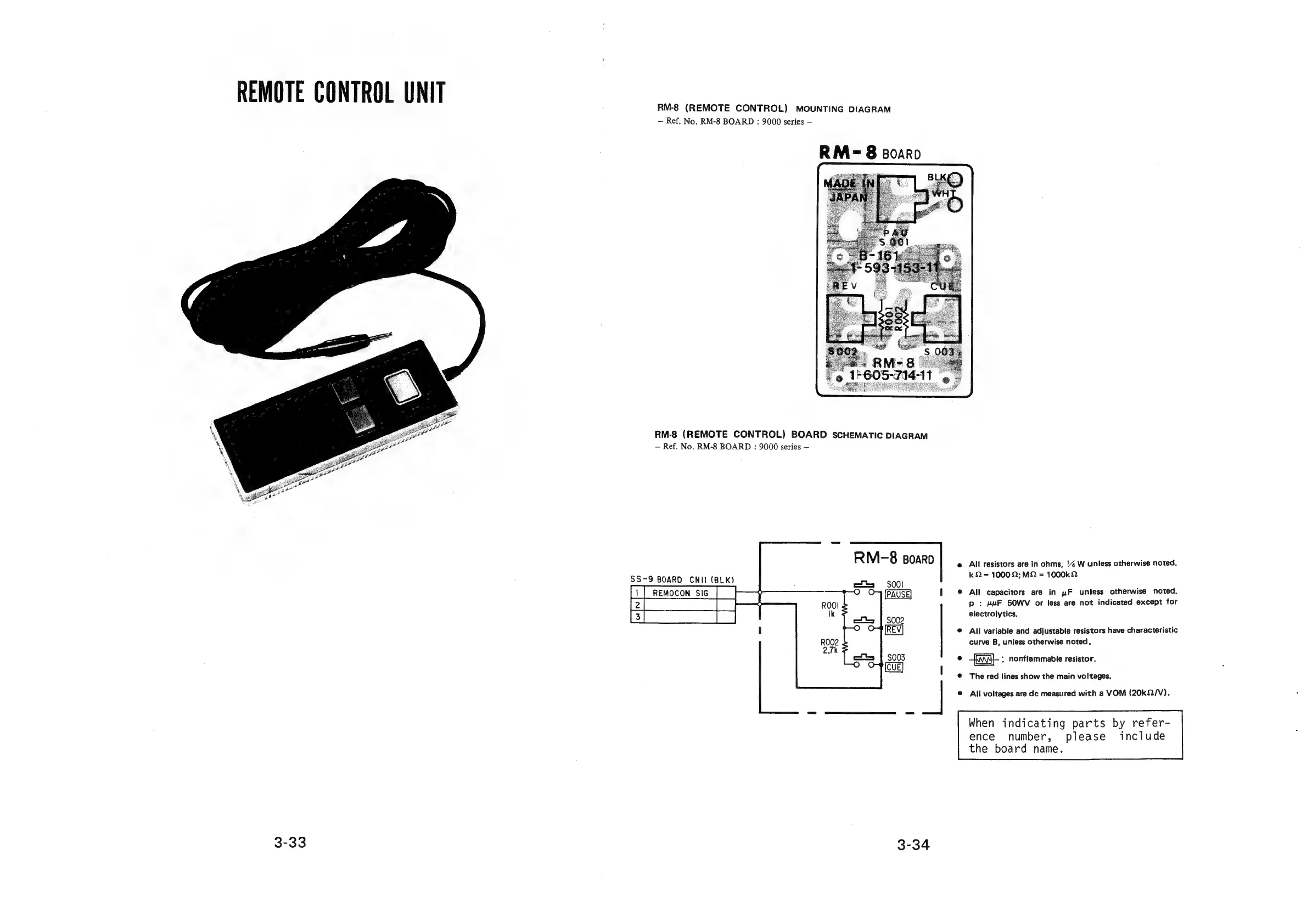

REMOTE CONTROL UNIT
3-33
RM-8 (REMOTE CONTROL) MOUNTING DIAGRAM
— Ref. No. RM-8 BOARD : 9000 series —
RM-= 8 soarp
RM-8 (REMOTE CONTROL) BOARD SCHEMATIC DIAGRAM
— Ref. No. RM-8 BOARD : 9000 series —
SS-9 BOARD CNII (BLK)
RM-8 sBoarp
a S00!
PAUSE,
$002
$003
CUE
3-34
All resistors are in ohms, 1% W unless otherwise noted.
k2= 10002; MQ = 1000k2
All capacitors are in uF unless otherwise noted.
p : “uF SOWV or less are not indicated except for
electrolytics.
All variable and adjustable resistors have characteristic
curve B, unless otherwise noted.
a+ : nonflammable resistor.
The red lines show the main voltages.
All voltages are dc measured with a VOM (20k22/V).
When indicating parts by refer-
ence number, please include
the board name.
