Sony SL-5000 - Section 4 Exploded Views; Front Assembly Exploded View

SECTION 4
EXPLODED VIEWS
Note:
e Items with no part number and no description are not e Items marked “6” are not stocked since they are seldom
stocked because they are seldom required for routine required for routine service. Some delay should be antici-
service, pated when ordering these items.
@ All screws are Phillips (cross recess) type unless otherwise e@ The construction parts of an assembled part are indicated
noted. with a collation number in the remark column.
e As to the part numbered with E-, refer to the electrical
Parts list.
Les composants identifiés par le hachuré et la marque
A sont essentiels pour la sécurité, Ne remplacer
que par le numéro de piéce spécifiée.
The components identified by shading and A\ mark
are critical for safety. Replace only with part number
specified.
A

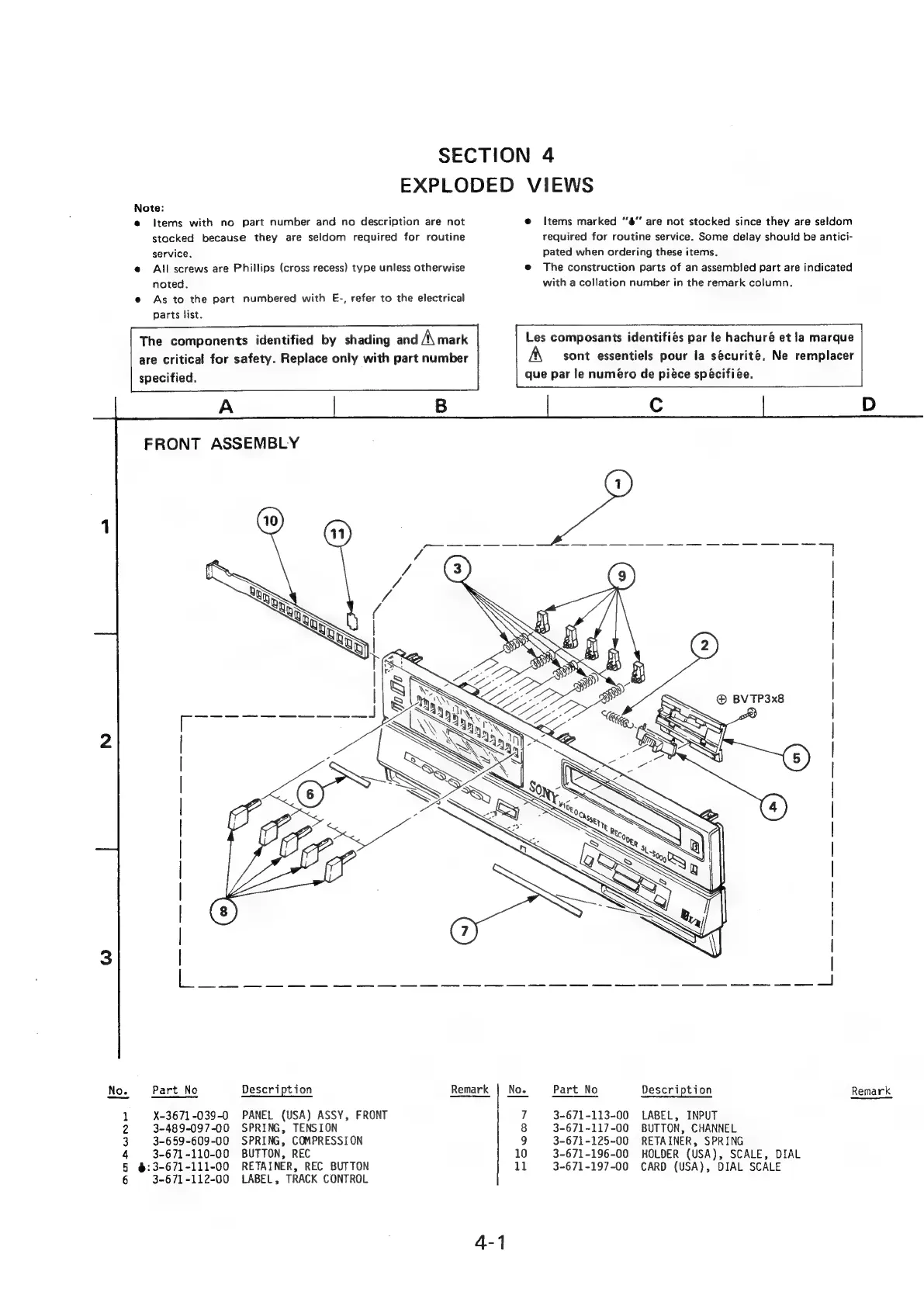

FRONT ASSEMBLY
No. Part No Description Remark | No. Part No Description Remark
X-3671-039-0 PANEL (USA) ASSY, FRONT
3-489-097-00 SPRING, TENSION
3-659-609-00 SPRING, COMPRESSION
1 3-671-113-00 LABEL, INPUT
2
3
4 3-671-110-00 BUTTON, REC 1
5 1
6
3-671-117-00 BUTTON, CHANNEL
3-671-125-00 RETAINER, SPRING
3-671-196-00 HOLDER (USA), SCALE, DIAL
3-671-197-00 CARD (USA), DIAL SCALE
FoOowoOn
$:3-671-111-00 RETAINER, REC BUTTON
3-671-112-00 LABEL, TRACK CONTROL
4-1
