Sony SLV-D920 E1 - Page 2

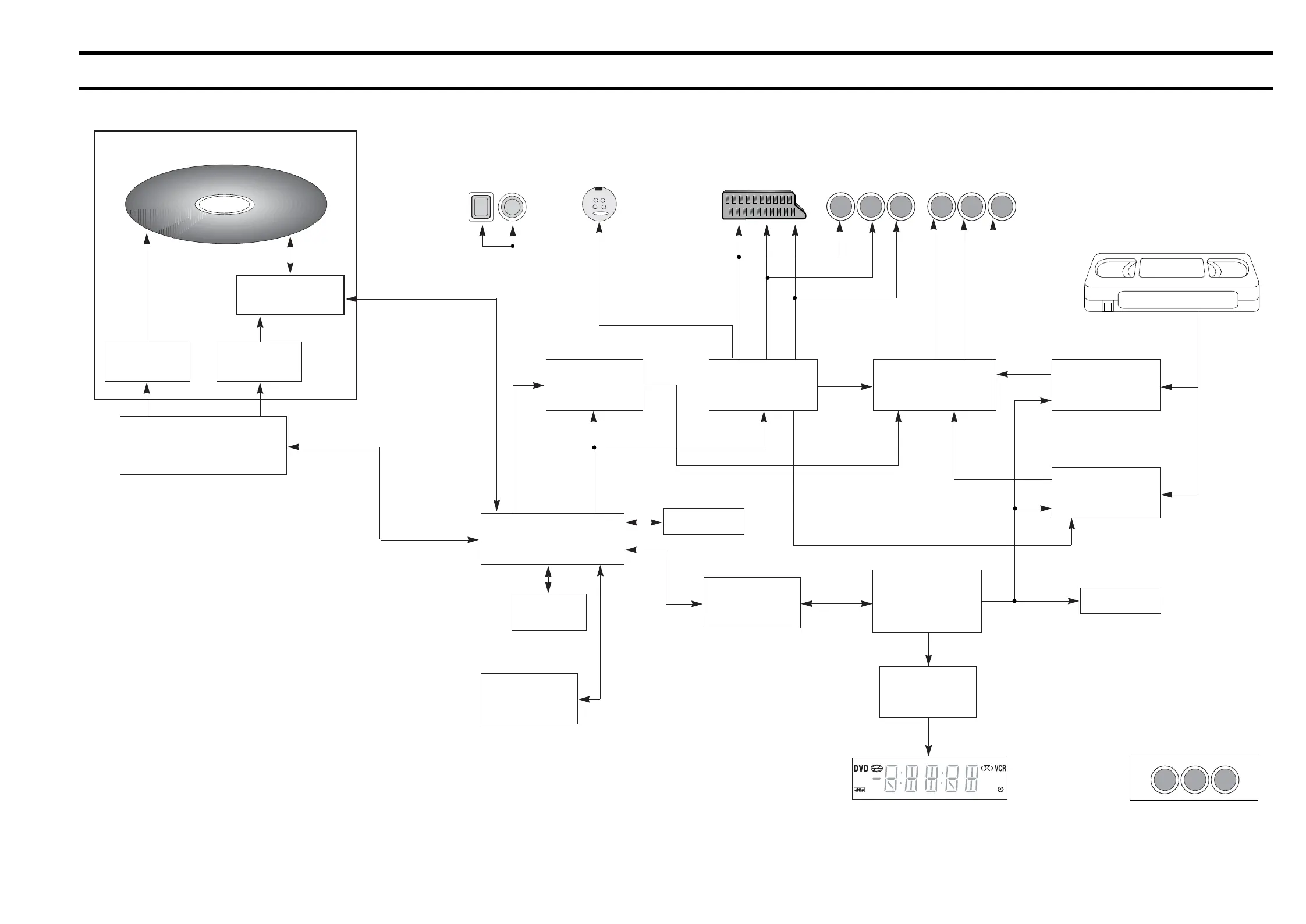

3. Block Diagram
3-23-1
DECK ASS'Y (DP-15)
DRIC1
(FAN8004)
Motor Driver
Disk Motor
Pick-up & I/V Amp
Feed Motor
DIC3 (24C02)
EPROM
Coaxial
Super
DIC1
MN20S0005
A/V Decoder
AIC2
(PCM1752KE)
2CH Audio DAC
IC701
(PT6961)
LED Drive
(DT701)
VIC1
(LA73054)
Video Amp 6CH S/W
AUDIO L/R
AUDIO L/R
DIC2
AM26LV160B
IMB Flash Memory
DIC4
(TC74VHCT125)
Level Shifter
IC802
(Bu4053)
output signal switch
IC501
(LA72646)
Hi-FI Audio Processor
IC301
(LA71750EM)
Video Signal Processor
IC601
(uPD7B4928GF)
VCR Main Micom
Pb COMPONENT
A/V Common
Y Pr AUDIO L VIDEO AUDIO R
Front A/V Jack
Optical
DIC5 64MB SD RAM
IC605 EEPROM
STEREO
SCART JACK
RF/LD Control
SLV-D920 B/D920 E/D920 N/D920 R/D925 E/
D930 D/D930 GI/D960P B/D960P E
