Sony SLV-E850B - FR-128 Mode Control Schematic Diagram

Sony SLV-E850B
18 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
SLV-E850B/E850UX/E880EG/F900B/F900NP/F900UX/F900VC/F990B/F990NP/F990UX/F990VC

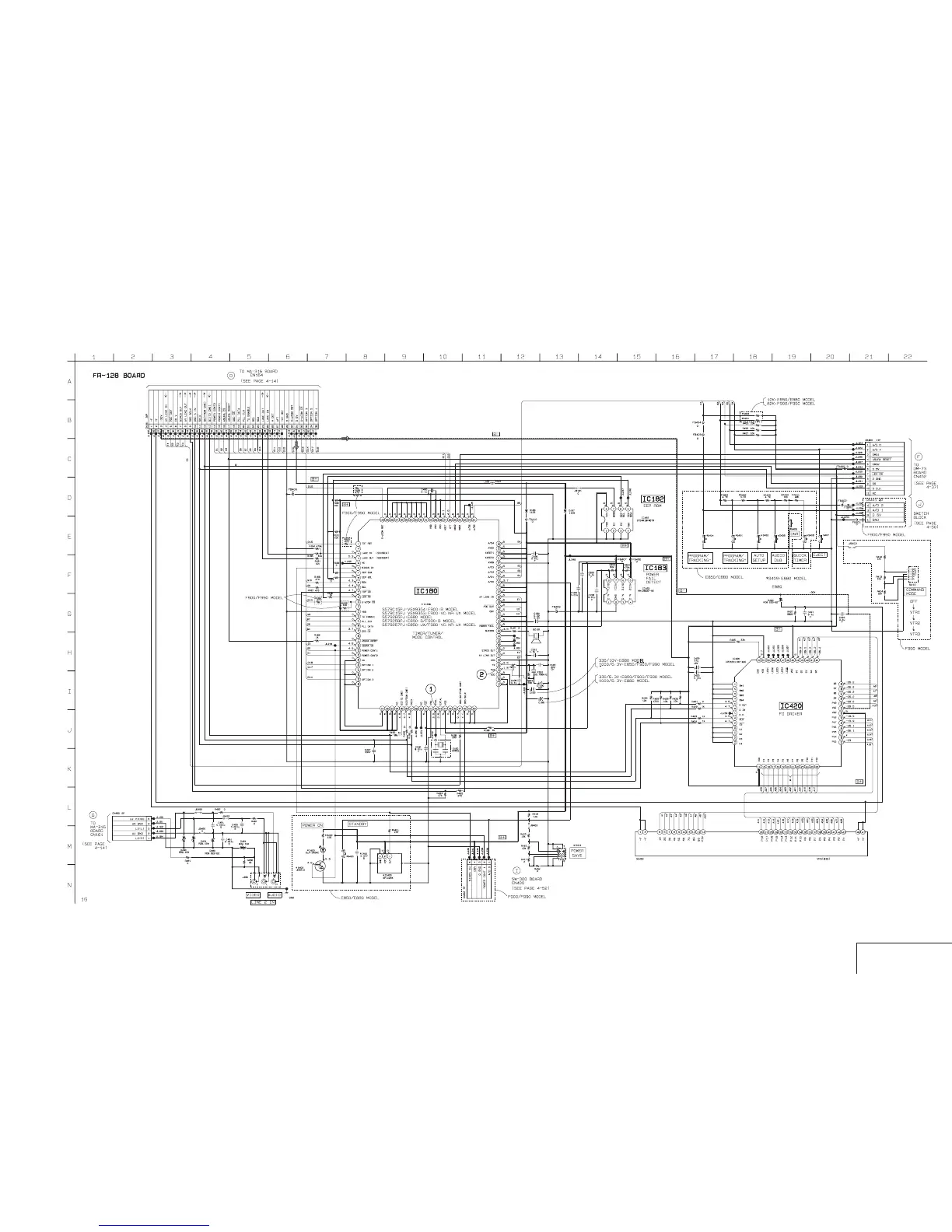

FR-128 (MODE CONTROL) SCHEMATIC DIAGRAM
— Ref. No.: FR-128 Board; 3,000 Series —
4-31 4-32
MODE CONTROL
FR-128
