SLV-E850B/E850UX/E880EG/F900B/F900NP/F900UX/F900VC/F990B/F990NP/F990UX/F990VC
4-41 4-42
DNR PROCESSOR
NR-26

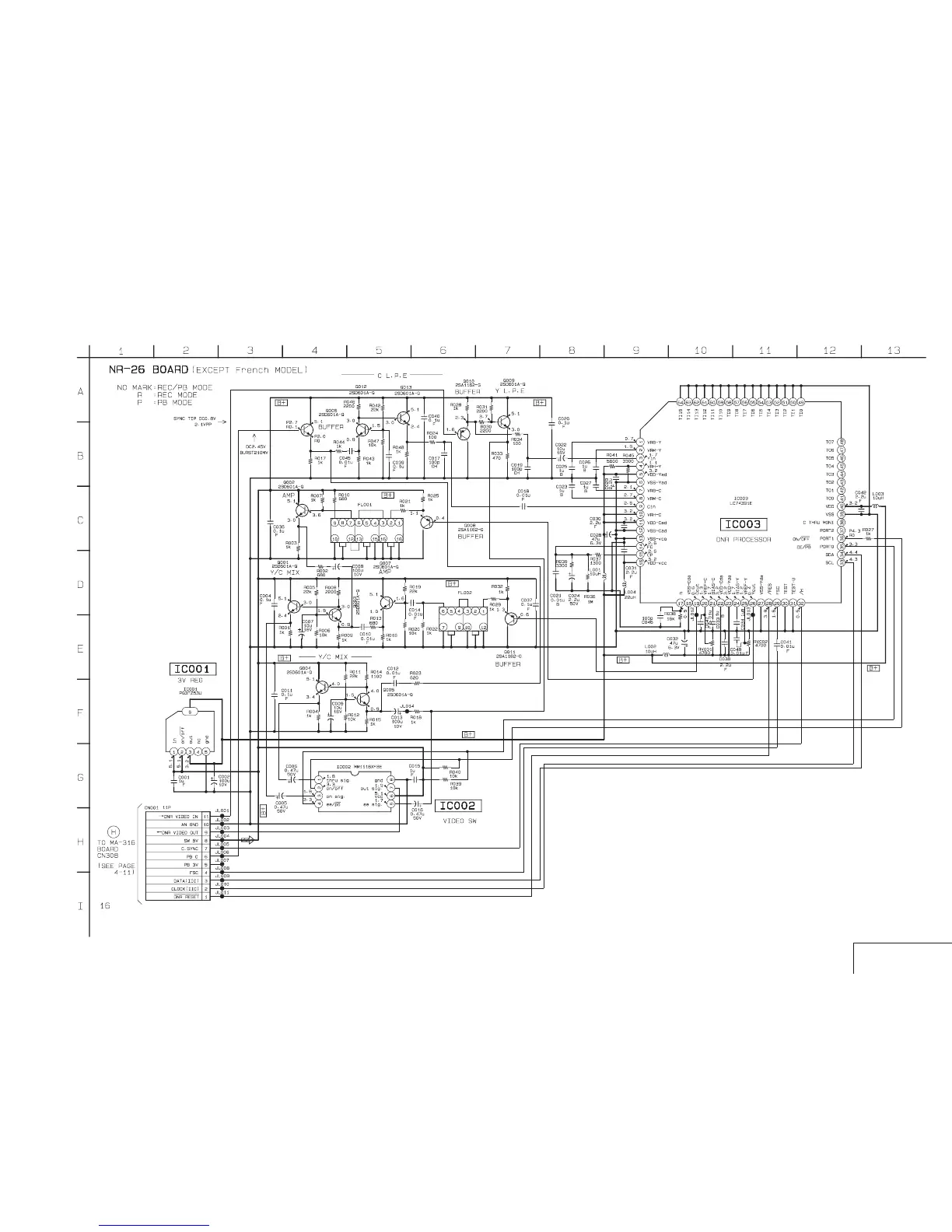

NR-26 (DNR PROCESSOR) SCHEMATIC DIAGRAM
— Ref. No.: NR-26 Board; 6,000 Series —
