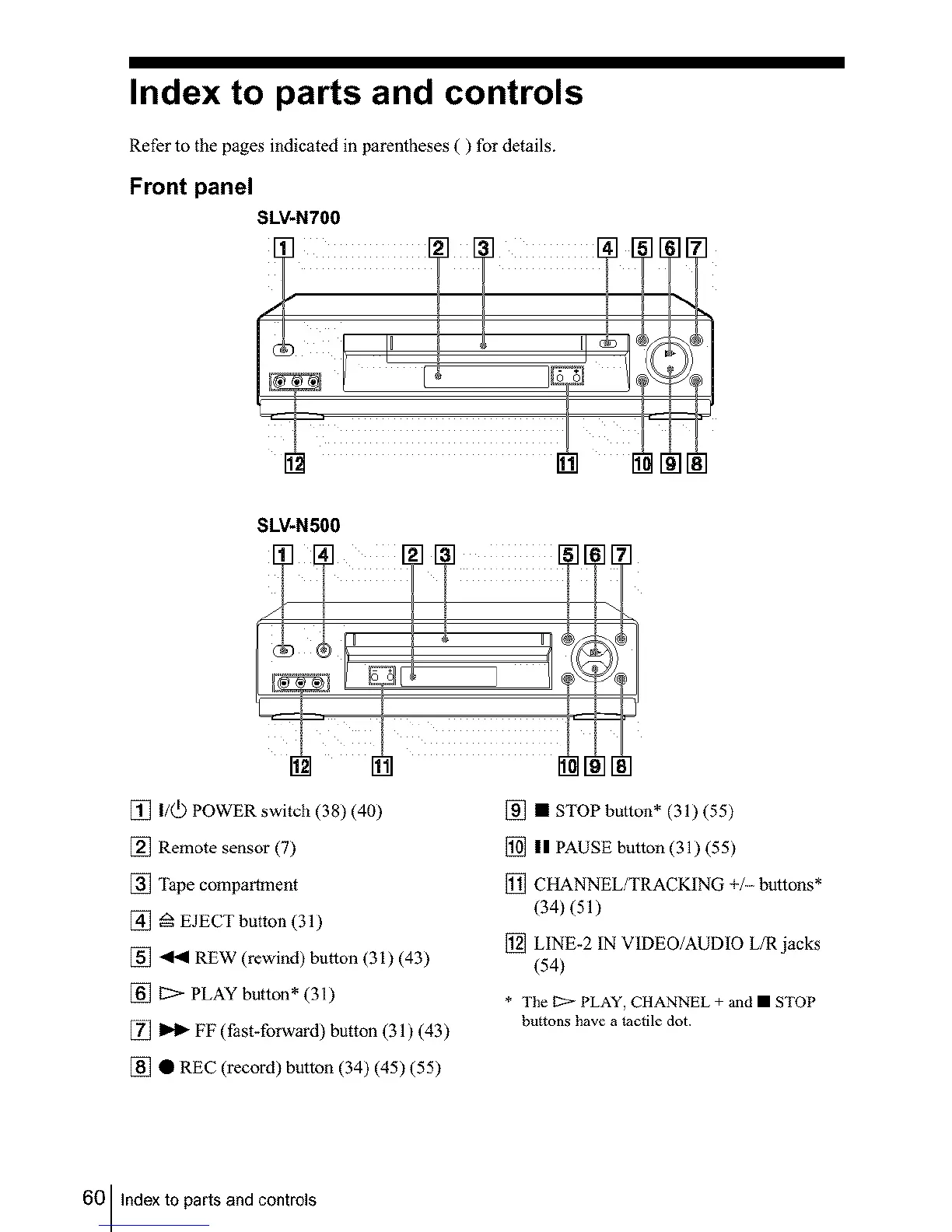

Index to parts and controls
Refer to the pages indicated in parentheses ( ) for details.
Front panel
SLV-N700
SLV-N500
]
[] I/(_) POWER switch (38) (40)
[] Remote sensor (7)
[] Tape compartment
[] _ EJECT button (31)
[] 4_1 REW (rewind) button (31) (43)
[] _ PLAY button* (31)
[] _ FF (fast-forward) button (31) (43)
[] • REC (record) button (34) (45) (55)
[] • STOP button* (31) (55)
[] |l PAUSE button (31) (55)
[] CHANNEL/TRACKING +/- buttons*
(34) (51)
[] LINE-2 IN VIDEO/AUDIO L_ jacks
(54)
* The _ PLAY, CHANNEL + and • STOP
bnttons have a tactile dot.
60 Index to parts and controls
