System Configuration
Operating Multiple Cameras Using Multiple Remote Controllers
What you can do with this system
• You can connect up to 112 cameras and five remote controllers.
• The joystick of the remote controller allows comfortable pan/tilt and zoom operations.

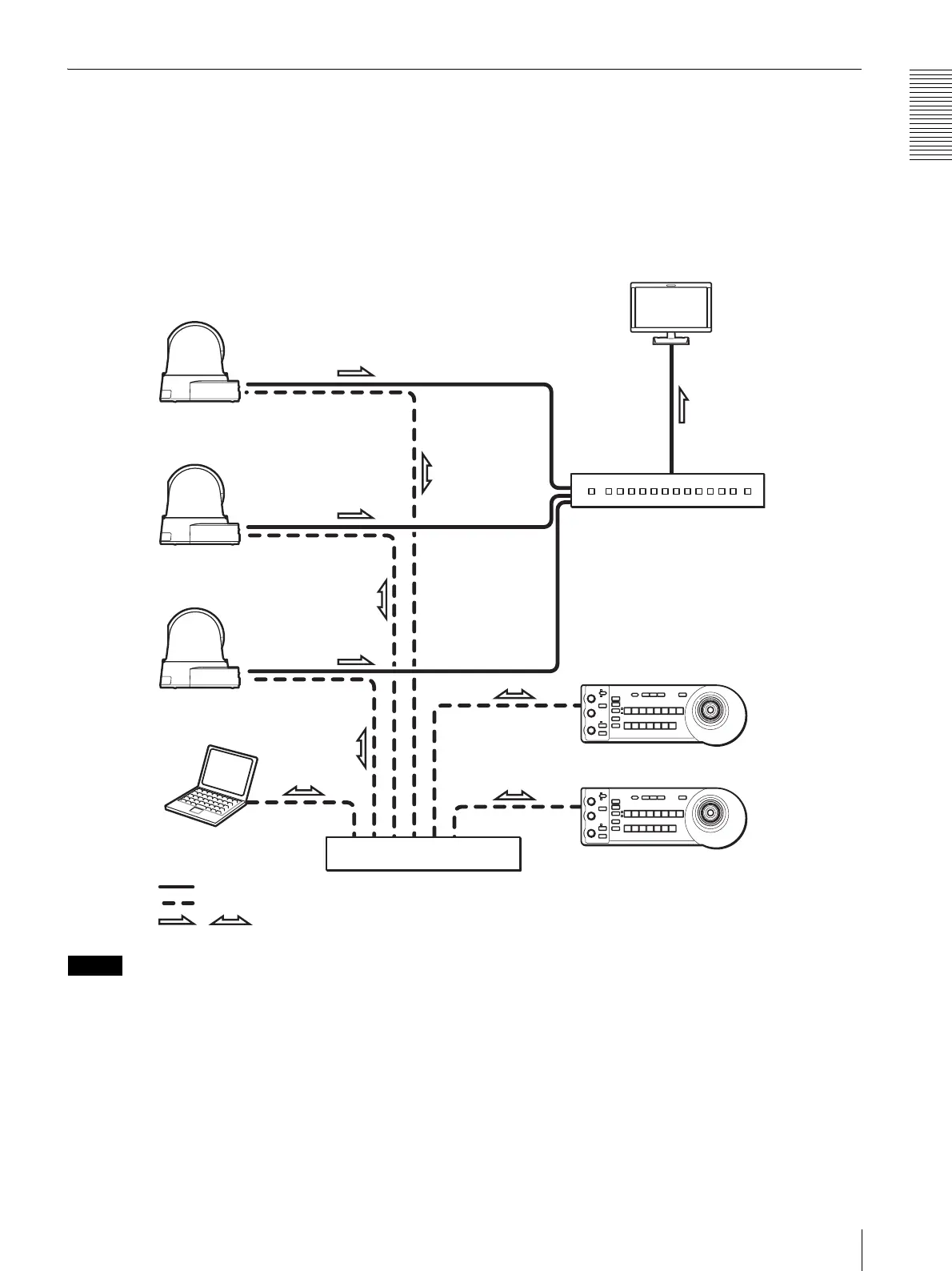

System Configuration
Notes
• You cannot use the RS-422 connection when using the LAN connection.
• When you control the camera by using the LAN connection, use a shielded twisted pair network cable that is category
5 or higher.
,
HD video monitor
PC for the setting
Camera
Video signal
Remote Control (LAN) signal
Signal flow
Video switcher
Remote Controller (not supplied)
Switching hub
Camera
Camera
Remote Controller (not supplied)
To Next Page
