Sony SRS-D211 - Subwoofer Section Exploded View

8
SRS-D211
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
SECTION 3
EXPLODED VIEWS

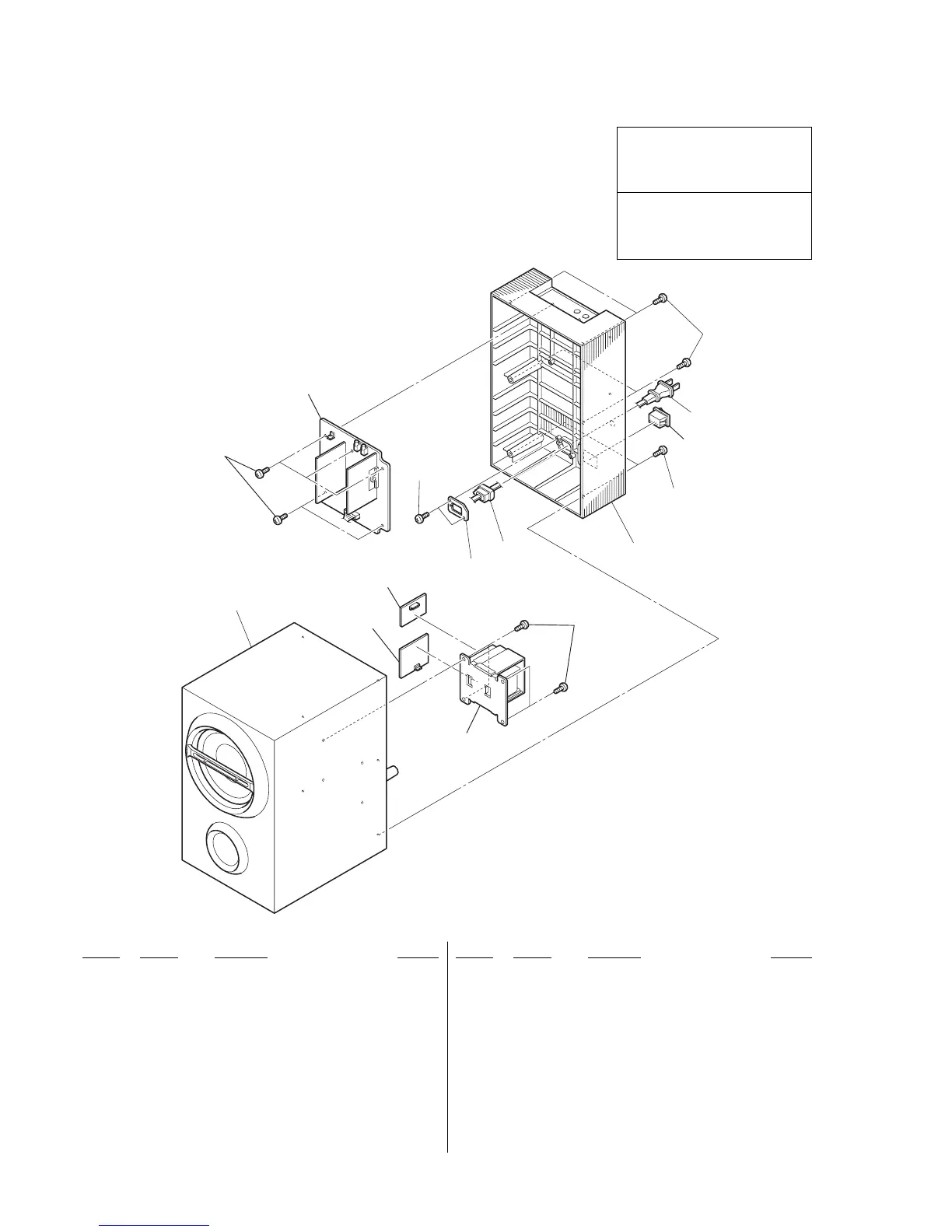

3-1. SUBWOOFER SECTION
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Color indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) … (RED)
↑↑
Parts color Cabinet's color
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Accessories are given in the last of this parts
list.
• Abbreviation
CND : Canadian model
SP : Singapore model
KR : Korean model
C&SA : Central and South American model
The components identified by mark 0 or
dotted line with mark 0 are critical for
safety.
Replace only with part number specified.
Les composants identifiés par une
marque 0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
1 X-2055-164-1 CABINET, MAIN SUB ASSY (BLACK) (US, C&SA)
1 X-2055-332-1 CABINET, MAIN SUB ASSY (SILVER) (US)
1 X-2055-397-1 CABINET, MAIN SUB ASSY (SILVER)
(CND, SP, KR)
2 3-254-144-11 SCREW (B3), (+) BV TAPPING
3 A-1092-391-A AMP BOARD, COMPLETE (US, CND, C&SA)
3 A-1108-814-A AMP BOARD, COMPLETE (SP, KR)
4 A-1104-247-A TRANS A BOARD, COMPLETE (US, CND, C&SA)
4 A-1113-980-A TRANS A BOARD, COMPLETE (SP, KR)
5 2-102-924-01 BRACKET, CORD
* 6 3-703-244-00 BUSHING (2104), CORD
7 3-252-829-01 SCREW (B3), (+) BV TAPPING
8 2-345-700-01 CABINET (W), REAR (US, CND, C&SA)
8 2-345-700-61 CABINET (W), REAR (SP, KR)
0 9 1-769-079-23 CORD, POWER (KR)
0 9 1-777-071-23 CORD, POWER (SP)
0 9 1-783-820-11 CORD, POWER (US, CND, C&SA)
0 S901 1-762-876-11 SWITCH, AC POWER (SP, KR)
0 T901 1-443-655-11 TRANSFORMER, POWER (US, CND, C&SA)
0 T901 1-443-696-11 TRANSFORMER, POWER (SP, KR)
4
1
2
2
3
5
6
8
9
7
7
7
T901
not supplide
S901
Ver. 1.1
