Sony SRS-D313 - SRS-D313 Schematic Diagram - All Sections

88
SRS-D313

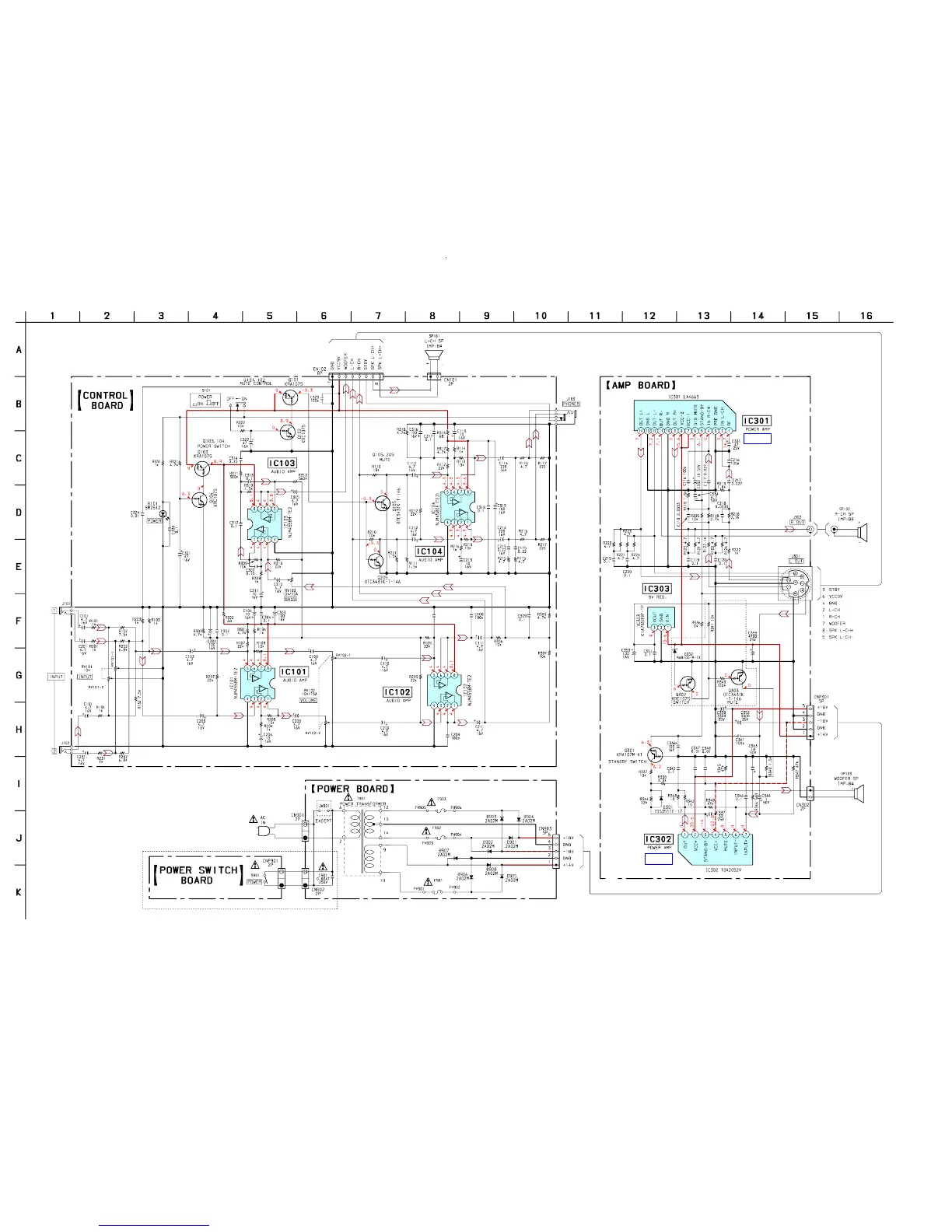

2-4. SCHEMATIC DIAGRA – ALL SECTION –
• See page 5 for IC Block Diagrams.
Ver 1.4 2002.11
AEP, UK,
AEP, UK, AUS
AUS
*F901
T3.15AL/250V : AEP, UK, JE1, SP, AUS
3.15A/125V : US, CND, E, JE2
*
*
*
*F902, F903
T1.25AL/250V : AEP, UK, JE1, SP, AUS
1.25A/125V : US, CND, E, JE2
IC B/D
IC B/D
AEP, UK, AUS
