SRS-D313
SECTION 3
EXPLODED VIEWS
NOTE:
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Accessories and packing materials are given in
the last of this parts list.
•Abbreviation
CND : Canadian model.
JE1 : 220V AC Area in Tourist model.
JE2 : 120V AC Area in Tourist model.
SP : Singapole model.
AUS: Australian model.
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 X-3381-088-1 CABINET (UPPER) ASSY (US,CND)
1 X-3381-278-1 CABINET (UPPER) ASSY (E,JE1,JE2,SP)
1 X-3381-974-1 CABINET (UPPER) ASSY (AEP,UK,AUS)
∗ 2 A-3052-742-A AMP BOARD, COMPLETE (US,CND,E,JE2)
∗ 2 A-3170-333-A AMP BOARD, COMPLETE (AEP,UK,AUS)
∗ 2 A-3170-342-A AMP BOARD, COMPLETE (JE1,SP)
∗ 3 A-3052-743-A POWER BOARD, COMPLETE (US,CND)
∗ 3 A-3170-334-A POWER BOARD, COMPLETE
(AEP,UK,JE1,SP,AUS)
∗ 3 A-3170-563-A POWER BOARD, COMPLETE (E,JE2)
0 5 X-3381-090-1 PANEL ASSY, REAR (US,CND)
0 5 X-3381-976-1 PANEL ASSY, REAR (AEP,UK,JE1,SP)
0 5 X-3382-065-1 PANEL ASSY, REAR (E,JE2)
0 5 X-3382-883-1 PANEL ASSY, REAR (AUS)
9 X-3381-089-1 BASE ASSY (WOOFER) (US,CND)
9 X-3381-279-1 BASE ASSY (WOOFER) (E,JE1,JE2,SP)
9 X-3381-975-1 BASE ASSY (WOOFER) (AEP,UK,AUS)
10 4-984-729-01 FOOT, RUBBER
11 3-232-664-01 FOOT, RUBBER
12 3-840-486-12 CUSHION, SPEAKER
13 3-235-070-01 CUSHION (D)
14 3-233-814-01 CUSHION (A), WOOFER
15 3-228-887-01 ABSORBENT, ACOUSTIC
16 3-233-815-01 CUSHION (B), WOOFER
17 3-233-816-01 CUSHION (C), WOOFER
18 1-682-209-11 POWER SWITCH BOARD (AEP, UK,AUS)
0 T901 1-437-437-11 TRANSFORMER, POWER (US,CND,E,JE2)
0 T901 1-437-438-11 TRANSFORMER, POWER (AEP,UK,JE1,SP,AUS)
SP103 1-544-896-11 SPEAKER (100W101)
#1 7-685-547-19 SCREW +BTP 3X10 TYPE2 N-S
#2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 SLIT
#3 7-685-646-79 SCREW +P 3X8 TYPE2 NON-SLIT
#7 7-685-647-79 SCREW +BVTP 3X10 TYPE2 SLIT (AEP,UK,AUS)

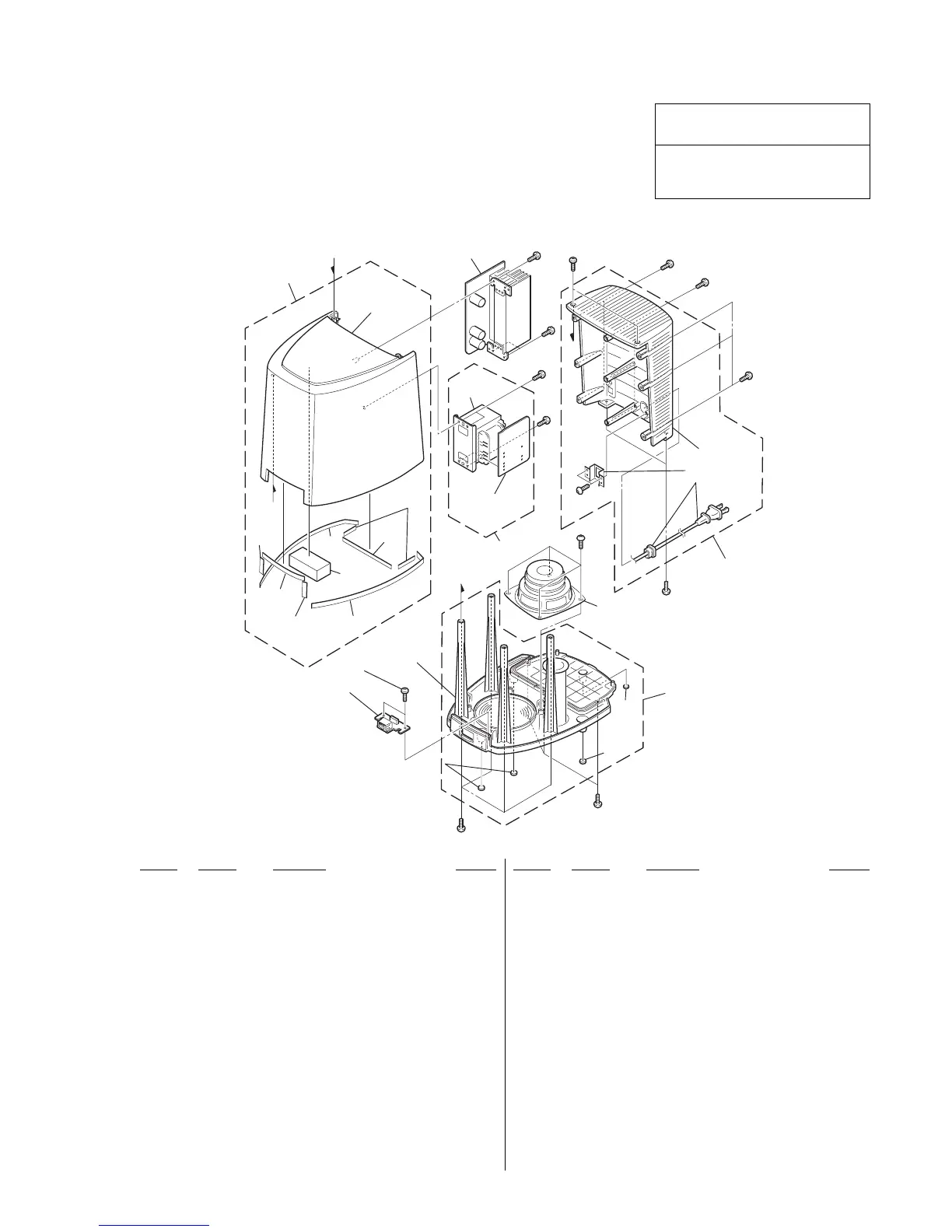

3-1. AMP SECTION
Ver 1.4 2002.11
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
T901
SP103
not
supplied
not
supplied
not
supplied
not
supplied
#2
#2
#3
#2
#2
#2
#2
#2
#1
#2
#2
#2
#2
5
11
18
#7
15
17
1
16
14
13
12
12
14
11
10
a
a
b
b
9
3
2
