Sony SS-C990 - SS-WS551 Sub Woofer Exploded View

4
SS-C990/CT551/SS880/TS551/WS551

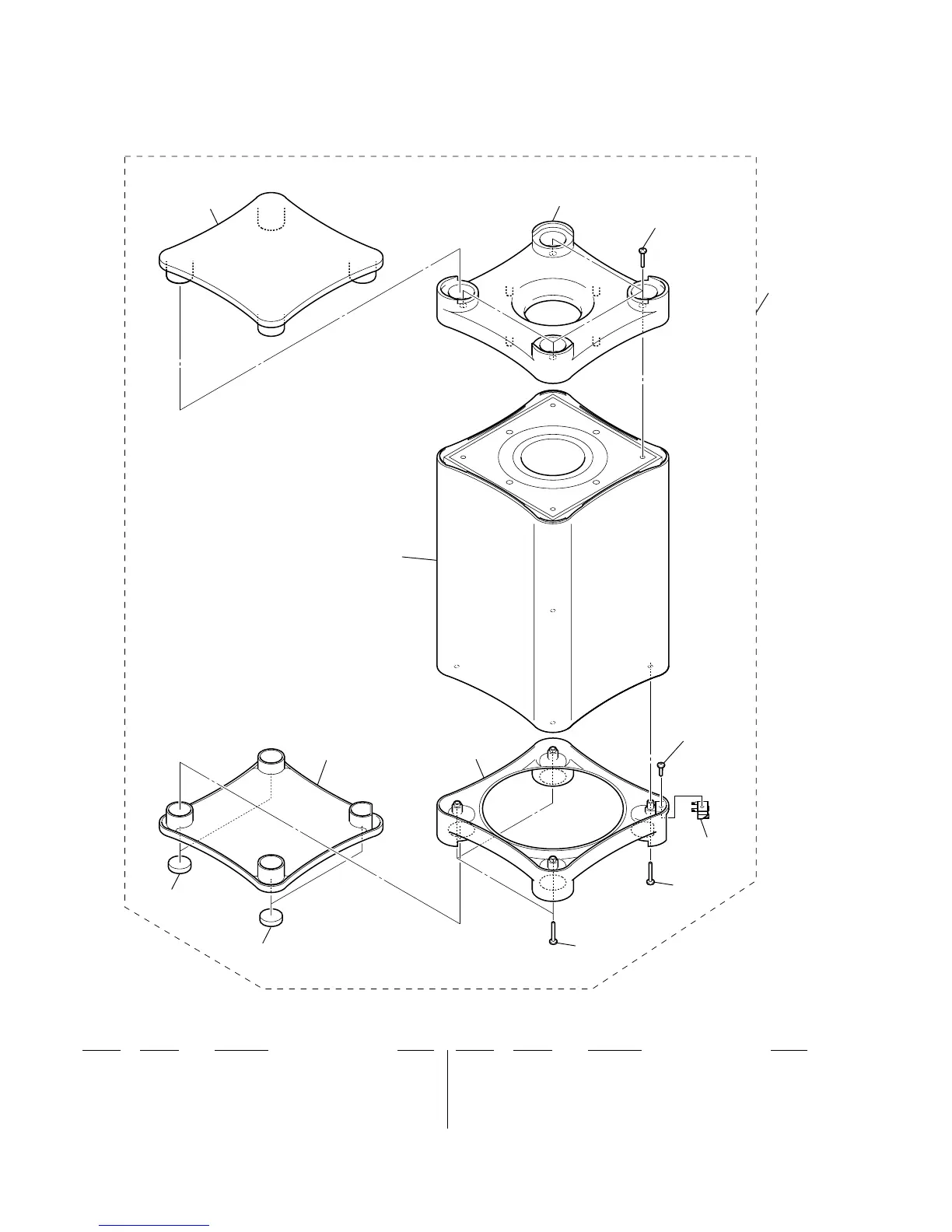

1-3. SS-WS551 (SUB WOOFER)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 X-4954-953-1 COVER SUB ASSY
102 4-240-670-01 PANEL, TOP
103 4-241-456-01 SCREW (4X20) (+B) (BZN), WOOD
104 4-240-666-01 PANEL, BOTTOM
105 X-4954-952-1 BASE SUB ASSY
106 4-240-669-01 FOOT
107 4-243-372-01 SCREW (3.5X10) (+B) (BZN)
108 4-243-370-01 SCREW (4X25) (+B) (BZN)
109 A-4467-964-A SUB WOOFER SPK ASSY
101
102
103
109
104
105
106
106
107
108
108
not supplied
not supplied
Ver 1.1
