4
SS-CT100D/WGV100D/ZX80DP/ZX100D/ZX100DP
Note for Printed Wiring Boards and Schematic Diagrams
Note on Printed Wiring Board:
X : parts extracted from the component side.
Y : parts extracted from the conductor side.
: Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
Indication of transistor
Note on Schematic Diagram:
All capacitors are in µF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics
and tantalums.
All resistors are in and
1
/
4
W or less unless otherwise
specified.
C : panel designation.
A : B+ Line.
Voltages are dc with respect to ground under no-signal
conditions.
no mark : POWER ON
Voltages are taken with a VOM (Input impedance 10 M).
Voltage variations may be noted due to normal produc-
tion tolerances.
SECTION 3
DIAGRAMS

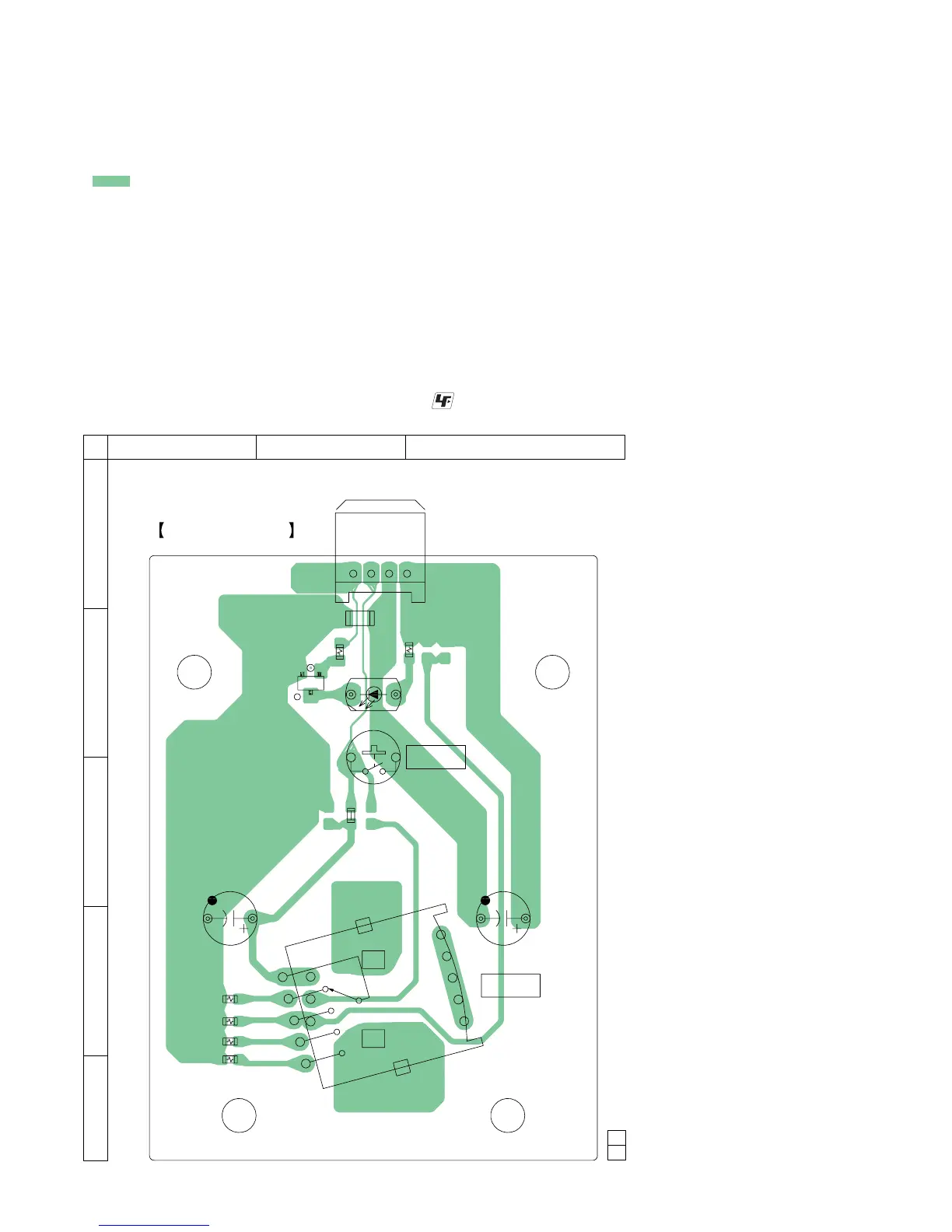

3-1. PRINTED WIRING BOARD (SS-WGV100D)
: Uses unleaded solder.
R1401
R1402
R1403
R1404
Q1400
R1405
R1406
JR1402
JR1400
D1400
S1400
C1400
CN1400
SW1400
C1401
SW1400
E
1-868-600-
11
(11)
SWPANEL BOARD
SUBWOOFER
ON/OFF
SUBWOOFER
LEVEL
14
TO
HCD-ZX100D
–12dB
–6dB
–3dB
0dB
r
r
r
A
B
C
D
E
1 2 3
